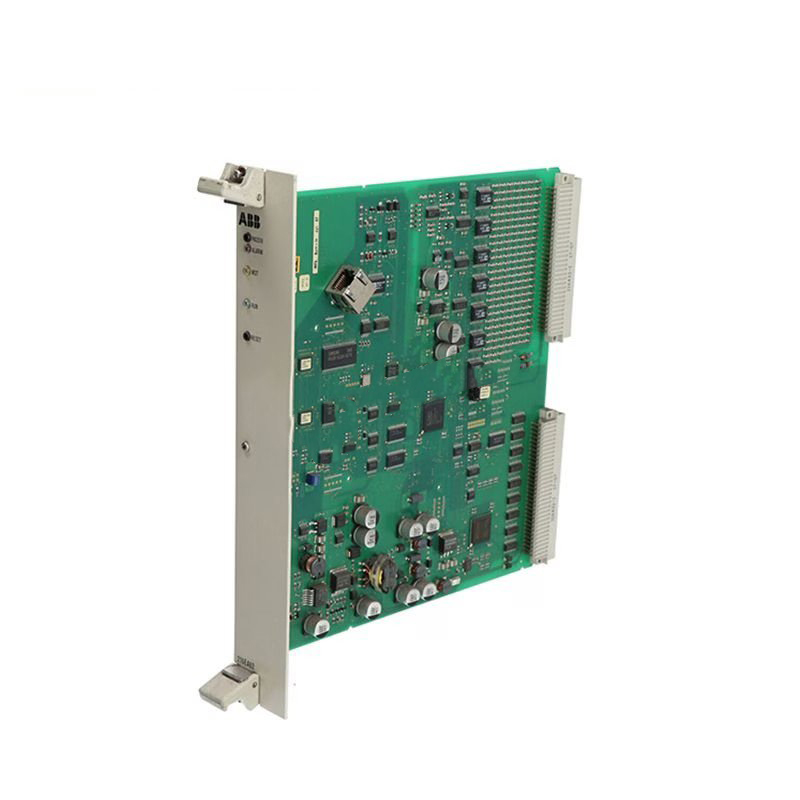

The ABB 216EA62 Analog Input Unit delivers fast, accurate analog signal acquisition for industrial automation systems. It integrates seamlessly with ABB REG216 and REG216 Classic numerical generator protection relays. The unit ensures reliable monitoring and control in harsh environments due to its rugged design and wide temperature tolerance.

Technical Specifications

• Number of Inputs: 24 analog inputs, sampled in 6-channel groups
• Sampling Frequency:
  • 600 Hz for 50 Hz power systems
  • 720 Hz for 60 Hz power systems
• Voltage Range: 0–10 V DC
• Current Range: 4–20 mA
• Communication Interface: RS485
• Operating Temperature: -40°C to +85°C
• Protection Rating: IP65
• Rack Space: Occupies two rack divisions
• Weight: 0.36 kg
