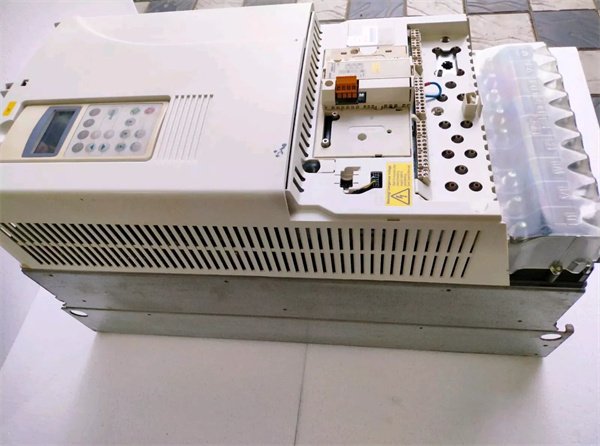

ABB ACS800-104-0016-3+N682+Q967 Industrial AC Drive Package
Manufacturer:ABB
Product Number:ABB ACS800-104-0016-3+N682+Q967
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB ACS800-104-0016-3+N682+Q967 is a complete industrial drive package combining ABB’s ACS800-16kW drive with essential accessories for immediate deployment. This configuration includes the N682 brake chopper module for dynamic braking and Q967 EMC filter for electromagnetic compatibility, making it particularly suitable for applications requiring rapid deceleration and clean power characteristics.
As part of ABB’s flagship ACS800 series, this drive system delivers superior motor control through advanced Direct Torque Control (DTC) technology, providing precise speed and torque regulation without needing encoder feedback. The package is engineered for demanding industrial environments, offering reliable performance in material handling, process control, and other automation applications.
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB ACS800-104-0016-3+N682+Q967 |
| Manufacturer | ABB |
| Product Category | Industrial AC Drive Package |
| Power Rating | 16 kW (22 HP) |
| Input Voltage | 3-phase 380-480V AC (±10%) |
| Output Current | 35 A |
| Frequency Range | 0-300 Hz |
| Control Method | DTC (Direct Torque Control) |
| Protection Class | IP21 (standard) |
| Communication | Built-in Modbus RTU, optional PROFIBUS DP |
| Cooling Method | Air-cooled |
| Package Includes | Drive unit + N682 Brake Chopper + Q967 EMC Filter |
| Dimensions (W×H×D) | 225×390×220 mm |
| Weight | 16 kg |
| Certifications | CE, UL, cUL |
Core Advantages and Technical Highlights
Advanced Motor Control:
DTC technology provides ±0.1% speed control accuracy
Full torque at zero speed for demanding applications
Automatic motor adaptation for optimal performance
Complete Braking Solution:
Integrated N682 brake chopper enables safe dynamic braking
Handles regenerative energy during rapid deceleration
Protects drive from overvoltage conditions
EMC Compliance:
Q967 EMC filter ensures compliance with industrial standards
Reduces electrical noise interference with sensitive equipment
Suitable for installations with strict EMI requirements
User-Friendly Features:
Assisted start-up routine for quick commissioning
Multilingual control panel with intuitive interface
Application-specific macros for common industrial uses
Typical Application Scenarios
The ABB ACS800-104-0016-3+N682+Q967 excels in:
Material Handling Systems:
Conveyor belt drives requiring frequent starts/stops
Crane and hoist applications with regenerative braking
Pump and Fan Control:
Energy-saving applications in HVAC systems
Process control in water treatment plants
Packaging Machinery:
High-speed filling and labeling machines
Web tension control applications
Machine Tools:
Spindle drives requiring smooth operation
CNC equipment with strict EMC requirements
Food Processing:
Hygienic production lines with washdown requirements
Mixer and conveyor applications
Installation and Commissioning
Installation Preparation:
Verify electrical supply matches drive specifications
Ensure adequate clearance (minimum 100mm) for ventilation
Properly ground all components according to ABB guidelines
Commissioning Steps:
Complete mechanical installation
Run assisted start-up routine
Configure motor parameters using autotuning
Test brake chopper functionality
Verify EMC performance
Maintenance Recommendations:
Regularly clean cooling fins and check fan operation
Monitor DC bus capacitor health via diagnostics
Tighten power connections annually
Maintain log of operating parameters
Service and Warranty
ABB provides:
3-year standard warranty
Global 24/7 technical support
Firmware update services
On-site commissioning assistance
Comprehensive documentation
This complete drive package represents ABB’s commitment to reliable industrial automation, combining high-performance motor control with essential accessories for immediate system integration.
