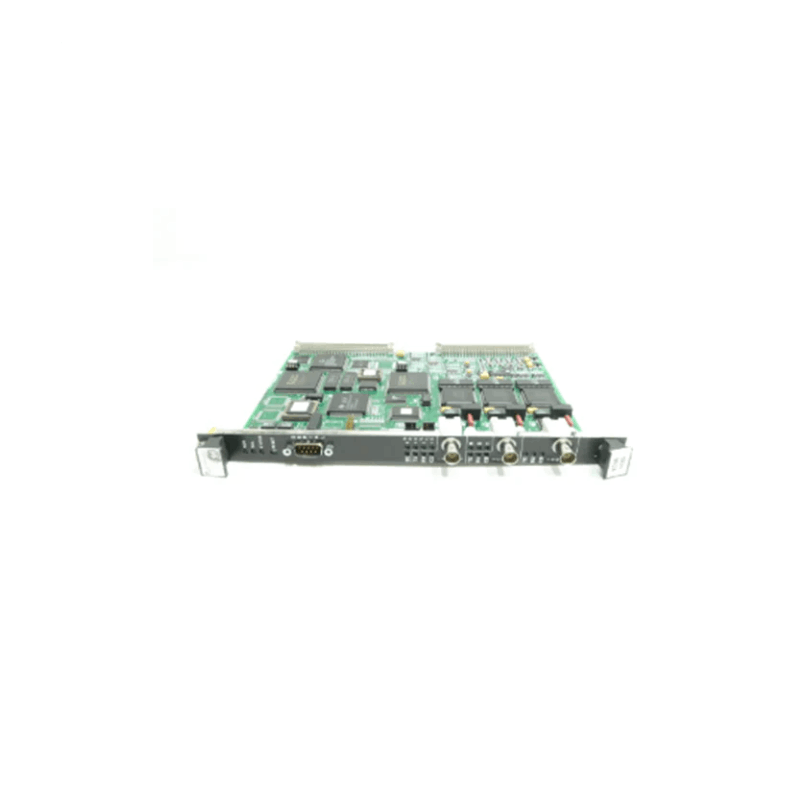

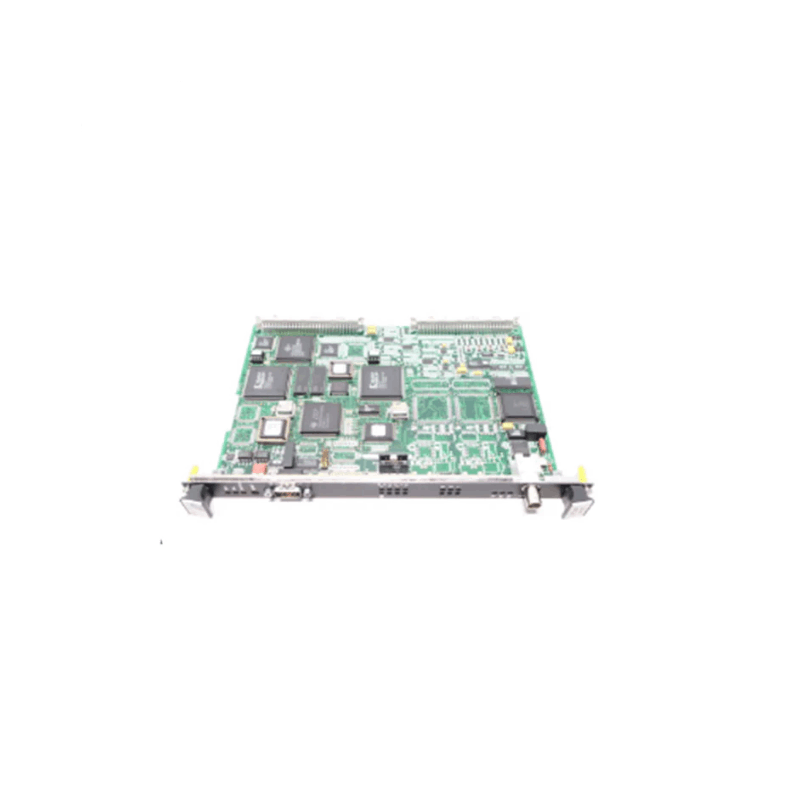

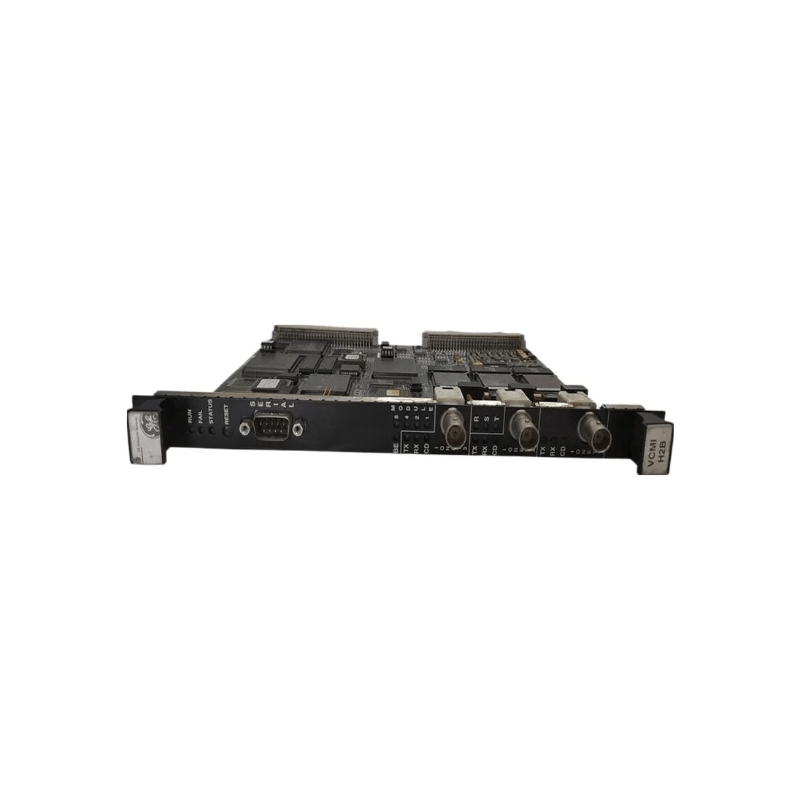

General Electric IS200VCMIH2BCC bus master controller board developed Module

The GE IS200VCMIH2BCC is part of the Mark VIe series of control products, used in industrial control systems to facilitate advanced automation and equipment monitoring. This particular module is designed for controlling and monitoring communications between various components within a distributed control system. It forms a vital part of the system’s operational capabilities, integrating seamlessly with other GE products to ensure optimal performance and reliability.

This VCMI (Vital Communication Module Interface) provides a robust communication interface in highly demanding industrial environments. It enables secure, high-speed communication between the system’s controllers, ensuring that all equipment and processes run smoothly without data loss or interruption. The VCMI module supports various types of data protocols, ensuring compatibility with a wide range of industrial systems.

Key Features

• Communication Interface: Facilitates communication between controllers, I/O modules, and other critical control devices in the system.
• High-speed Data Transmission: Enables fast, reliable communication in real-time with minimal latency.
• Redundancy Support: Designed to ensure high availability and operational continuity through redundancy features, minimizing the risk of system failure.
• Compatibility: Works with other GE Mark VIe and related control equipment for enhanced system integration.
• Environmental Durability: Built to withstand the challenging conditions of industrial environments, such as temperature extremes, vibrations, and electromagnetic interference.
• Product Specifications
• The following table provides the detailed technical specifications for the GE IS200VCMIH2BCC module:

Parameter Specification

• Product Model IS200VCMIH2BCC
• Type Vital Communication Module Interface
• Manufacturer General Electric (GE)
• Application Industrial Control Systems
• Dimensions 160mm x 100mm x 30mm
• Weight 0.45 kg
• Input Voltage 24V DC
• Operating Temperature -40°C to +70°C (storage: -40°C to +85°C)
• Humidity 5% to 95% non-condensing
• Communication Protocol Supports various protocols including Ethernet, Modbus, and proprietary GE protocols
• Mounting Standard DIN Rail Mountable
• LED Indicators Yes (Power, Status, Communication)
• Redundancy Support Yes (Dual-Port Ethernet, Redundant Power Inputs)
• Certifications UL, CE, CSA
• Part Number IS200VCMIH2BCC

Detailed Description

The GE IS200VCMIH2BCC module is specifically designed for high-performance, high-reliability communication within industrial control systems. Its primary function is to enable seamless communication between control units and other system components, ensuring that all parts of the system remain synchronized and fully operational at all times.

One of the key features of this module is its redundancy support. In an industrial environment, uptime is critical, and the IS200VCMIH2BCC ensures system availability by supporting dual-port Ethernet communication. This allows for automatic switching between communication paths in the event of a failure, minimizing downtime and ensuring continuous system operation.

Furthermore, the module is designed with environmental durability in mind. It can operate in harsh industrial environments, with an extended temperature range of -40°C to +70°C. This makes it suitable for a variety of applications in industries like power generation, oil and gas, manufacturing, and other sectors where robust performance under tough conditions is a must.

The compact design of the module, allows it to fit easily into standard control cabinets. The weight of 0.45 kg ensures that the module is not overly heavy for integration into various system architectures.

Conclusion

In summary, the GE IS200VCMIH2BCC is a reliable and high-performance communication interface designed for demanding industrial environments. Its versatility, ease of integration, and high level of redundancy make it an ideal choice for industrial control systems requiring continuous and reliable data communication.
