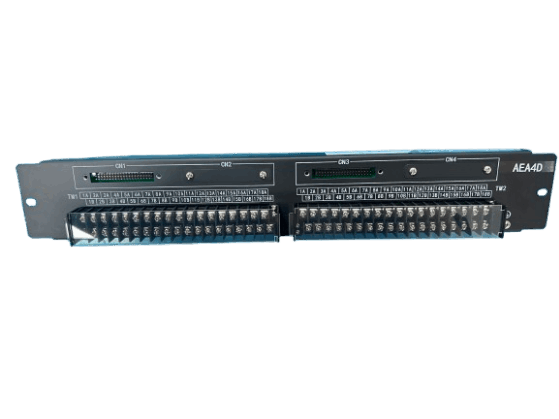

Yokogawa AEA4D-05 Terminal Board For Analog
Item Number:AEA4D-05
Brand: Yokogawa
Lead Time: In stock
Description:Terminal Board for Analog (single and dual-redundant, 16-channel)
Payment: T/T
Product Description
Yokogawa AEA4D-05 is a terminal board designed by Yokogawa Electric for analog signals. It has single-channel and dual-redundant modes and has 16 channels. It is an I/O module for Yokogawa's advanced control system, used to connect field devices and I/O modules, and can be used for analog signal acquisition in chemical process control, system redundant analog monitoring, etc.
Note
Ensure that the dual-channel wiring is consistent when configuring redundancy
It is recommended to use Yokogawa's original KS adapter
Fuctions & Features
- Wiring options: AEA4D-05 can be connected through terminals, connected to terminal blocks with the help of KS cable interface adapters, or connected to I/O modules using customer-provided MIL cables.
- Configuration: 16 channels can be configured, supporting analog input (voltage, current), discrete digital input, analog output (voltage, current) and other signal types.
- Adapter modules:AEA4D-05 is compatible with Yokogawa AAI143/AAR145 and other analog I/O modules.
Model and Configuration Options
|
Model |
Suffix Code |
Description |
|
AEA4D |
-0 |
Without surge absorber |
|
5 |
Basic type (no explosion protection) |
|
|
6 |
With ISA Standard G3 option (no explosion protection) |
|
|
E |
Basic type with explosion protection |
|
|
F |
With ISA Standard G3 option and explosion protection |
|
|
Option Code |
/NTRY |
Without cable tray |
Technical Specifications
|
Parameter |
Specification |
|
Rated Voltage |
250V AC/DC |
|
Wire Capacity |
0.5-2.5mm² |
|
Operating Temperature |
-20 to 60°C |
|
Protection Class |
IP20 (IP40 when installed) |
