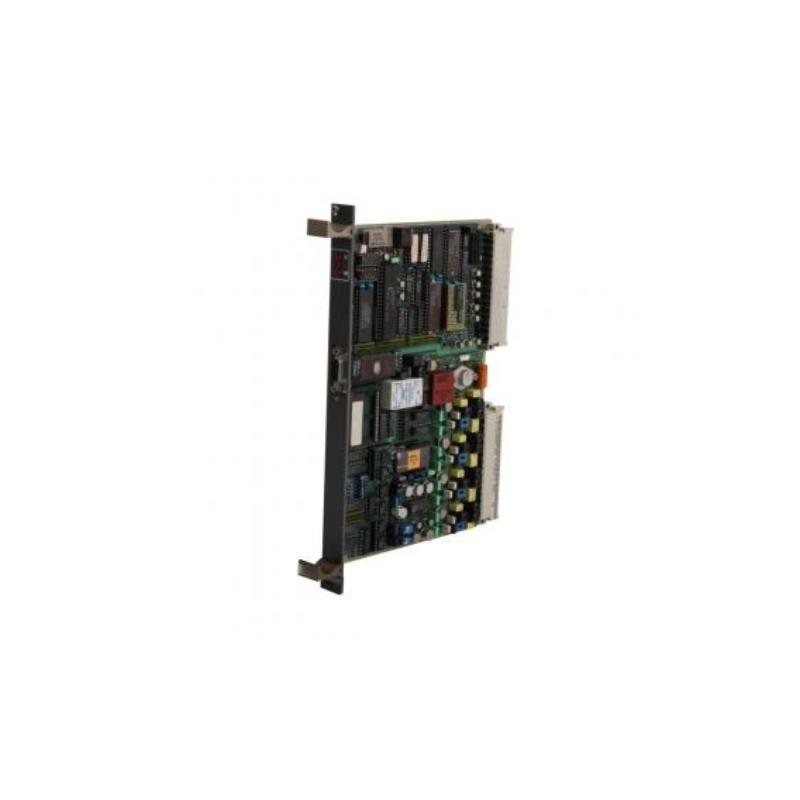

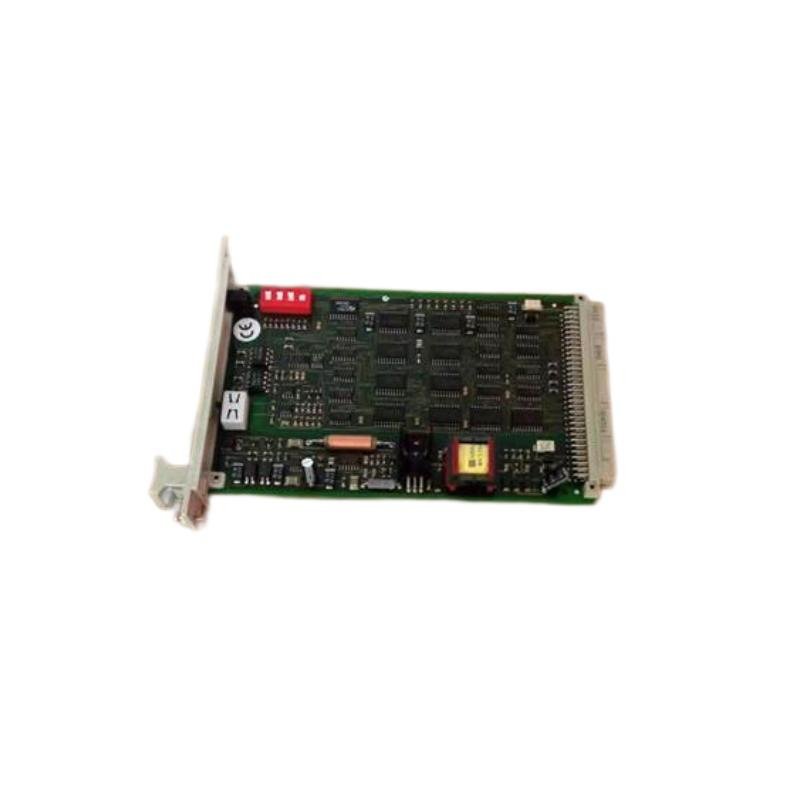

Hima F1201 4x Relay Amplifier Module
Manufacturer:HIMA
Product Number:F1201
Condition:New & In Stock
Product Type:4x Relay Amplifier Module
Origin:Germany
Payment Methods:T/T, Western Union
Dimensions:152 x 120 x 75mm
Weight:1.2 kg
Shipping Port:Xiamen, China
Lead Time:1-3 Working Days
Warranty:One Year
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Product Description
The HIMA F1201 is a high-performance 4-relay amplifier module, designed specifically for signal amplification and control in industrial automation systems. This module is capable of amplifying weak electrical signals and driving high-power loads, making it ideal for applications that require signal enhancement or conversion. The F1201 relay amplifier is particularly well-suited for industrial control systems, providing increased signal range, improved control capacity, and faster system response times.
The F1201 module features excellent signal processing capabilities, supporting a variety of input and output signal formats, making it compatible with different types of devices and sensors. It has been rigorously tested to ensure stable and reliable performance in complex industrial environments. Whether in high temperature, high humidity, vibration, or environments with strong electromagnetic interference, the F1201 continuously provides stable signal amplification and control functionality.
Key Features
- 4x Signal Amplification: The F1201 module amplifies the input signal by a factor of four, significantly enhancing signal strength and stability.
- High Reliability: Rigorously tested to operate reliably in harsh environments such as high temperatures and humidity, suitable for extreme industrial environments.
- Wide Compatibility: Supports various types of input and output signals, including digital signals, relay drive signals, and analog signals, meeting diverse control requirements.
- Fast Response: The F1201 relay amplifier has a very short response time, allowing quick responses to control signals for rapid system reaction.
- Strong Anti-interference: It possesses strong electromagnetic immunity, ensuring proper signal transmission in complex electromagnetic environments.
- Easy Installation and Maintenance: The module uses standard DIN rail mounting, making installation easy and maintenance convenient, suitable for most industrial automation control systems.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | F1201 |
| Input Signal Types | Digital signals, relay drive signals |
| Output Signal Types | Amplified digital signals, relay drive signals |
| Input Voltage | 24V DC (Typical) |
| Output Voltage | 0V to 24V DC |
| Max Output Current | 2A (per channel) |
| Response Time | ≤ 10 ms |
| Power Consumption | Approx. 3W |
| Dimensions | 152 x 120 x 75mm |
| Weight | 1.2kg |
| Temperature Range | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% Relative Humidity, Non-condensing |
| Protection Class | IP20 |
| Mounting Type | DIN Rail Mounting |
| Electromagnetic Compatibility | EN 61000-6-2, EN 61000-6-4 |
| Max Input Current | 20mA |
| Max Input Voltage | 10V DC |
| Max Relay Load | 250V AC / 30V DC |
| Isolation Level | 500V AC |
Application Areas
- Industrial Automation Control Systems: The F1201 module is widely used in industrial automation control systems to enhance the strength and stability of control signals.
- Mechanical Equipment Control: In machinery, the F1201 effectively enhances the signal drive capability, ensuring reliable operation of mechanical systems.
- Safety Systems: Used in safety monitoring systems to ensure timely response to safety alarms by amplifying signals.
- Power Systems: In power systems, the F1201 is used to amplify relay control signals, ensuring accurate control of power equipment.
- Transportation Systems: Suitable for traffic control systems, enhancing signal drive capability to improve system response speed.
