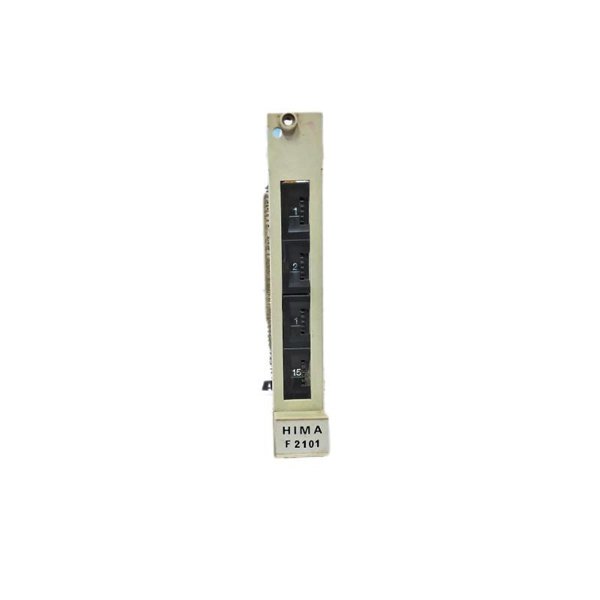

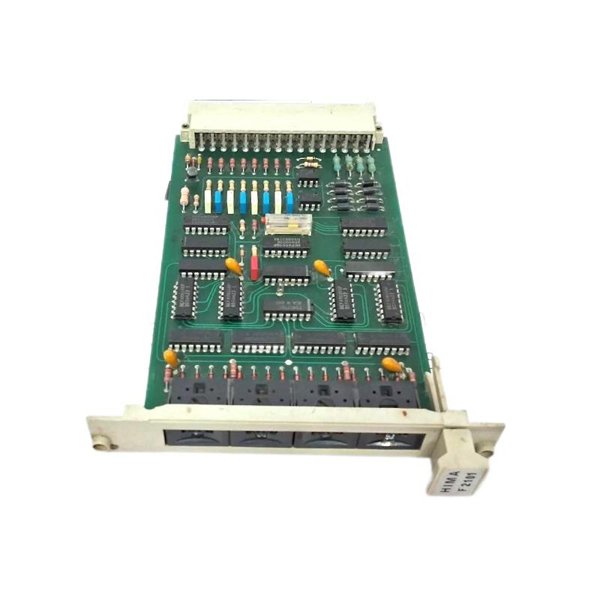

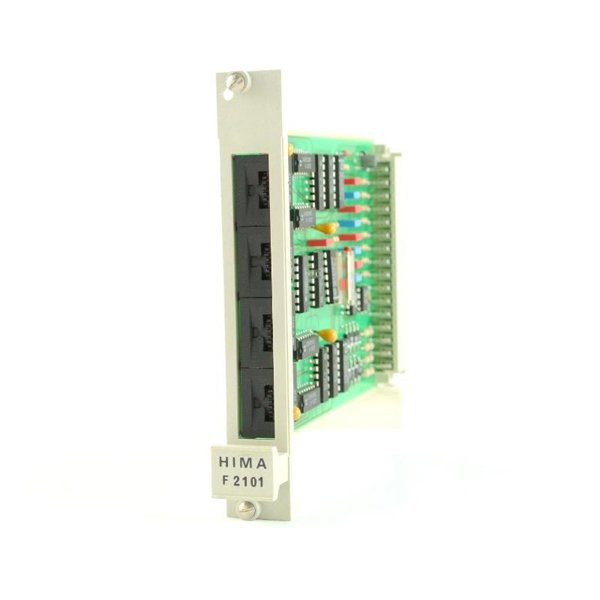

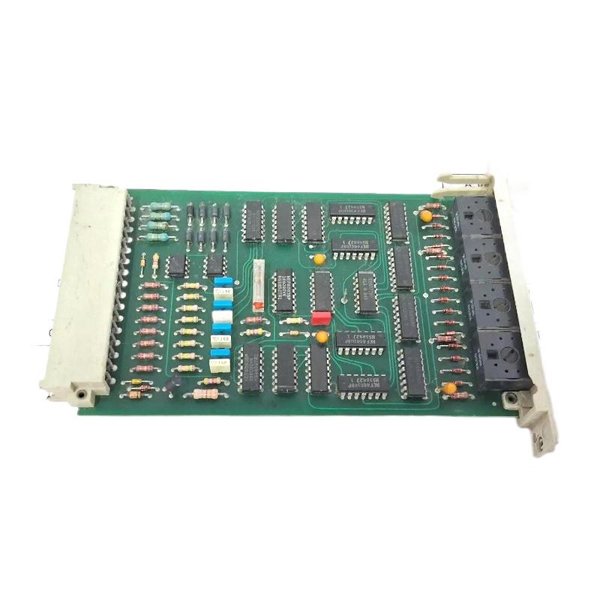

Hima F2101 4x Relay Amplifier Module

The HIMA F2101 4x Relay Amplifier Module is a robust and highly reliable component designed for use in safety-critical applications within industrial control systems. This module is part of the HIMA F2000 series, known for its high-quality safety solutions and outstanding performance in demanding environments. The F2101 module is used primarily for interfacing with external relays to control various safety processes and ensures efficient signal amplification in safety instrumented systems (SIS).

With a high degree of reliability, the F2101 4x Relay Amplifier Module plays an essential role in improving the reliability and safety of industrial processes. It features four independent relay outputs, allowing for highly flexible and scalable configuration options. The module is designed to interface with other components in the HIMA F2000 system, ensuring superior fault tolerance and system integrity in environments requiring high operational safety standards, such as chemical plants, power generation facilities, and oil & gas platforms.

Product Specifications

Here is a detailed specification table for the HIMA F2101 4x Relay Amplifier Module:

Product Applications

The HIMA F2101 4x Relay Amplifier Module is ideal for safety-critical systems across various industries where reliable control and redundancy are paramount. Key applications include:

• Process Safety Systems (SIS): Used for controlling and monitoring processes in industries such as oil & gas, petrochemicals, and power generation.
• Emergency Shutdown Systems (ESD): Ensures safety in hazardous environments by shutting down critical processes in case of an emergency.
• Control of External Relays: Interfacing with external relays to drive alarms, shutdown valves, and other safety devices.
• Industrial Automation: Integrated into automated safety systems for industrial machinery and plant equipment.
• Fire and Gas Detection Systems: Enhances the control and activation of safety relays in response to fire or gas leak detection.
• Safety Instrumented Systems (SIS): Plays a crucial role in maintaining system integrity by ensuring proper operation of critical relays.

Product Advantages

The HIMA F2101 4x Relay Amplifier Module offers several distinct advantages that make it an ideal choice for critical safety applications:

1. High Reliability – Designed to work in demanding environments, the F2101 offers superior durability and fault tolerance.
2. Flexible Configuration – Provides four independent relay outputs, allowing for customized configurations tailored to specific control requirements.
3. Form C Relay Outputs – Supports both normally open (NO) and normally closed (NC) contacts, offering versatile control options.
4. Compact Design – Its small form factor allows easy integration into space-constrained installations without compromising performance.
5. High-Quality Isolation – Ensures proper electrical isolation between inputs and outputs, preventing faults from propagating through the system.
6. Cost-Effective – Offers a reliable and cost-effective solution for industrial safety systems.
7. Real-Time Signal Amplification – Ensures strong and accurate relay outputs for enhanced system response times.
8. Wide Operating Temperature Range – Suitable for use in a variety of environments, from -20°C to +60°C.
9. Compliant with International Standards – Certified to international standards such as CE, UL, CSA, and ATEX, ensuring safety and reliability.
10. Proven Track Record – The HIMA F2000 series is recognized worldwide for its high-performance safety solutions in mission-critical applications.
