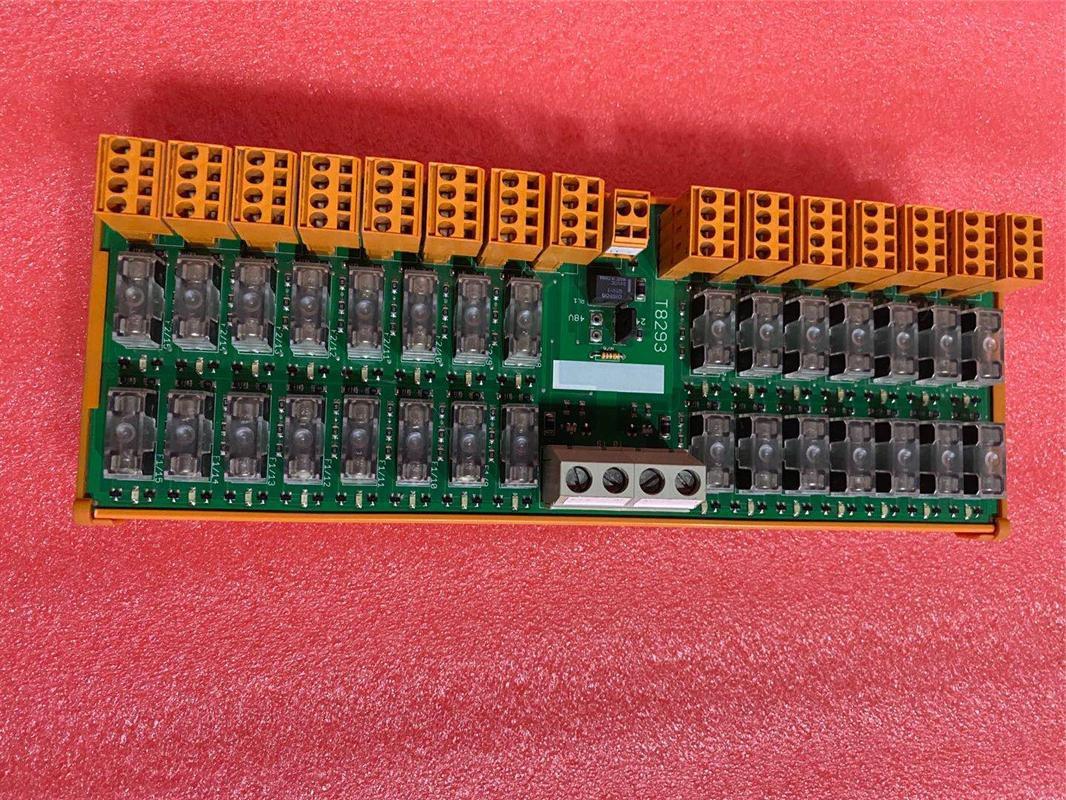

ICS Triplex T8293 Trusted Power Distribution Unit
Item Number: T8293
Brand:ICS Triplex
Price:$1
Lead Time: In stock
Description: Trusted Power Distribution Unit
Payment: T/T
Product Description
ICS Triplex T8293 is a 15-way fused Trusted® power distribution unit that provides 15 dual-redundant fused power outputs from dual-redundant 24 Vdc or 48 Vdc input power feeds.
The unit's onboard monitoring circuitry provides indication of individual fuse failure via local light-emitting diodes (LEDs) (red LED illuminates) and a common fuse failure alarm signal via volt-free relay contact outputs.
Function & Features
- The T8293 features 15 dual 24 VDC or 48 VDC, 3.15 A fuse-protected outputs suitable for direct connection to Trusted Field Terminal Assemblies (FTAs) or other devices.
- The T8293 provides common alarming of fuse status via volt-free contacts. When a fuse fails, the contacts open and can be connected to an external alarm monitoring circuit.
- The T8293 supports link-selectable supply voltages, which are distributed via 30 fuses organized into two groups of 15 each.
- The T8293 outputs are fed through 15 terminal blocks (labeled T1 to T7 and T11 to T18), each sharing a common 0 V reference point.
Specifications
|
Category |
Details |
| Model | T8293 |
|
Voltage Range |
22–30 Vdc or 43–60 Vdc (link selectable) |
|
Supply Current |
23 A max |
|
Fuse Outputs |
30-off 3.15 A fast blow 5x20 mm cartridge arranged in two banks of 15 |
|
Max Relay Contact Switching Voltage |
60 Vdc or 125 Vac |
|
Max Relay Contact Switching Current |
0.5 A |
|
Input Connection |
LU10.16 screw clamp terminal |
|
Input Connection Conductor Clamping Range |
0.5 mm² to 16 mm² |
|
Output Connector |
BLZ two - part terminal |
|
Output Connector Conductor Clamping Range |
0.5 mm² to 2.5 mm² |
