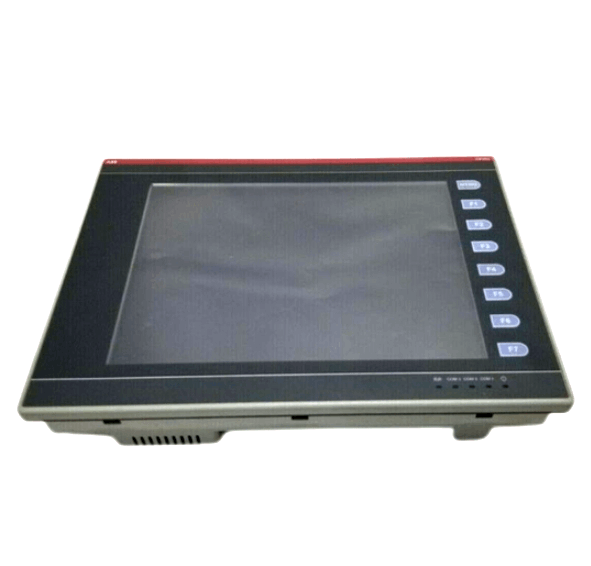

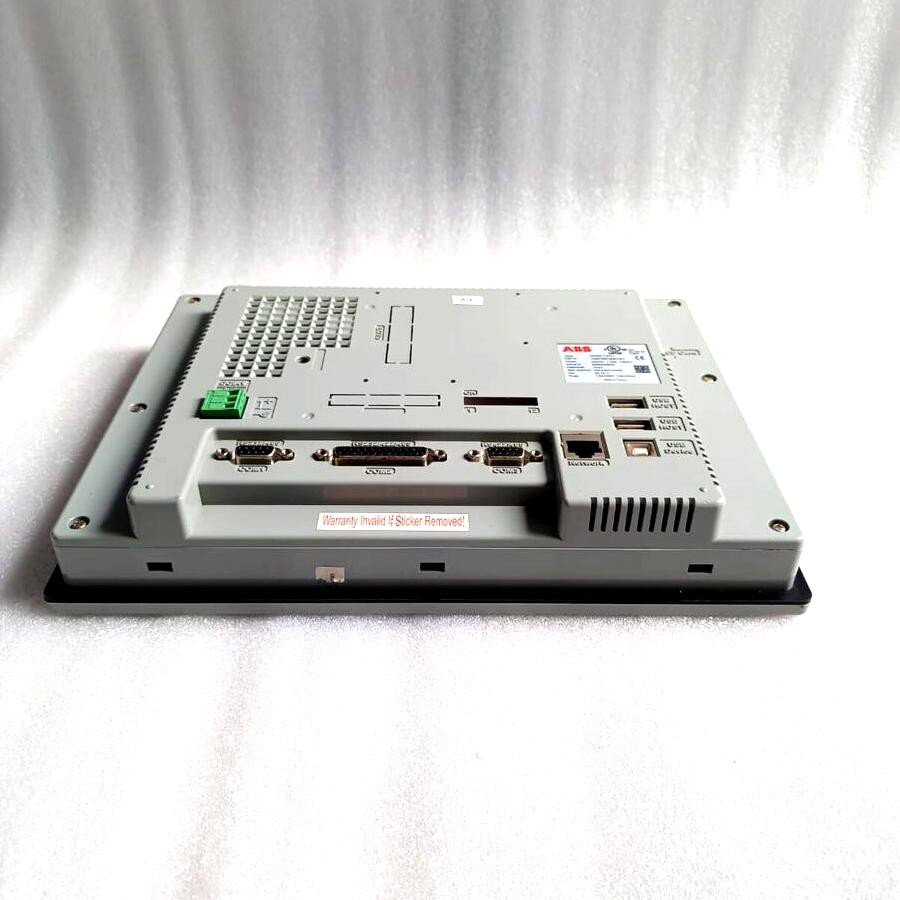

ABB CP450T 1SBP260188R1001 Control Panel 10.4” TFT Touch Screen
Item Number:CP450T 1SBP260188R1001
Brand:ABB
Lead Time: In stock
Description:Control Panel 10.4” TFT Touch screen
Payment: T/T
Product Description
ABB CP450T 10.4" TFT touch screen control panel is an industrial-grade human-machine interface (HMI) equipped with a 10.4-inch high-resolution color touch screen, 640×480 resolution, 64K colors, resistive touch screen + 7 programmable function keys, and IP65/NEMA 4X protection level.
It is designed for industrial automation scenarios that require advanced visual control. As a high-end model of the CP400 series, it provides more powerful display and operation functions than the CP410M.
Fuctions & Features

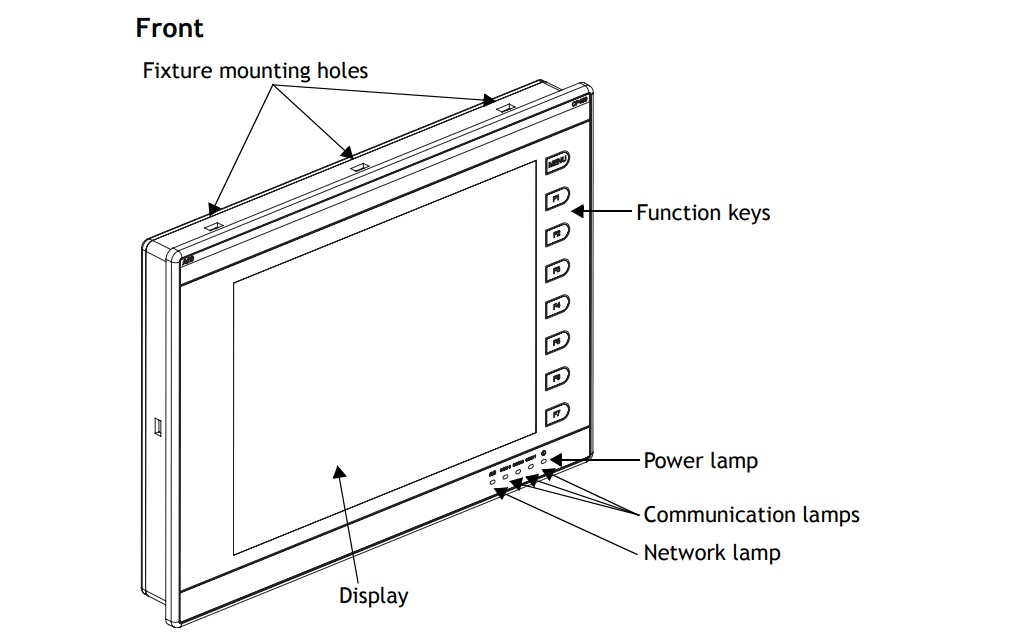

Display and interaction:
▶ 64K color display, clear picture and rich colors;
▶ Touch + button dual operation mode, suitable for operation with gloves
▶ 1 main menu key + 7 custom keys, quick call of common functions

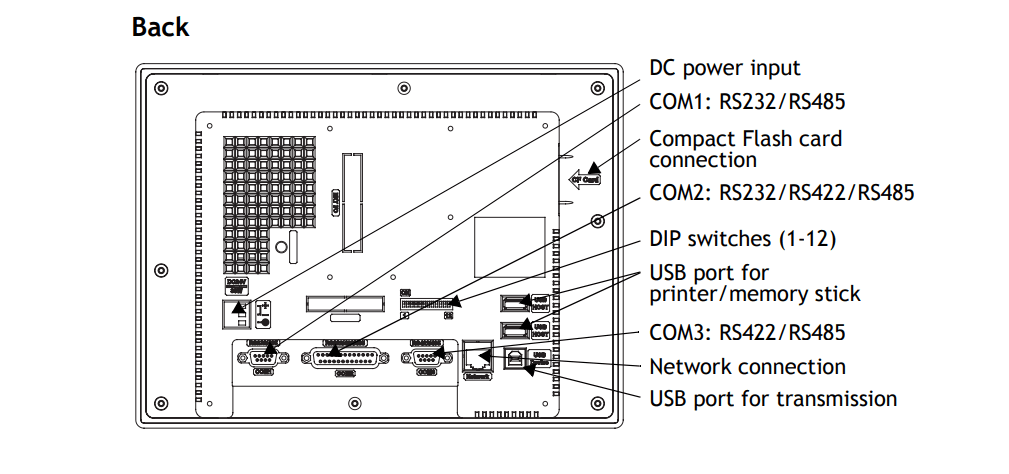

▶ The standard interface is RS232/RS485, supporting Modbus RTU protocol
▶ Optional modules PROFIBUS DP, Ethernet
▶ Shielded cable requires that the communication line must be isolated from the power line
Double grounding protection:
▶ Independent grounding wire (≥2mm²/AWG14)
▶ Grounding resistance <100Ω (Class3 standard)
▶ Direct control of safety circuit is prohibited (such as emergency stop function needs to be implemented through PLC)
Specifications
|
Parameter |
Value |
|
Front panel, W x H x D |
297.0 x 222.0 x 9.0 mm |
|
Mounting depth |
51.6 mm |
|
Cut - out dimensions |
286.0 x 211.0 mm |
|
Front panel protection |
IP 65/NEMA 4X (indoor use only) |
|
Weight |
1.69 kg |
|
USB Host |
2 ports |
|
USB Device |
1 port |
|
Flash ROM |
8 MB |
|
RAM |
16 MB |
|
CPU |
32 - bit RISC |
|
Battery backed memory |
512 KB |
