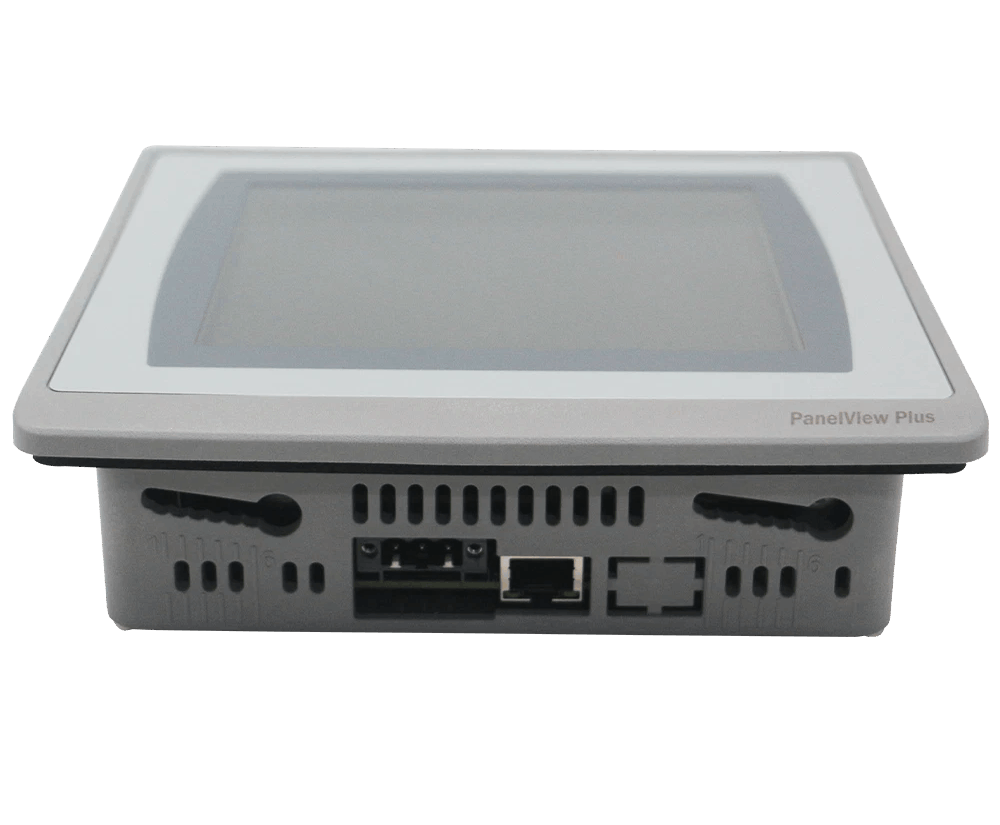

Allen-Bradley 2711P-T6C21D8S PanelView Plus 7 Standard Terminal
Item Number:2711P-T6C21D8S
Brand: Allen-Bradley
Lead Time: In stock
Description:PanelView Plus 7 Standard Terminal
Payment: T/T
Product Description
Allen-Bradley 2711P-T6C21D8SPanelView Plus 7 Standard Terminal is an industrial-grade human-machine interface (HMI) for monitoring and controlling devices connected to ControlLogix® 5570 and CompactLogix™ 5370 controllers over an EtherNet/IP™ network. With animated graphics and text displays, the operating status of the machine or process is presented to the operator, who interacts with the control system through touch screen inputs.
Function & Features
- Screen size: 2711P-T6C21D8S is available in 4", 6", 7", 9", 10", 12", 15", and some models support widescreen display (4", 9", 12").
- High resolution: Improves visual clarity and supports complex graphical interfaces.
- Brand customization: The terminal can be unbranded, allowing customers to affix their own labels.
- Development environment: FactoryTalk® View Machine Edition, 2711P-T6C21D8S provides intuitive HMI application development tools.
- Function expansion: 2711P-T6C21D8S has a built-in PDF reader, which can directly view documents stored in the terminal.
Specifications
|
Category |
Item |
Details |
| Model | 2711P-T6C21D8S | PanelView Plus 7 Standard Terminal |
|
Electrical |
Input voltage, DC |
24V DC nom (18...30V DC), nonisolated DC power supply |
|
Power consumption, DC |
35 W max (1.46A at 24V DC) |
|
|
AC-to-DC, 85...265V AC, 47...63 Hz Recommended Replacement: Allen - Bradley part number 2711P-RSAC DIN |
||
|
Mechanical |
Weight, approx |
0.44 kg (0.97 lb) 0.70 kg (1.53 lb) |
|
Dimensions, HxWxD, approx. |
110 x 135 x 56.5 mm (4.33 x 5.31 x 2.22 in.) 152 x 176 x 56.5 mm (5.98 x 6.93 x 2.22 in.) |
|
|
Cutout dimensions, HxW, approx. |
92 x 117 mm (3.62 in. x 4.61 in.) 123 x 156 mm (4.84 x 6.14 in.) |
FAQ
Q: What is the brand?
A:Allen-Bradley
Q: What is the type?
A:HMI
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
