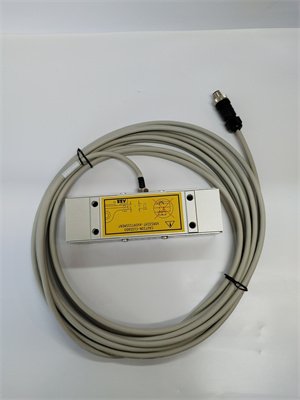

ABB PFTL301E-1.0KN Force Transducer

The ABB PFTL301E-1.0KN is a high-precision force transducer designed for industrial measurement and control applications. This robust device provides accurate force measurement up to 1.0 kilonewton with excellent linearity and repeatability. As part of ABB’s comprehensive measurement portfolio, the PFTL301E-1.0KN combines advanced strain gauge technology with rugged construction for reliable performance in demanding environments.Engineered for versatility, the ABB PFTL301E-1.0KN features both tension and compression measurement capabilities, making it suitable for diverse industrial applications. Its stainless steel construction and IP67 protection rating ensure long-term durability even in harsh conditions. The transducer’s standardized electrical interfaces simplify integration with PLCs, DCS systems, and data acquisition equipment across various automation platforms.

Detailed Parameter Table

Core Advantages and Technical Highlights

Precision measurement: The ABB PFTL301E-1.0KN delivers ±0.5% accuracy across its full measurement range, providing reliable data for process control and quality assurance. Advanced temperature compensation ensures stable performance throughout the operating temperature range.Robust construction: Manufactured from AISI 304 stainless steel, the transducer withstands industrial environments while maintaining measurement integrity. The IP67-rated enclosure protects against dust ingress and temporary water immersion.Versatile installation: With its compact design and standardized M12 connector, the ABB PFTL301E-1.0KN can be easily integrated into existing systems. The device supports both tension and compression measurements, offering flexibility in application design.Reliable outputs: The transducer provides industry-standard 4-20 mA and 0-10V DC output signals, ensuring compatibility with most control and monitoring systems. Electrical isolation protects against ground loops and interference.

Typical Application Scenarios

The ABB PFTL301E-1.0KN is widely used in:

Manufacturing automation: Monitoring press forces in assembly operations and verifying proper clamping forces in production fixtures.Material testing: Providing precise force measurement for quality control in product testing applications.Process industries: Measuring tension in web handling systems and monitoring mechanical loads in industrial machinery.Robotics: Force feedback applications in robotic assembly and material handling systems.Packaging lines: Verifying proper sealing pressures and monitoring mechanical forces in packaging equipment.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Ensure the mounting surface is clean and properly aligned to avoid side loads. Verify the load direction matches the application requirements (tension or compression). Check that all electrical connections comply with the specified voltage requirements.

Maintenance suggestions: Periodically inspect the transducer for physical damage or corrosion. Verify zero point calibration annually or as process requirements dictate. Keep electrical connections clean and protected from moisture. For optimal performance, avoid exceeding 150% of the rated capacity.

Service and Guarantee Commitment

ABB offers a 2-year warranty for the ABB PFTL301E-1.0KN, covering manufacturing defects and material faults. Global technical support is available through ABB’s network of service centers. Comprehensive documentation, including calibration certificates and installation guides, accompanies each unit. ABB provides traceable calibration services to ensure measurement accuracy throughout the product lifecycle.
