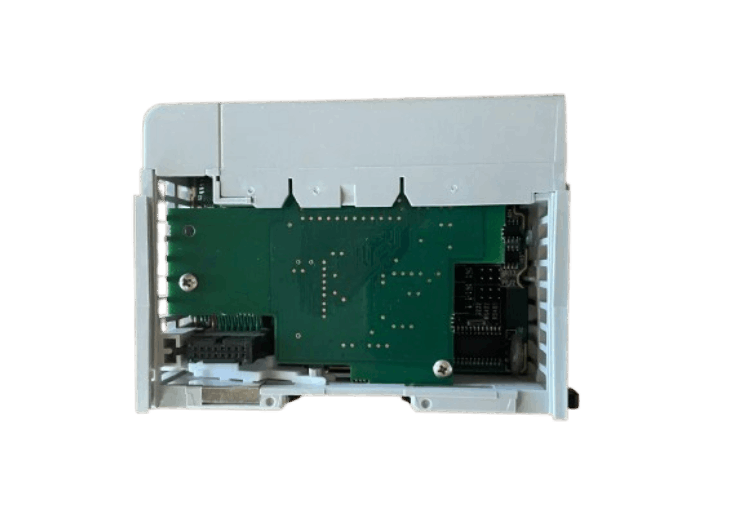

Allen-Bradley MVI69-MNET Modbus TCP/IP Communication Module
Item Number:MVI69-MNET
Brand: Allen-Bradley
Lead Time: In stock
Description:Modbus TCP/IP Communication Module
Payment: T/T
Product Description
Allen-Bradley MVI69-MNET Modbus TCP/IP Communication Module is a module for interfacing CompactLogix®/MicroLogix® processors with other Modbus TCP/IP protocol devices. The module is a single slot solution that acts as an input/output module between the Modbus TCP/IP network and the CompactLogix backplane, enabling data exchange between the processor and the network through the module's 5000 16-bit register data space.
Function & Features
- Large-capacity data storage: MVI69-MNET supports storage and transfer of up to 5000 registers of data to the PLC processor via a block transfer interface.
- Data mapping: MVI69-MNET maps all data from Modbus register 40001.
- Configurable client parameters: MVI69-MNET client parameters are configurable, including minimum response delay from 0 to 65535 milliseconds.
- Floating point data type support: MVI69-MNET supports floating point data types such as Enron, Daniels®, etc.
Specifications
|
Parameter |
Details |
|
Model |
MVI69-MNET |
|
Dimensions |
Standard 1769 single-slot module |
|
Current Load |
800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L5 installations on first 2 slots of 1769 bus) |
|
Operating Temp. |
0°C to 60°C (32°F to 140°F) |
|
LED Indicators |
Power and Module Status Application Status CFG Port Activity Ethernet Port Activity Error Status |
