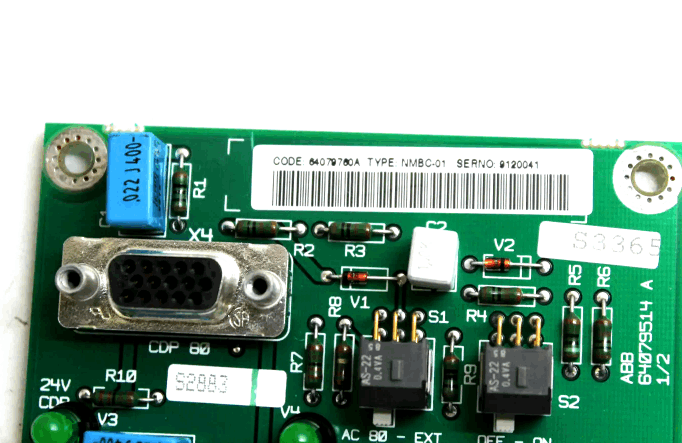

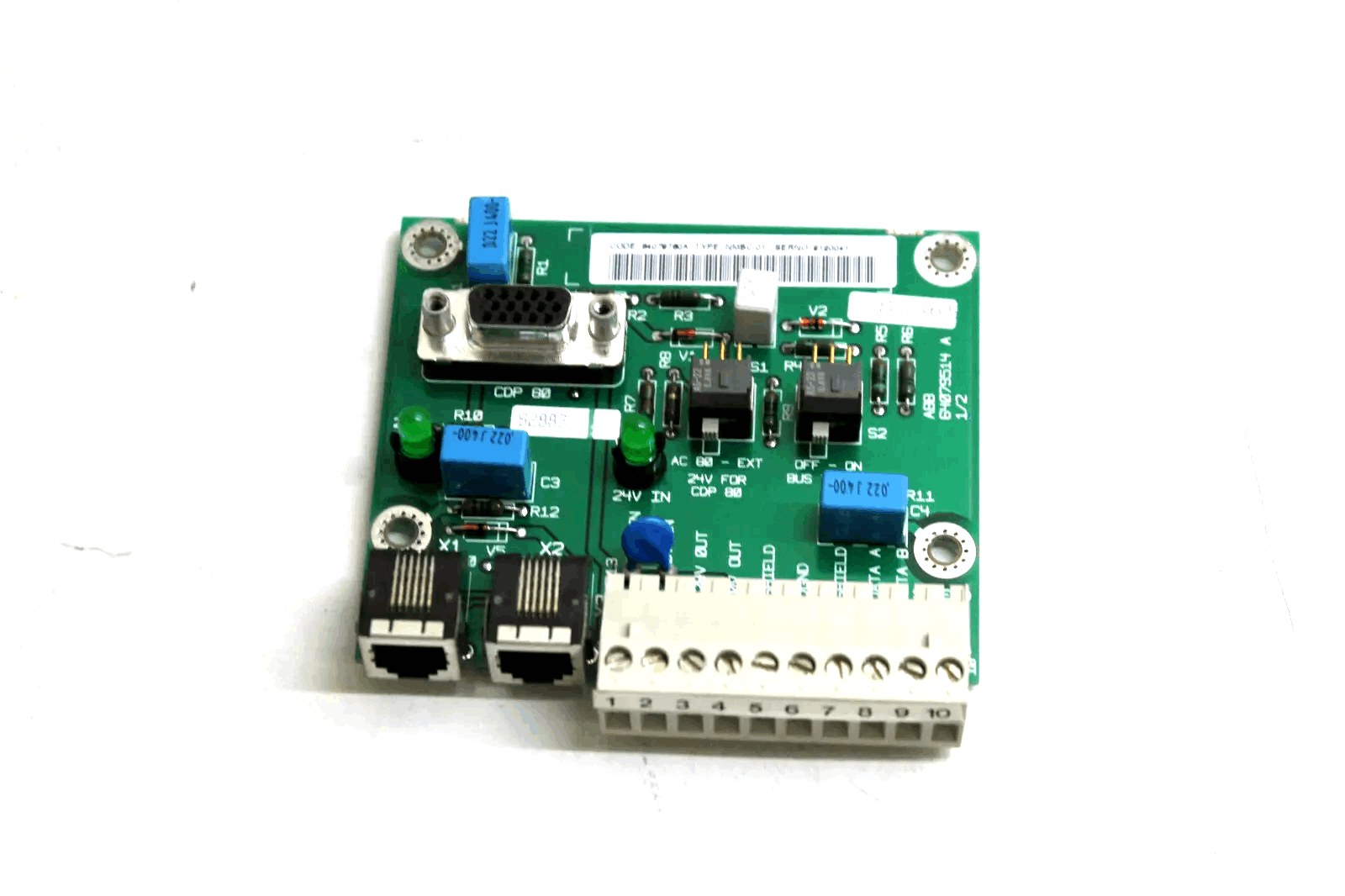

ABB NMBC-01 64079760B Modbus Connection Pcb Circuit Board
Item Number:NMBC-01 64079760B
Brand: ABB
Lead Time: In stock
Description:Modbus Connection Pcb Circuit Board
Payment: T/T
Product Description
ABB NMBC-01 64079760B Modbus connection PCB board is an optional device used to connect ABB drives to a Modbus system. The module enables the drive to operate as a slave in a Modbus network, supporting operations such as control command transmission, status information reading and parameter modification via the Modbus protocol. The module uses an RS-485 interface and is suitable for integration with Modicon PLCs or other automation equipment.
Drive Control
- Send control commands (such as start, stop, run enable, etc.).
- Provide motor speed or torque reference values to the drive.
- Supply process actual values or reference values to the drive's PID controller.
Data Reading and Parameter Modification
- Read status information and actual values from the drive.
- Modify drive parameter values.
- Reset drive faults.
Multi-Drive Control
Supports multi-drive control functionality.
Communication Interface
- Uses RS-485 physical interface and supports the Modbus protocol.
- The module emulates the behavior of a Modicon PLC in the Modbus network.
Specification
|
Specification |
Details |
|
Enclosure |
Plastic, dimensions 45 × 75 × 105 mm; protection degree IP 20 |
|
Mounting |
Onto a standard mounting rail |
|
Settings |
Via drive interface (control panel) |
|
Current Consumption |
65 mA at 24 V d.c. |
|
Connectors |
- Light transmitter (grey) and receiver (blue) (Hewlett - Packard Versatile Link) for connection to the drive - One Combicon MVSTBW 2,5/8 - ST - 5,08 (8 - pole, cross - section 2.5 mm² max.) screw terminal block for the fieldbus and power supply |
