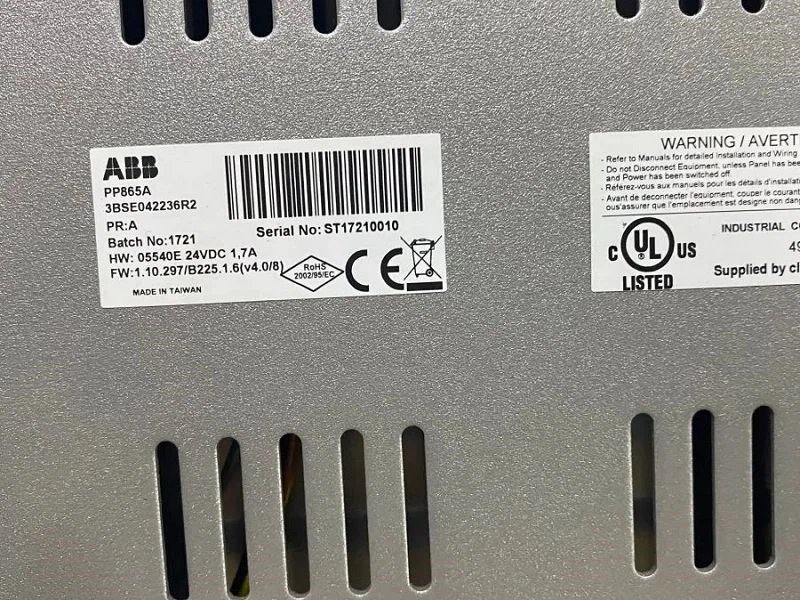

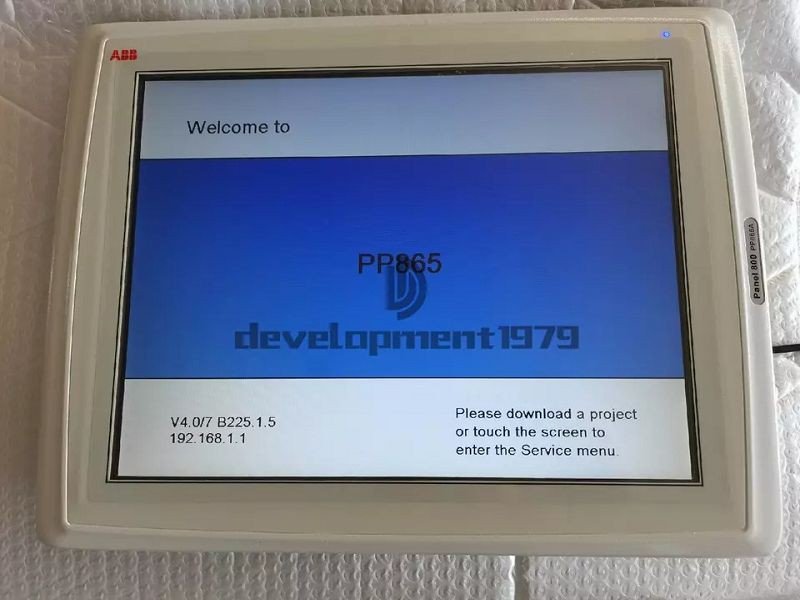

ABB PP865A 3BSE042236R2 Panel 800 Operator Panel
Item Number:PP865A 3BSE042236R2
Brand:ABB
Lead Time: In stock
Description:Panel 800 Operator Panel
Payment: T/T
Product Description
ABB PP865A 3BSE042236R2 Panel 800 operator panel is designed to improve human-machine communication in automation systems. It provides an interface for controlling and monitoring various automation processes, with built-in features such as dynamic indication, text display, alarm handling, recipe management and time-based functions.
The ABB PP865A supports text display, dynamic indication, alarm handling, recipe management and time channels. Configuration can be done through the Panel Builder 800 software tool on a personal computer, and the configuration is directly transferred and stored in the panel.
The Panel 800 can be connected to a variety of automation devices, such as programmable logic controllers (PLCs), servo motors or drives, which are collectively referred to as "controllers". This operator panel plays an important role in the human-machine interaction of automation systems through its rich functions and convenient configuration and connection methods.
Fuctions & Features
- Screen: Supports text display, dynamic indications, alarm handling, recipe management and time channels.
- Configuration: The operator panel is configured using the Panel Builder 800 software tool on a personal computer. Once the configuration is complete, it is directly transferred and stored in the panel.
- Connection: The Panel 800 can be connected to various types of automation equipment, such as PLCs, servo motors or drives. The generic term for such connected devices is called a "controller".
- Real-time clock battery: The panel is equipped with a rechargeable real-time clock battery to maintain the system time and other time-related functions in the event of a power outage.
specifications：
|
Specification |
Details |
|

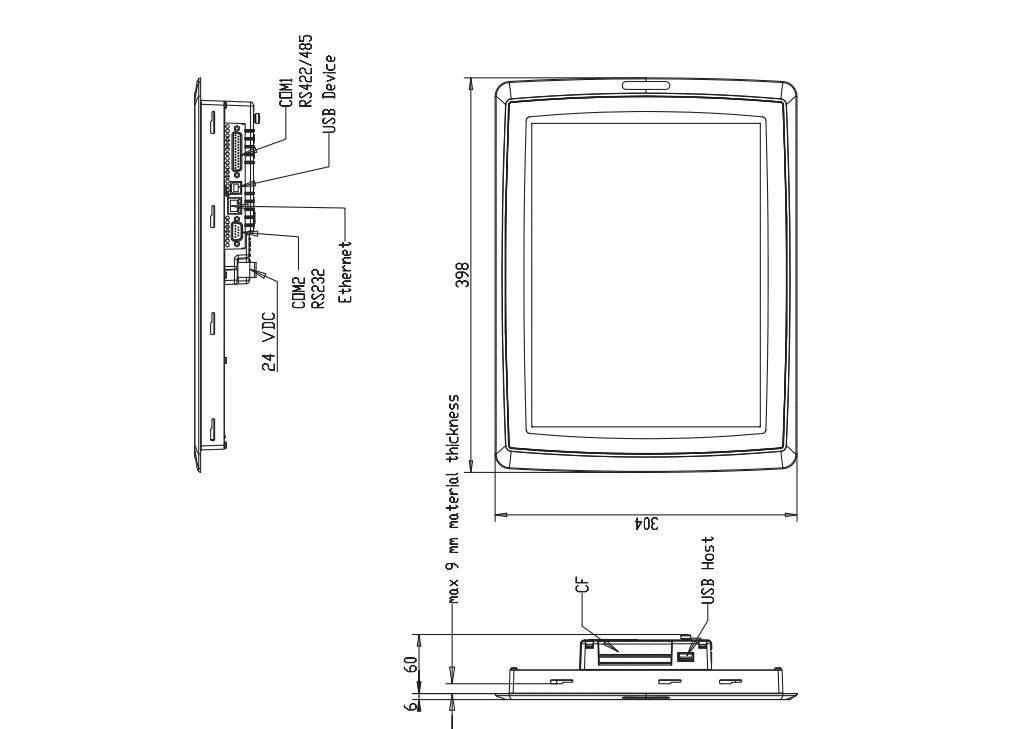

Front panel Dimensions (W x H x D) |
398 x 304 x 6 mm |
|
Mounting depth |
60 mm (160 mm including clearance) |
|
Front panel seal |
IP 66 |
|
Rear panel seal |
IP 20 |
|
Keyboard material/Front panel |
Touch screen: Polyester on glass, 1 million finger touch operations. Overlay: Autotex F157/F207 *. Reverse side material: Powder-coated aluminum |
|
Weight |
3.7 kg |
|
Serial port (RS422/RS485) |
25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC. |
|
Serial port (RS232C) |
9-pin D-sub contact, male with standard locking screws 4-40 UNC. |
|
Ethernet |
Shielded RJ 45 |
