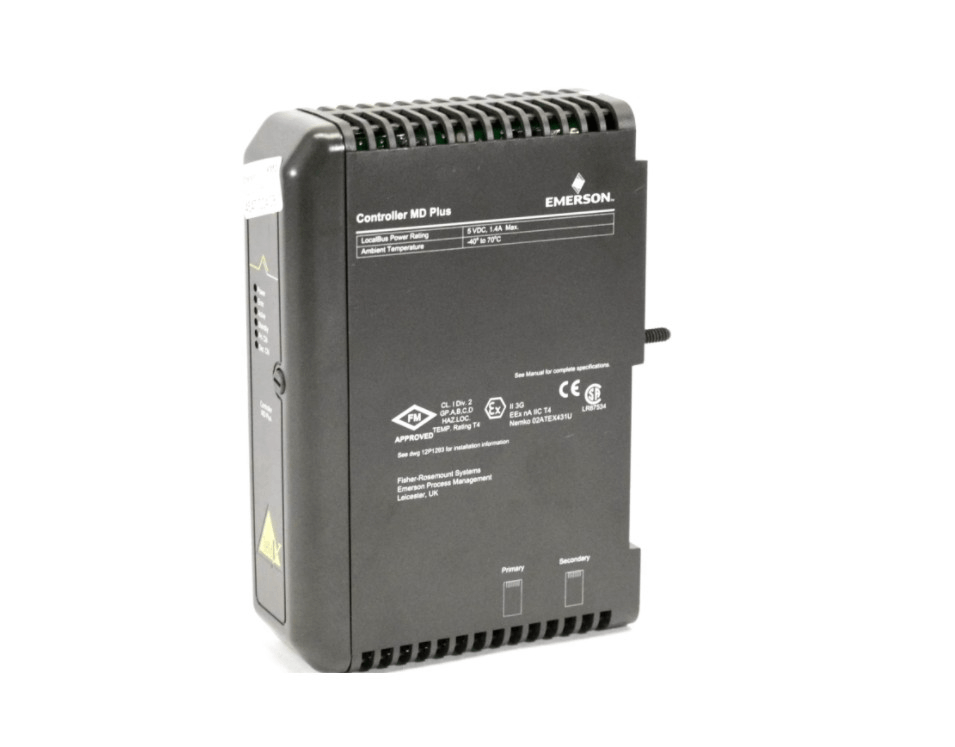

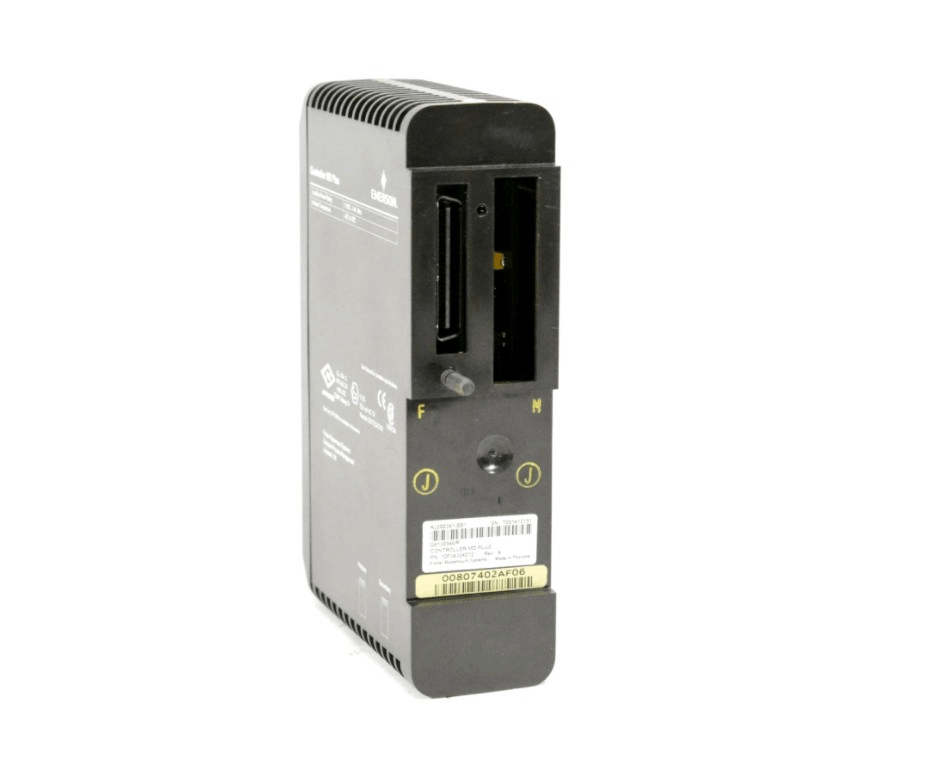

Emerson KJ2003X1-BB1 12P3439X012 Controller MD PLUS Module

Emerson KJ2003X1-BB1 is a DeltaV MD Plus controller with rich hardware configuration and practical functions. Equipped with Intel Core i7 - 6700K processor, it can efficiently handle industrial control tasks and large amounts of data. Regarding storage and memory, 16GB DDR4 RAM ensures that multiple programs and tasks run in parallel, and the 256GB SSD storage device has fast read and write speeds, which is convenient for the storage and call of data, programs, etc. in industrial production. Its interface has 24 digital inputs, 16 digital outputs, 4 analog inputs and 4 analog outputs, which can connect to a variety of industrial equipment and sensors.

Fuctions & Features

• Computing function: The Emerson KJ2003X1-BB1 controller is equipped with an Intel Core i7-6700K processor, which can handle industrial control tasks and large amounts of data.

• Sufficient storage and memory: The Emerson KJ2003X1-BB1 controller has a memory capacity of 16GB DDR4 RAM, which can ensure that multiple programs and tasks can run simultaneously. The 256GB SSD storage device has data read and write speeds, and can quickly store and call various data, programs and configuration information in industrial production.

• Rich I/O interface: The Emerson KJ2003X1-BB1 controller has 24 digital inputs, 16 digital outputs, 4 analog inputs and 4 analog outputs, which can connect to a variety of industrial equipment and sensors.

• Moderate protection level: The IP20 protection level can prevent the entry of solid foreign objects larger than 12mm, and to a certain extent protect the internal components from dust and other damage, which is suitable for general industrial environments.

Specification

Installation and Configuration

• Power connection: According to the module requirements, Emerson KJ2003X1-BB1 is connected to a standard power supply, such as + 5VDC at 1.4A local bus power supply, etc., to ensure that the power wiring should meet the standards of the DeltaV™ system.

• I/O connection: According to the logo and instructions, Emerson KJ2003X1-BB1 correctly connects 24 digital inputs, 16 digital outputs, 4 analog inputs and 4 analog outputs to the corresponding field devices, sensors, actuators, etc.

• Hardware configuration: Emerson KJ2003X1-BB1 configures the I/O channels of the module through the relevant tools or software of the DeltaV system, and sets the function, signal type, range and other parameters of each input and output port to match the connected field devices.
