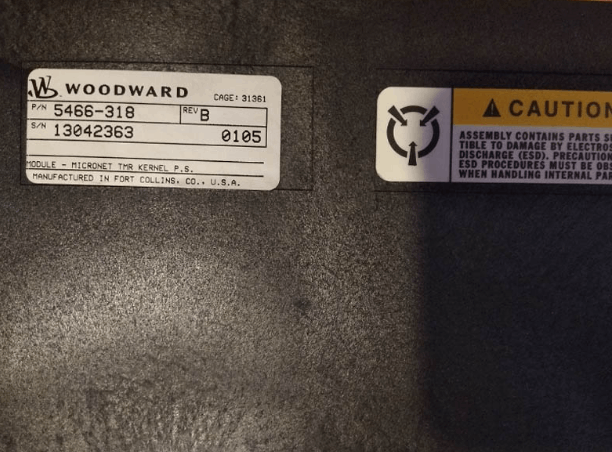

Woodward 5466-318 TMR Kernel Power Supply Module
Item Number:5466-318
Brand:Woodward
Price:$1
Lead Time: In stock
Description:TMR Kernel PS Module
Payment: T/T
Product Description
Woodward 5466-318 is a TMR core power module designed for Woodward MICRONET and must be used with the TMR040 CPU. The module is equipped with an LED indicator to display the health status of the core power supply. The module receives 24Vdc input from the MicroNet main power supply and outputs a stable 5Vdc, 10A voltage after regulation to power other components in the core section. It also generates a 5Vdc pre-charge voltage.
Function & Features
Installation requirements
- Position: 5466-318 must be installed in the leftmost slot (first slot) of each core sub-rack.
- Sequence: The core CPU module must be installed in the second slot immediately to the right of 5466-318.
Power conversion and distribution
- Input 24V DC (from MicroNet main power supply), output 5V DC (10A), power all key modules of the core part (A/B/C three zones).
- Generate 5V pre-charge voltage, and gradually power on when the system starts.
Specifications
|
Parameter |
Details |
|
Part Number |
5466-318 |
|
Subcategory |
|
|
Output Current |
max. 10 A |
|
Standards |
CE (EMC) and CSA |
|
Power Consumption |
24 VDC |
|
Output Voltage |
5 VDC ±5% |
|
Chassis |
MicroNet TMR |
