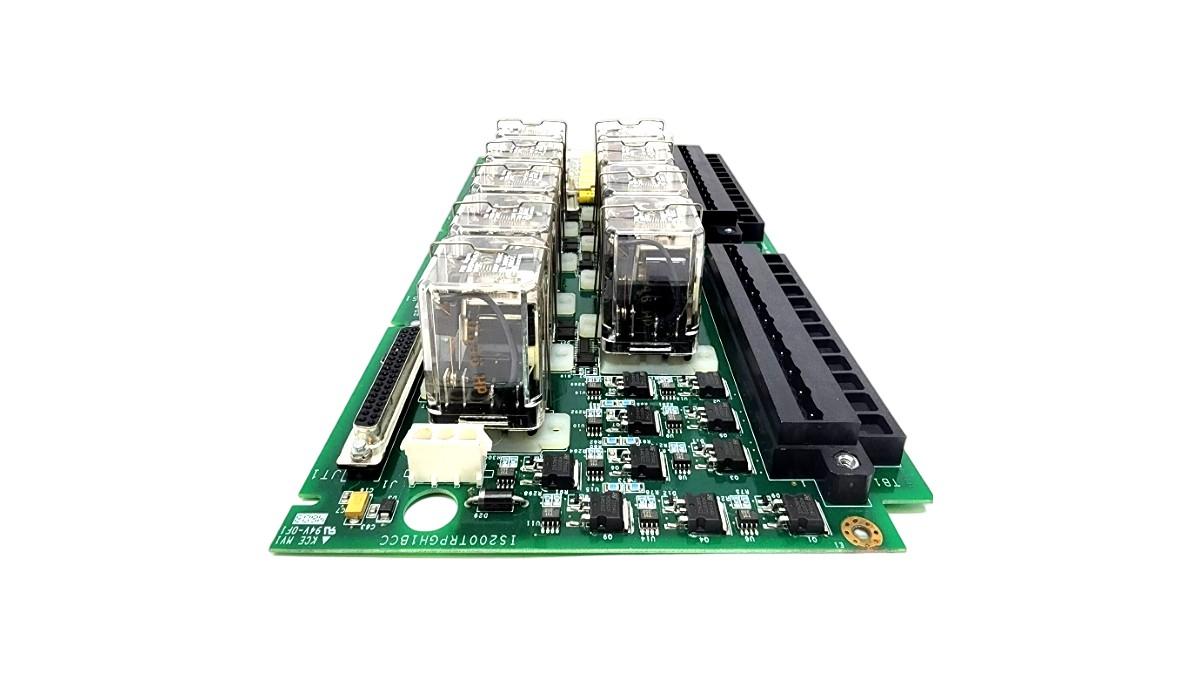

General Electric IS200TRPGH1BCC Terminal Relay
Item Number:IS200TRPGH1BCC
Brand:GE
Lead Time: In stock
Description:Terminal Relay
Payment: T/T
Product Description
GE IS200TRPGH1BCC is a Terminal Relay board. This board protects the unit's safety, is responsible for receiving trip commands from the controller, and also receives inputs from the flame detectors. The board works together with the TREG board and directly drives the trip solenoids located in the hydraulic control oil circuit, thereby quickly cutting off fuel when dangerous operating conditions are detected.
Function & Features
- Relay Configuration: The IS200TRPGH1BCC board uses three magnetic relays for each voting circuit to jointly control one trip solenoid valve.
- Driving Trip Solenoid Valves: The IS200TRPGH1BCC board directly drives three trip solenoid valves, forming the main protection and emergency protection interfaces.
- Hardware Identification: All connectors on the IS200TRPGH1BCC board are equipped with ID chips that store the serial number, board type, version number, and slot location. These are used for I/O board verification, and any mismatch will trigger an error indication.
Specifications
| Parameter | Details |
|---|---|
| Product Model | IS200TRPGH1BCC |
| Related Model |
IS200TRPGH1B IS200TRPGH1A |
| Board Type | Primary Trip Terminal Board |
| Number of Relays | 9 magnetic relays |
| Trip Output | Drives 3 Trip Solenoids (ETDs) |
| Dimensions | 308mm × 10.3mm |
| Weight | 0.58 kg |
