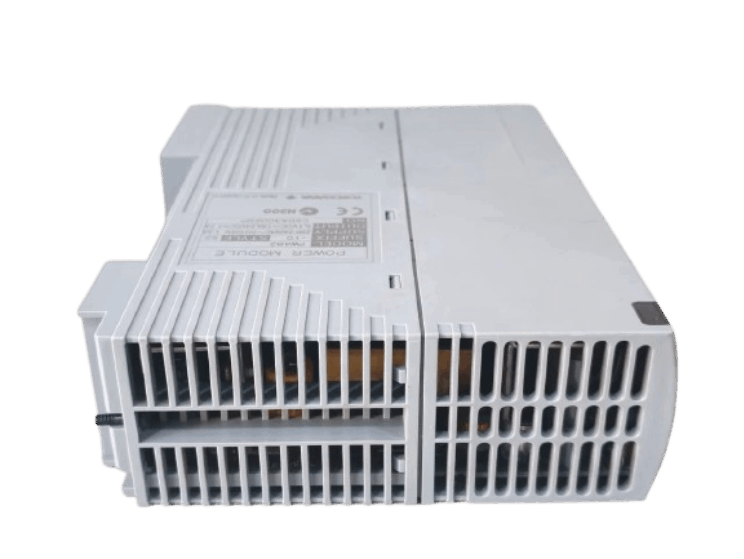

PW482-10 | Yokogawa | 220-240V AC Input Power Supply Module
Item Number:PW482-10
Brand: Yokogawa
Lead Time: In stock
Description:Power Supply Module
Payment: T/T
Product Description
PW482-10 is Yokogawa's 220-240V AC input power supply module with dedicated connector, designed for field control units (FCU, such as AFV30D, AFV30S, etc.), FIO node units (such as ANB10D, ANB10S, etc.) and optical ESB bus repeater units (ANT10U), and cannot be used as a general-purpose power supply module. Dual redundant power supply can be configured by installing 2 modules.
Function&Features
Dedicated design:
Only supports Yokogawa FCU, FIO node unit and optical ESB bus relay unit, and cannot be used as a general power supply.
Single power supply configuration:
must be installed in the P1-P2 slot, and in the P1 slot for single configuration.
Redundant configuration:
Dual redundant configuration requires installation of 2 modules with the same model code.
Specifications
|
Category |
Code/Value |
Description |
|
Model |
PW482 |
Input Power Supply Module for FCU/FIO Node Units |
|
Suffix Codes |
-5 |
Standard type (no explosion protection) |
|
-E |
Standard type with explosion protection |
|
|
0 |
Basic type |
|
|
1 |
With ISA Standard G3 option (-20°C to 70°C operating temperature) |
|
|
Input Power Supply |
220~240 V AC ±10% |
Operating voltage range |
|
50/60 Hz ±3 Hz |
Supported input frequency |
|
|
Maximum Power Consumption |
230 VA |
Rated capacity |
|
Weight |
Approx. 1 kg |
Module weight |
|
I/O Interface |
Exclusive connector |
Proprietary connector for FCU/FIO Node Units |
Loading comments...
PW482-10 | Yokogawa | 220-240V AC Input Power Supply Module
Item Number:PW482-10
Brand: Yokogawa
Lead Time: In stock
Description:Power Supply Module
Payment: T/T
Product Description
PW482-10 is Yokogawa's 220-240V AC input power supply module with dedicated connector, designed for field control units (FCU, such as AFV30D, AFV30S, etc.), FIO node units (such as ANB10D, ANB10S, etc.) and optical ESB bus repeater units (ANT10U), and cannot be used as a general-purpose power supply module. Dual redundant power supply can be configured by installing 2 modules.
Function&Features
Dedicated design:
Only supports Yokogawa FCU, FIO node unit and optical ESB bus relay unit, and cannot be used as a general power supply.
Single power supply configuration:
must be installed in the P1-P2 slot, and in the P1 slot for single configuration.
Redundant configuration:
Dual redundant configuration requires installation of 2 modules with the same model code.
Specifications
|
Category |
Code/Value |
Description |
|
Model |
PW482 |
Input Power Supply Module for FCU/FIO Node Units |
|
Suffix Codes |
-5 |
Standard type (no explosion protection) |
|
-E |
Standard type with explosion protection |
|
|
0 |
Basic type |
|
|
1 |
With ISA Standard G3 option (-20°C to 70°C operating temperature) |
|
|
Input Power Supply |
220~240 V AC ±10% |
Operating voltage range |
|
50/60 Hz ±3 Hz |
Supported input frequency |
|
|
Maximum Power Consumption |
230 VA |
Rated capacity |
|
Weight |
Approx. 1 kg |
Module weight |
|
I/O Interface |
Exclusive connector |
Proprietary connector for FCU/FIO Node Units |
