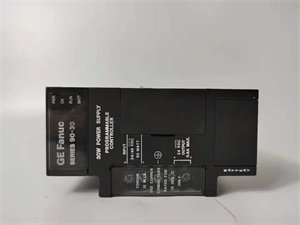

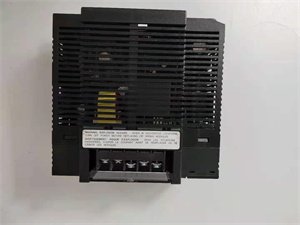

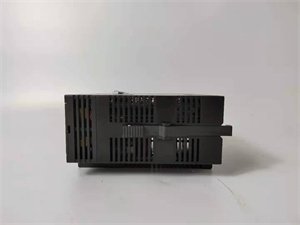

General Electric IC693PWR322F 100–240VAC input power supply module

The IC693PWR322F is a 100–240VAC input power supply module engineered for industrial PLC systems. It delivers 5VDC (10A) and 24VDC (2A) outputs, ensuring stable power for CPU, I/O, and communication modules. With built-in overvoltage/overcurrent protection and support for hot-swap redundancy, the IC693PWR322F minimizes downtime in mission-critical operations. Its compact design (125mm × 100mm × 120mm) and DIN-rail mounting simplify integration into control cabinet setups. GE Fanuc’s IC693PWR322F is trusted for its compliance with global standards (CE, UL) and compatibility with Series 90-30 PLCs.

Product Parameters

Advantages and Features

• High Reliability: Industrial-grade components and 500,000+ hours MTBF ensure long-term stability in harsh environments.
• Redundancy Support: Dual power supply capability (with IC693PWR322F paired modules) eliminates single points of failure.
• Wide Voltage Range: 100–240VAC input supports global applications without additional voltage converters.
• Energy Efficiency: 95% efficiency reduces power consumption and heat generation.
• Safety Features: Overvoltage (OVP), overcurrent (OCP), and short-circuit protection safeguard connected devices.

Application Areas and Use Cases

• Industry: Manufacturing (assembly lines, robotics), energy (power plants, renewable energy), transportation (railway control).
• Case Study: A North American food processing plant deployed IC693PWR322F in redundant mode for its packaging line PLC system. The module’s hot-swap redundancy and 95% efficiency reduced unplanned downtime by 80% while cutting energy costs by 12%.

Competitive Comparison

Compared to similar PLC power supply modules:

• Redundancy Flexibility: Supports true dual-supply redundancy (vs. limited or no redundancy in competing products).
• Voltage Range: 100–240VAC (vs. 200–240VAC in most alternatives).
• Efficiency: 95% (vs. 85–90% in standard modules).
• Footprint: 30% smaller than legacy GE Fanuc power supplies while maintaining higher current capacity.

Selection Recommendations

• System Requirements: Match output current (5V/10A + 24V/2A) to your PLC’s power needs (e.g., Series 90-30 CPU modules require ≤8A at 5V).
• Environment: For outdoor or high-temperature settings (+55°C+), pair with cooling fans; derate power at >40°C.
• Redundancy Needs: Use two IC693PWR322F modules for N+1 redundancy in critical systems (e.g., water treatment, oil refining).

Precautions

• Installation:
  • Ensure proper grounding (earth/ground connection required).
  • Follow ESD protocols; use anti-static gloves during handling.
• Cooling: Maintain 10mm clearance around the module for airflow; avoid enclosed environments without ventilation.
• Maintenance:
  • Inspect capacitors for swelling every 5 years (expected lifespan: 7–10 years).
  • Replace modules if input/output voltages deviate >5% from specifications.
