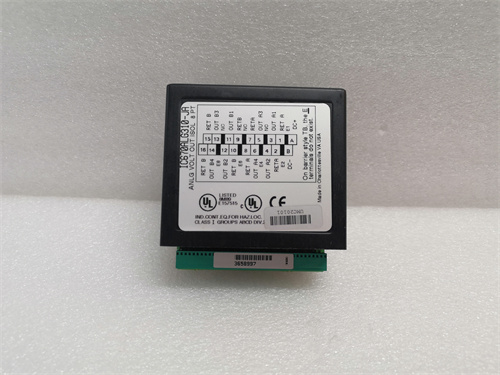

GE IC670ALG310 Product Details

GE IC670ALG310 is a high-precision,multi-channel analog output module with 8 isolated analog voltage output channels.The scaling ratio of each channel can be configured by the user,supporting an output voltage range of-10V to+10V with a resolution of 14 bits.The module is designed for industrial environments and has high reliability and vibration resistance to ensure stable operation under harsh conditions.

Main Features

High Precision

14-bit resolution,providing high-precision analog output.

Supports an output voltage range of-10V to+10V to meet a variety of application requirements.

Multi-Channel

8 isolated analog voltage output channels,accommodating two groups(4 per group)of isolated outputs.

Each channel can independently configure the output range and scale parameters.

Configurability

Users can configure the scaling ratio and output range of the channel according to application requirements.

Supports field calibration or reset to factory calibration,and all calibration data is stored in flash memory.

High reliability

Designed for industrial environments,it has high reliability and vibration resistance.

Built-in diagnostic and self-test functions to detect module status and performance problems.

Enhanced diagnostic function

Easily detect over-range and under-range conditions,user power failure and uncalibrated modules.

Provide LED indicators to display module status,including normal operation,module failure and no backplane power/user power.

Alarm function

Users can set alarm functions for different events.

When the output value does not meet the 50mV requirement of the maximum or minimum output setting of the module,the module will trigger an alarm.

Communication interface

With a communication interface,it can exchange and communicate data with the control system or other devices.

Local output default value

In the event of a module error,the actual output voltage can be set to zero volts or keep its last value.

Application field

GE IC670ALG310 analog output module is widely used in the following fields

Industrial automation control system:used to collect analog signals and pass them to the control system for processing.

Process control:Provides accurate analog output in process control systems for regulating and controlling various process parameters.

Data acquisition:Records historical data of analog signals for subsequent analysis or report generation.

Monitoring and feedback control:Used for monitoring and feedback control of various industrial equipment and systems.
