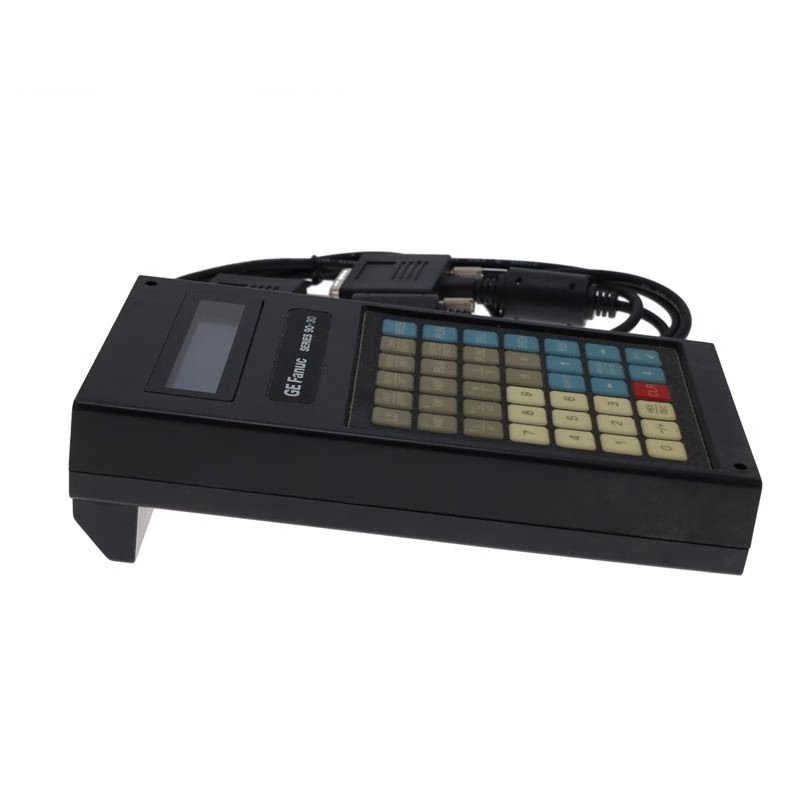

The GE Fanuc IC693PRG300 is a handheld programming device designed for use with Series 90-30 PLCs. It serves as an interface to configure, monitor, and debug PLC programs. The device is equipped with a 42-key keypad, tactile feedback, and a 2-line, 16-character LCD display. It connects to the CPU through a 15-pin D-type connector, allowing users to modify I/O parameters and communicate with the PLC system without the need for communication parameter configuration. The IC693PRG300 operates in four modes: Program, Protection, Data, and Configuration, providing versatile functionality for PLC programming tasks.

Technical Specifications

• Brand: GE Fanuc
• Model: IC693PRG300
• Category: PLCs/Machine Control
• Subcategory: PLC Programming Terminal
• Keypad: 42 keys arranged in a 6×7 matrix
• Display: 2 lines x 16 characters
• Memory: Non-volatile, expandable via memory card slot
• Modes:
  • Program Mode: Create, change, and debug PLC programs
  • Protection Mode: Control access to PLC functions
  • Data Mode: Modify values in reference tables
  • Configuration Mode: Define I/O module types for applications
• Connector: 15-pin D-type for communication with CPU
• Weight: 0.75 lbs
• Product Lifecycle Status: Discontinued/Obsolete, surplus/refurbished units may be available
• Operating Environment: Suitable for industrial environments
• Communication: Does not require configuration to communicate with the PLC system
