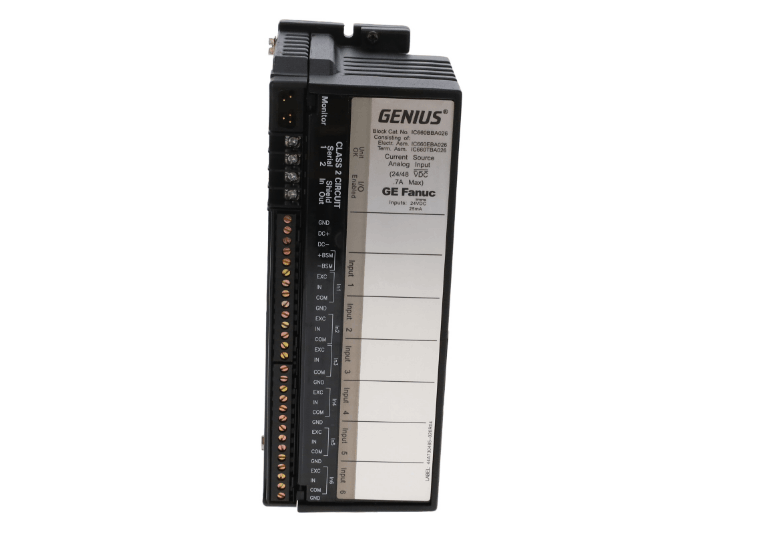

General Electric IC660BBA026 Current Source Input Blocks
Item Number:IC660BBA026
Brand: GE
Lead Time: In stock
Description:Current Source Input Blocks
Payment: T/T
Product Description
GE IC660BBA026 is a 6-channel current source analog input module that has the same functionality as the 115VAC/125VDC version (IC660BBA106), except for the 24/48VDC power supply. The IC660BBA026 can automatically detect module hardware anomalies. The bus supports Genius bus controllers and Series 90™-30/70 PLCs.
Function & Features
- Linear engineering unit conversion: IC660BBA026 can directly output actual physical quantities (such as pressure, temperature, etc.) through software configuration scaling.
- IC660BBA026 real-time monitoring: signal overrange/underrange detection. Open wire alarm to prevent misjudgment of wires. High/low alarm threshold trigger (software configurable).
- Software configuration: IC660BBA026 sets alarm thresholds, engineering units and other parameters through tools such as Logicmaster™.
Specifications
| Parameter | Details |
|---|---|
| Model | IC660BBA026 |
| Input accuracy at 25°C | 0.1% of full scale reading * |
| Input resolution | 1μA |
| Input conversion time | 16.6ms to 400ms (user selectable) |
| Range | 4mA to 20mA |
| Overrange capacity | 0mA to 25mA |
| Input diagnostics | Underrange, Overrange, High Alarm, Low Alarm, Open Wire |
| Channel to channel isolation | 1500V RMS |
| Thermal drift (from 25°C) | 70 PPM per degree C typical |
| Input Impedance | 100 Ohms +/-5% |
| Normal Mode Rejection | -45dB at 50, 60Hz |
| Input Excitation Characteristics - Open circuit voltage | 24VDC |
| Input Excitation Characteristics - Short circuit current | <75mA |
| Input Excitation Characteristics - Loop impedance | 1000 Ohms maximum (0mA to 20mA), 800 Ohms maximum (20mA to 25mA) |
