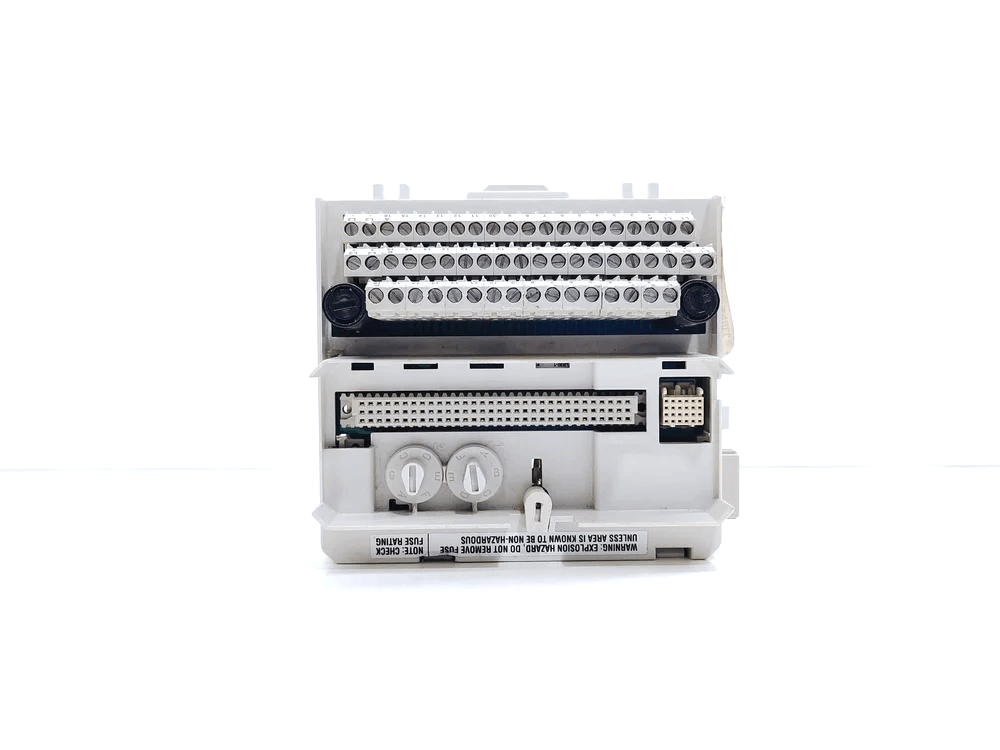

ABB TU830V1 3BSE013234R1 Extended Module Termination Unit
Item Number:TU830V1 3BSE013234R1
Brand: ABB
Lead Time: In stock
Description:Extended Module Termination Unit
Payment: T/T
Product Description
ABB TU830V1 3BSE013234R1 is a passive expansion module terminal unit (MTU). It connects field wiring to ABB's AC 800M and other high-range I/O modules and also includes part of the ModuleBus. The ABB TU830V1 has up to 16 I/O channels and two process voltage connections, which can be connected to two independent, isolated groups, each with a 6.3A fuse.
The maximum rated voltage is 50V, and the maximum rated current per channel is 2A. The MTU is responsible for distributing the ModuleBus to the I/O module and the next MTU, and generates the correct address for the I/O module by shifting the output position signal.
Function & Features
- Field Wiring Center: The ABB TU830V1 (3BSE013234R1) provides field wiring terminal blocks with up to 16 dual-channel I/O signals (32 total I/O points) for connecting field devices such as sensors and actuators.
- Process Power Distribution: The ABB TU830V1 (3BSE013234R1) provides two independent process power inputs (up to 50V DC, 2A maximum per channel) to power field devices such as transmitters and solenoid valves.
- Equipotential Bonding: Each signal channel provides a ZP (reference potential/shield) connection point for connecting the cable shield or signal common.
- Automatic address generation: ABB TU830V1 (3BSE013234R1) MTU has an address shifting function. It receives the position signal from the controller and generates the correct physical address for its connected I/O modules.
Specifications
|
Parameter |
Value |
| Product name | ABB TU830V1 |
|
Order number |
3BSE013234R1 |
|
Type |
Extended |
|
Connection |
|
|
Channels |
16 |
|
Voltage |
50 V |
|
Mounting |
Both directions |
|
Mounting detail |
55 °C (131 °F) |
|
Use with I/O |
AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840 |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:Extended Module Termination Unit
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
