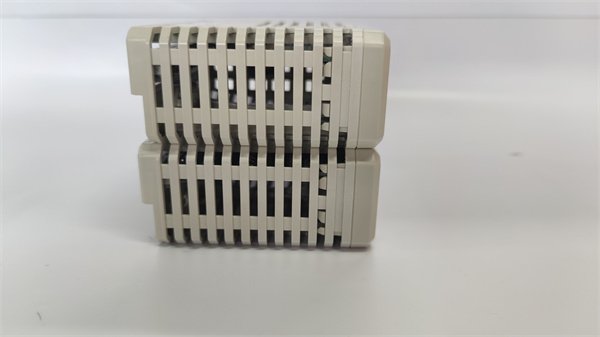

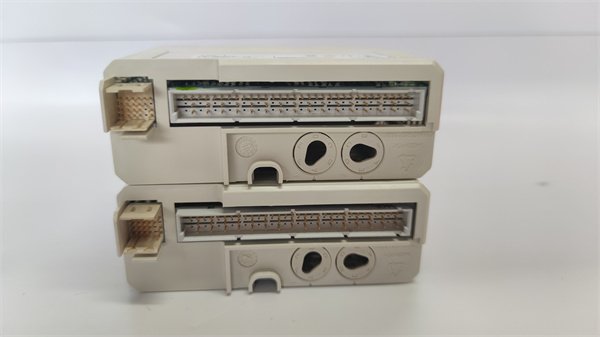

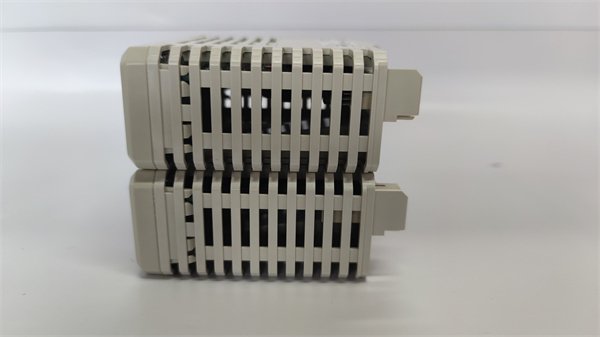

ABB AI810 3BSE008516R0001 Analog Input Module

The ABB AI810 3BSE008516R0001 is a high-precision 8-channel analog input module designed for industrial process control applications. As part of ABB’s S800 I/O family, this module provides reliable signal conditioning for current measurement in demanding automation environments.

Engineered for seamless integration with ABB’s AC 800M controllers, the AI810 module offers exceptional measurement accuracy and noise immunity. Its flexible configuration supports various current input ranges, making it suitable for diverse process measurement applications from temperature to pressure monitoring.

With robust channel-to-channel isolation and high common-mode rejection, the ABB AI810 3BSE008516R0001 ensures stable operation even in electrically noisy industrial environments. The module’s compact design and hot-swappable feature (when used with appropriate carrier) maximize system availability and simplify maintenance.

Detailed Parameter Table

Core Advantages and Technical Highlights

High-Precision Measurement:

Featuring 16-bit resolution and ±0.1% accuracy, the AI810 delivers precise process variable measurement critical for quality control and regulatory compliance in process industries.

Flexible Signal Configuration:

Each channel can be independently configured for 4-20mA, 0-20mA, or ±20mA input ranges, providing adaptability for various sensor types and measurement requirements.

Superior Noise Immunity:

With >120dB common mode rejection and 500V channel-to-channel isolation, the module maintains measurement integrity in environments with significant electrical interference.

Fast Sampling Rate:

The 10ms per channel conversion rate enables responsive process monitoring and control, suitable for dynamic process applications.

Robust Construction:

Designed for industrial environments, the module operates reliably in temperatures up to 60°C and withstands vibration typical in plant installations.

Diagnostic Capabilities:

Comprehensive channel diagnostics including open wire detection and signal out-of-range alerts facilitate predictive maintenance and reduce troubleshooting time.

Typical Application Scenarios

The ABB AI810 3BSE008516R0001 is widely deployed in:

Process Industries:

Chemical plants for reactor temperature monitoring

Oil refineries for pressure and flow measurement

Pharmaceutical facilities for batch process control

Power Generation:

Boiler control systems

Turbine monitoring

Emissions measurement systems

Water Treatment:

pH and conductivity monitoring

Flow measurement in distribution systems

Chemical dosing control

Manufacturing:

Plastics extrusion temperature control

Steel production process monitoring

Food processing parameter tracking

Installation, Commissioning and Maintenance Instructions

Installation Preparation:

Ensure proper mounting in an S800 I/O rack with adequate ventilation. Verify power supply stability (24V DC ±10%) and proper grounding. Use shielded cables for analog signals with proper grounding at one end only to prevent ground loops.

Commissioning:

Configure each channel’s input type and range using Control Builder M engineering tool. Verify zero and span calibration for critical measurements. Perform loop tests to confirm proper signal transmission from field devices.

Maintenance Suggestions:

Regularly check terminal connections for tightness. Monitor module temperature during operation. Periodically verify calibration against known references. Replace the module if diagnostic LEDs indicate hardware faults not resolved by reseating or power cycling.

Service and Guarantee Commitment

ABB provides a standard 36-month warranty for the AI810 3BSE008516R0001 module. Our global support network offers comprehensive technical assistance for configuration, troubleshooting, and integration with AC 800M control systems. Replacement units are available through ABB’s authorized distributors with expedited shipping options for critical applications.

The module undergoes rigorous testing during manufacturing to ensure compliance with specified performance parameters. Firmware updates, when available, are provided through ABB’s service organization to maintain optimal performance throughout the product lifecycle.
