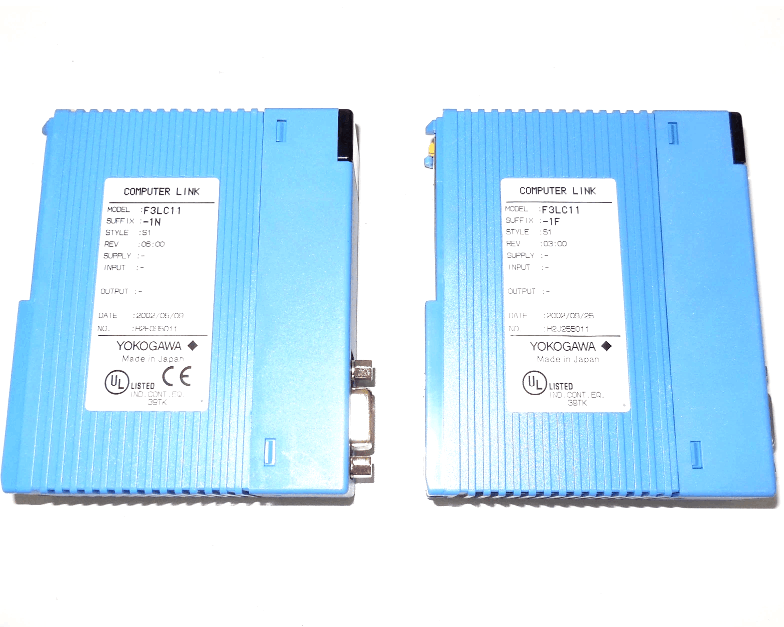

Yokogawa F3LC11-1N Personal Computer Link Module
Item Number: F3LC11-1N
Brand: Yokogawa
Lead Time: In stock
Description: Personal Computer Link Module
Payment: T/T
Product Description
Yokogawa F3LC11-1N is a dedicated communication module for the FA-M3 series, used for point-to-point communication between PLC and host computers (such as personal computers, FA computers or display terminals). The module supports data reading and writing, program management and remote control without the need for additional transmission applications.
Fuction & features
- Read and write all FA-M3 device data: including registers, I/O status, etc., even if the ladder program is not running.
- Direct connection to display terminal: F3LC11-1N supports display devices with PLC interface to monitor data information.
- Remote control: F3LC11-1N can remotely start/stop FA-M3 programs.
- Program transfer: F3LC11-1N supports program upload (Read), download (Write) and save.
- Information reading: F3LC11-1N obtains metadata such as program name, size, block name, and accesses error logs.
Specifications
|
Parameter |
Details |
| Model | F3LC11 |
| Suffix Code |
1N |
|
Interface |
Conforms to the EIA RS-232-C standard |
|
Transmission mode |
Half-duplex |
|
Synchronization |
Start-stop synchronization |
|
Transmission speed |
300, 600, 1200, 2400, 4800, 9600, 19200 bps |
|
Transmission distance |
15 m max. |
|
Number of ports |
1 (not isolated) |
|
Data format |
Start bit: 1 Data length: 7 or 8 bits Parity: None, even or odd Stop bit: 1 or 2 bits |
|
Error detection |
Parity check, checksum |
|
Control line |
RS always on, ER always on |
|
Current consumption |
100 mA |
|
External connection |
D-sub 9-pin connector (female) |
|
Weight |
110 g |
|
External dimensions |
28.9 (W) × 100 (H) × 83.2 (D) mm* |
