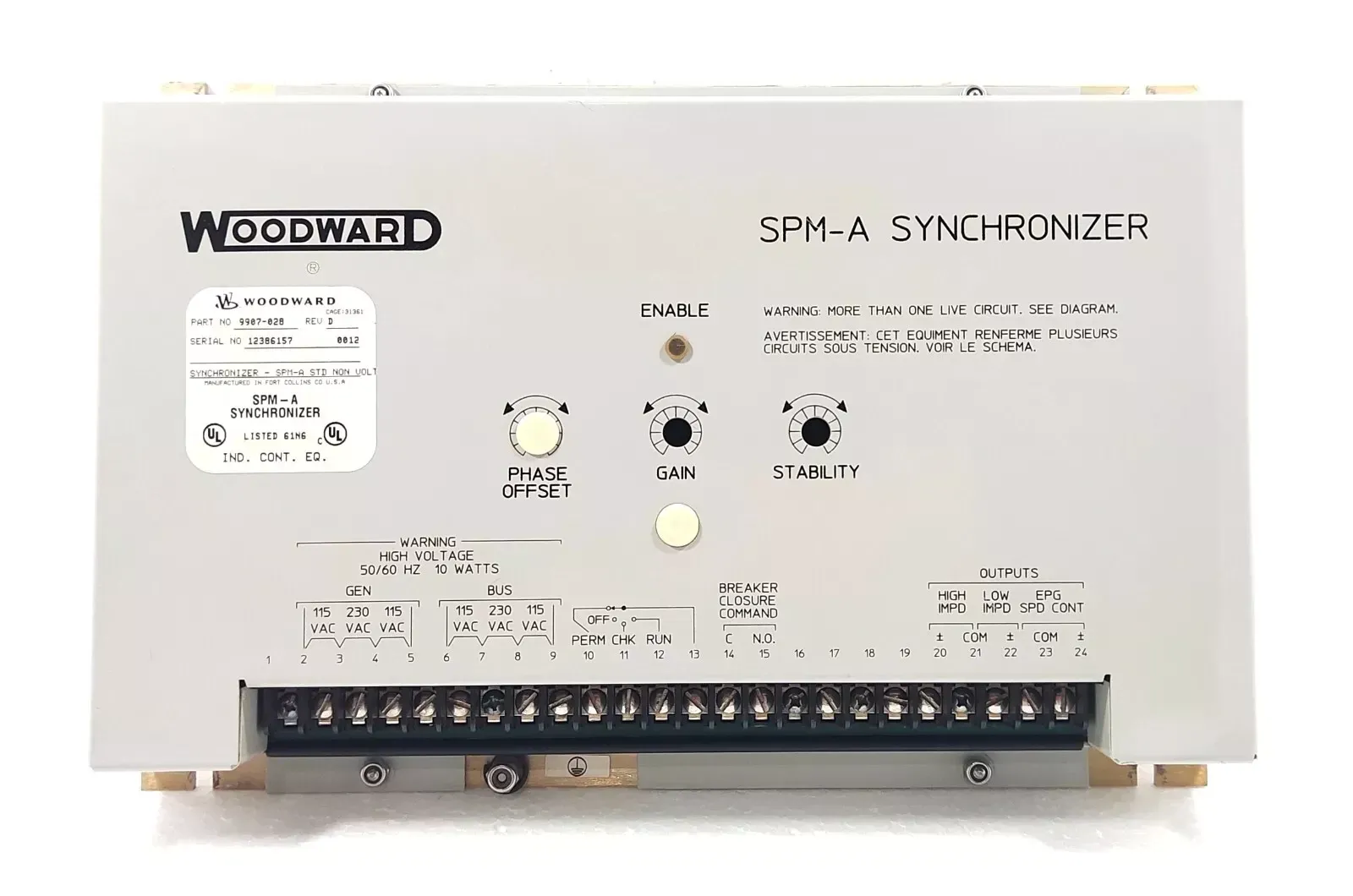

Woodward 9907-028 SPM-A Speed and Phase Matching Synchronizer
Item Number:9907-028
Brand:Woodward
Price:$1
Lead Time: In stock
Description:SPM-A speed and phase matching synchronizer
Payment: T/T
Product Description
Woodward 9907-028 SPM-A Speed and Phase Matching Synchronizer is a synchronization device used in a specific system. It is mainly used to achieve speed and phase matching synchronization. It can sense the difference in speed and phase and make corresponding adjustments to achieve synchronization. It is commonly used in industrial control systems in distributed turbine control systems.
Function & Features
- Speed Matching: The Woodward 9907-028 Synchronizer monitors the speed of the generator in real time, keeping an eye on the generator's operating status. Once the generator frequency is found to be inconsistent with the grid or other generators, the generator speed will be adjusted quickly.
- Phase Matching: In addition to the key function of speed regulation, the Woodward 9907-028 Synchronizer also has a phase angle matching function, which can automatically adjust the generator's phase angle during operation.
- Automatic Synchronization: The Woodward 9907-028 Synchronizer supports a fully automatic synchronization process. When all preset synchronization conditions are met, it is like an intelligent "commander" that can automatically complete the generator's grid connection operation.
Specifications
|
Category |
Sub - category |
Details |
| Woodward | 505E Digital Governer | 9907-028 |
|
Inputs |
Voltage (bus and generator) |
115 or 230 Vac rms, 50/60 Hz |
|
Voltage Tolerance |
±10% |
|
|
Power Consumption |
5 W maximum |
|
|
Outputs |
Control Compatibility |
high impedance output for 2301 load sharing controls low impedance output for 2301A, EPG, and 2500 load sharing controls; and EGA, EGM controls with external resistor EPG output for EPG controls without load sharing, normally open contact provided |
|
Breaker Close Relay Contact Ratings |
Resistive Loads: 10 A at 28 Vdc; 3 A at 120 Vac, 50/60 Hz Inductive Loads: 6 A at 28 Vdc; 2 A at 120 Vac, 50/60 |
Loading comments...
Woodward 9907-028 SPM-A Speed and Phase Matching Synchronizer
Item Number:9907-028
Brand:Woodward
Price:$1
Lead Time: In stock
Description:SPM-A speed and phase matching synchronizer
Payment: T/T
Product Description
Woodward 9907-028 SPM-A Speed and Phase Matching Synchronizer is a synchronization device used in a specific system. It is mainly used to achieve speed and phase matching synchronization. It can sense the difference in speed and phase and make corresponding adjustments to achieve synchronization. It is commonly used in industrial control systems in distributed turbine control systems.
Function & Features
- Speed Matching: The Woodward 9907-028 Synchronizer monitors the speed of the generator in real time, keeping an eye on the generator's operating status. Once the generator frequency is found to be inconsistent with the grid or other generators, the generator speed will be adjusted quickly.
- Phase Matching: In addition to the key function of speed regulation, the Woodward 9907-028 Synchronizer also has a phase angle matching function, which can automatically adjust the generator's phase angle during operation.
- Automatic Synchronization: The Woodward 9907-028 Synchronizer supports a fully automatic synchronization process. When all preset synchronization conditions are met, it is like an intelligent "commander" that can automatically complete the generator's grid connection operation.
Specifications
|
Category |
Sub - category |
Details |
| Woodward | 505E Digital Governer | 9907-028 |
|
Inputs |
Voltage (bus and generator) |
115 or 230 Vac rms, 50/60 Hz |
|
Voltage Tolerance |
±10% |
|
|
Power Consumption |
5 W maximum |
|
|
Outputs |
Control Compatibility |
high impedance output for 2301 load sharing controls low impedance output for 2301A, EPG, and 2500 load sharing controls; and EGA, EGM controls with external resistor EPG output for EPG controls without load sharing, normally open contact provided |
|
Breaker Close Relay Contact Ratings |
Resistive Loads: 10 A at 28 Vdc; 3 A at 120 Vac, 50/60 Hz Inductive Loads: 6 A at 28 Vdc; 2 A at 120 Vac, 50/60 |
