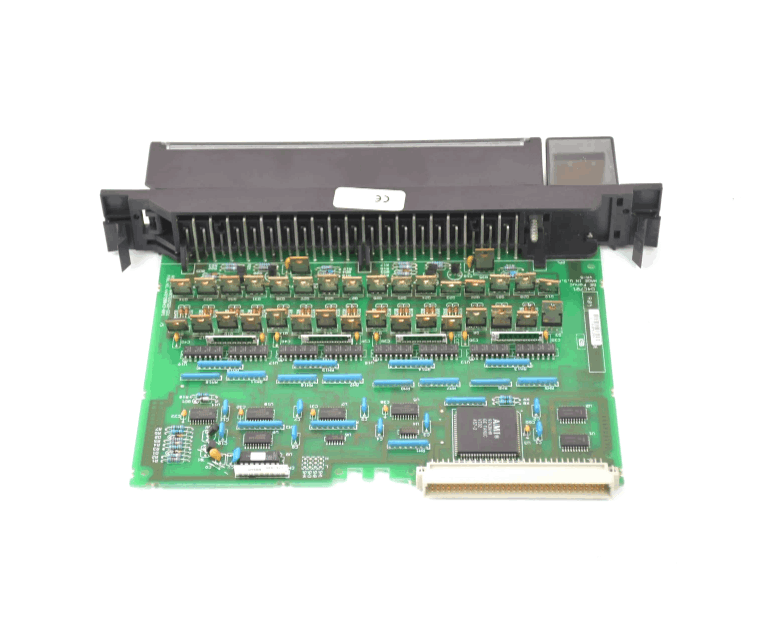

General Electric IC697MDL753 Positive Logic Output Module
Item Number:IC697MDL753
Brand: GE
Lead Time: In stock
Description: Positive Logic Output Module
Payment: T/T
Product Description
GE IC697MDL753 Positive Logic Output Module is a 32-point positive logic (current sinking) discrete output module for RX3i series PLC. The module provides 32 discrete output points, divided into 4 groups, 8 in each group, each group has an independent common terminal, supports +12 to +24 VDC load drive, and provides switch output control for the load.
Function & Features
- Positive logic (current sinking) design: The output switches the positive power supply and directly supplies current to the load (Sourcing Output). The maximum output current per point is 0.5 A, and the voltage range is +12 to +24 VDC (±20%/-15%).
- IC697MDL753 group isolation: 4 groups of independent outputs (8 points per group), each group of common terminals (Common) supports 3 A current (2 pins in total, high current applications need to be used in parallel).
- High current capability: IC697MDL753 can provide a maximum current of 0.5 amps per output point. There are two pins per group of common terminals on the I/O connector, and each pin can handle 3 amps of current. Two pins need to be connected for high current applications (3 to 4 amps).
Specifications
|
Parameter |
Details |
|
Model |
IC697MDL753 |
|
Rated Voltage |
12 through 24 volts DC, positive logic |
|
Output Voltage Range |
10.2 to 28.8 volts DC |
|
Outputs per Module |
32 (four groups of eight outputs each) |
|
Isolation |
|
|
Field to Backplane (optical) and to Frame Ground |
250 VAC continuous; 1500 VAC for 1 minute |
|
Group to Group |
50 VAC continuous; 500 VAC for 1 minute |
|
Output Current |
0.5 Amps per point with 4 Amps maximum per group and 3 Amps maximum per group common pin |
|
Power Consumption |
260 mA (maximum) from 5 volt bus on backplane; (13mA + 3mA/point ON + 4.7mA/LED) 16.5mA (maximum) per group from user supply @ 24VDC and all eight outputs in group ON 9.6mA (maximum) per group from user supply @ 12VDC and all eight outputs in group ON |
|
Output Characteristics: |
|
|
Inrush Current |
5.4 Amps for 10 ms |
|
On - state Voltage Drop |
0.3 volt DC |
|
Off - state Leakage Current |
0.1mA maximum |
|
On Response Time |
0.5ms maximum |
|
Off Response Time |
0.5ms maximum |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Positive Logic Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
