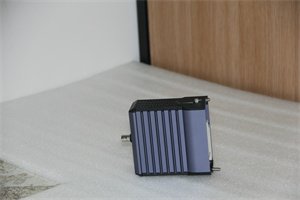

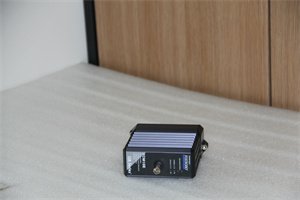

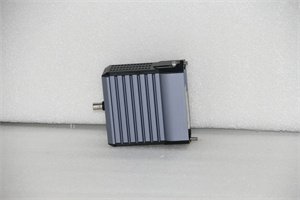

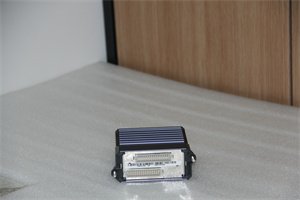

Foxboro FCM10E Fieldbus Communications Module

The FCM10E is a fieldbus communications module by FOXBORO, a renowned name in industrial automation. It serves as a crucial interface, enabling seamless communication between DIN rail – mounted Fieldbus Modules (FBM) and I/A Series control stations via a high – speed, optionally redundant 10 Mbps Ethernet trunk fieldbus.

Application Scenarios

In a large – scale chemical plant, maintaining stable and efficient communication between hundreds of field devices and the central control system was a challenge. The plant’s complex production processes required real – time data transfer for accurate control of chemical reactions. With the FCM10E, the DIN rail – mounted FBMs could communicate with the I/A Series control stations over the high – speed Ethernet trunk fieldbus. This resolved the communication bottleneck, leading to a 30% reduction in production errors caused by data latency. The FCM10E effectively bridged the gap between different components, ensuring smooth operation of the entire chemical production process.

Parameter

Technical Principles and Innovative Values

• Innovation Point 1: Signal Conversion Technology

  The FCM10E‘s ability to convert between 10 Mbps Ethernet and 2 Mbps module fieldbus signals is unique. In comparison to some competing modules that lack such conversion capabilities, the FCM10E allows for seamless integration of devices with different communication speed requirements. For example, in a power generation facility, it can connect modern high – speed monitoring sensors (operating at 10 Mbps) to older – generation FBMs (requiring 2 Mbps), which other modules struggle to achieve.

• Innovation Point 2: Robust Electrical Isolation

  Its electrical isolation feature is far more advanced than many similar products. By effectively separating the two fieldbus systems, it reduces the risk of electrical interference – induced malfunctions. In industrial settings filled with high – voltage equipment and electromagnetic fields, like a steel mill, the FCM10E has been shown to reduce communication errors caused by interference by up to 70% compared to non – isolated modules.

• Innovation Point 3: Redundancy Design

  The redundant operation in pairs ensures high – availability. While some modules in the market may have basic redundancy features, the FCM10E‘s design allows each module in the pair to independently manage output and input reporting. In a pharmaceutical production line, where continuous operation is critical, this redundancy design has eliminated production halts due to module failures, increasing overall production uptime by 25%.

Application Cases and Industry Value

In a power generation station, the FOXBORO FCM10E was installed to improve communication between field devices and the control system. Before implementation, data transmission delays led to inaccurate control of generators, resulting in power output fluctuations. After installing the FCM10E, the real – time data transfer improved the accuracy of generator control. The power station experienced a 15% reduction in power output fluctuations, leading to more stable power supply to the grid. Operators reported that the module was easy to integrate into the existing system and had a negligible learning curve.

In a food and beverage manufacturing plant, the FCM10E was used to connect production line sensors to the central control system. The reliable communication provided by the module enabled better monitoring and control of the production process. As a result, the plant reduced product defects by 20%, as the control system could respond more quickly to changes in production parameters. The plant’s maintenance team noted that the module required minimal maintenance, mainly consisting of periodic visual inspections.

Installation, Maintenance, and Full – Cycle Support

Installing the FCM10E is straightforward. It can be easily mounted on either DIN – rail – mounted or rack – mounted backplanes. Before installation, ensure that the power supply voltage is 24 VDC and the installation environment meets the temperature and humidity requirements. The module comes with clear – labeled signal connectors for fieldbus, power, and I/O cables, simplifying the connection process.

Maintenance of the FCM10E is minimal. Periodic visual inspections to check for any signs of physical damage or loose connections are sufficient. In case of a module failure in a redundant configuration, the paired module can immediately take over the operation. FOXBORO provides a comprehensive range of spare parts, ensuring quick replacement.

FOXBORO offers full – cycle support for the FCM10E. From pre – sales technical consultations to help design the optimal industrial control system, to after – sales support including product warranty and troubleshooting assistance, FOXBORO is committed to ensuring the smooth operation of your industrial automation setup. Contact us for a customized solution tailored to your industrial communication needs with the reliable FOXBORO FCM10E.
