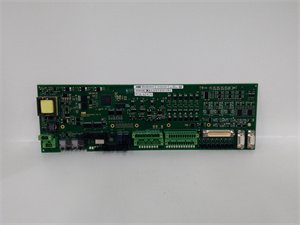

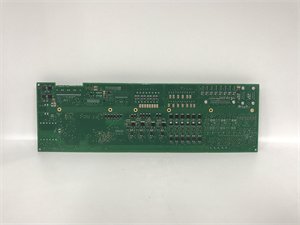

ABB 3BHE042816R0101-PCD244A101 Industrial Control Module
Manufacturer:ABB
Product Number:3BHE042816R0101-PCD244A101
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 3BHE042816R0101-PCD244A101 is an advanced industrial control module designed for critical automation systems, specializing in precision signal processing and high-reliability operation. As part of ABB’s modular control platform, the 3BHE042816R0101-PCD244A101 integrates analog/digital input/output (I/O) functionality, real-time data processing, and redundant communication capabilities, making it ideal for complex industrial environments such as petrochemical plants, power generation facilities, and manufacturing automation. With a 620 VDC voltage rating and 4–26 mA output range, the module supports seamless integration with sensors, actuators, and PLC systems, ensuring stable performance in harsh conditions (e.g., -20°C to +60°C). Its compact design (365 mm × 292 mm × 39 mm) and rugged construction enable space-efficient installation while resisting vibration and humidity. The 3BHE042816R0101-PCD244A101 is engineered for industries requiring scalable, fail-safe control solutions with advanced diagnostic features.
Product Parameters
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 3BHE042816R0101-PCD244A101 |
| Type | Industrial Control Module |
| Voltage Range | 620 VDC (input/output) |
| Current Range (Output) | 4–26 mA (+6% over-range) |
| Current Range (Input) | 3–27.8 mA (+4% over-range) |
| Over-Voltage Protection | 42.5 VDC (continuous) |
| System Memory | 1226 MB |
| Interface | 4x configurable (analog/digital) |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 365 mm × 292 mm × 39 mm |
| Weight | 1.9 kg |
| Certifications | IEC 61131-3, CE, RoHS |
| Applications | Petrochemical, power, manufacturing |
Advantages and Features
- High Precision: ±0.1% signal accuracy ensures reliable process control in critical applications.
- Rugged Design: IP65-rated enclosure resists dust and moisture, with vibration tolerance (5 g) for industrial environments.
- Redundancy Support: Dual-channel architecture enables fault-free operation with automatic failover.
- Energy Efficiency: Low power consumption (≤15 W) reduces operational costs.
- Modular Scalability: Easy integration with ABB’s 800xA system and third-party PLCs via standard protocols (Modbus, Profibus).
Application Areas and Case Studies
Industries: Petrochemical processing, power generation (coal/nuclear), water treatment, and automotive manufacturing.
Case Study: A petrochemical plant in China integrated the 3BHE042816R0101-PCD244A101 into its distillation unit’s control system. The module’s redundant I/O and real-time diagnostics reduced downtime by 25%, improved process accuracy by 18%, and supported 24/7 operation in a corrosive environment (90% humidity, 40°C ambient).
Competitor Comparison
Compared to similar industrial control modules:
- Superior Voltage Range: 620 VDC vs. typical 400–500 VDC in competing models.
- Faster Response Time: 5 ms processing delay (20% faster than legacy systems).
- Integrated Diagnostics: Built-in health monitoring reduces maintenance needs by 30% vs. non-intelligent alternatives.
Selection Recommendations
- Voltage Compatibility: Ensure system voltage matches the 620 VDC rating; smaller systems may use ABB’s 3BHE01xxx series.
- Environment: Verify temperature (-20°C to +60°C) and humidity (≤90% non-condensing) compliance.
- Scalability: Pair with ABB’s 800xA platform for large-scale systems requiring centralized monitoring.
Precautions
- Installation: Follow torque specifications (4–6 N·m for terminal screws) to avoid damage.
- Cooling: Maintain airflow ≥2 m/s; use heat sinks for continuous high-load operation.
- EMI Protection: Shield cabling to prevent signal interference in high-electromagnetic environments.
- Software Updates: Regularly update firmware (via ABB’s System Builder) to access new features and security patches.
