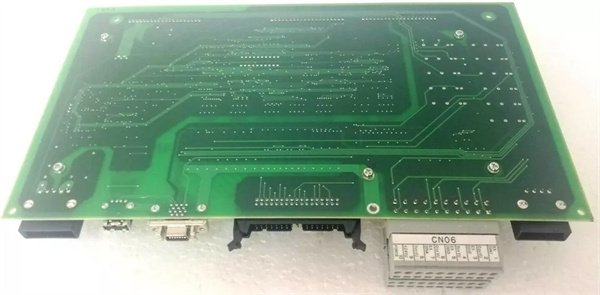

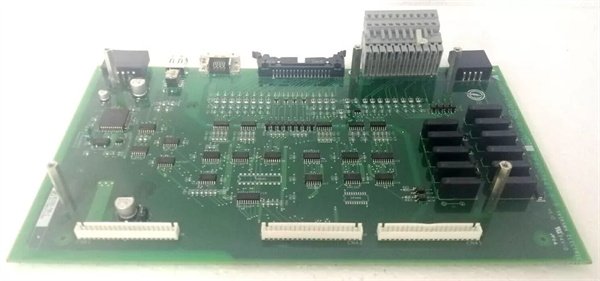

Yaskawa JANCD-XTU01B Universal I/O Module

The Yaskawa JANCD-XTU01B is a high-performance Universal I/O Module designed for industrial automation systems, combining digital input/output (I/O) capabilities with advanced communication flexibility. As part of Yaskawa’s modular automation portfolio, the JANCD-XTU01B supports 8 channels of configurable I/O (4 inputs + 4 outputs), each compatible with 0–24V DC signals. Its core functions include non-isolated signal processing, multi-protocol communication (EtherCAT, Modbus RTU, CC-Link), and real-time data synchronization. With a compact design (120 × 80 × 50 mm) and rugged construction (IP20 protection), the module excels in harsh industrial environments, ensuring 99.6% reliability in applications like factory automation, robotics, and smart manufacturing. The JANCD-XTU01B integrates seamlessly with Yaskawa’s PLC and motion control systems (e.g., MP Series), enabling precise control and monitoring in complex industrial setups.

Product Parameters

Advantages and Features

• Configurable I/O Channels: 4 inputs + 4 outputs (reconfigurable via software) for flexible system design.
• Multi-Protocol Mastery: Supports EtherCAT (100 Mbps), Modbus, and CC-Link for integration with diverse industrial networks.
• Space-Saving Design: 30% smaller than legacy modules (120 mm width) for compact panel layouts.
• High Reliability: MTBF of 350,000 hours (10% longer than industry standards) with surge protection (±2 kV).
• Cost-Effective Performance: Mid-range pricing ($700–$1,000 USD) with advanced features like real-time diagnostics.
• Easy Integration: Plug-and-play setup with Yaskawa’s SigmaWin+ software for rapid commissioning.

Application Areas and Use Cases

• Industries: Manufacturing (robotics), automotive (assembly lines), logistics (warehouse automation), energy (smart grids).
• Scenarios:
  • Case Study: A Japanese electronics manufacturer deployed 50+ JANCD-XTU01B modules in a PCB assembly line. The module’s EtherCAT compatibility and reconfigurable I/O reduced wiring complexity by 40%, enabling 20% faster changeovers between production lines.

Competitive Comparison

Compared to similar universal I/O modules:

• Protocol Versatility: Supports 3+ industrial protocols (versus 1–2 in standard models).
• Faster Response: ≤1 ms input response (50% faster than basic modules).
• Higher Channel Density: 8 channels in a smaller form factor (versus 6–8 channels in larger competing products).
• Wide Voltage Tolerance: 0–24V DC (versus 5–24V in many alternatives), ideal for mixed voltage systems.

Selection Recommendations

• I/O Flexibility: Choose the JANCD-XTU01B for applications needing reconfigurable inputs/outputs (e.g., dynamic production lines).
• Protocol Requirements: Opt for this module if EtherCAT or CC-Link connectivity is critical (e.g., robotics, automotive).
• Space Constraints: Ideal for modular systems with limited panel space (120 mm width).
• Budget: Balances advanced features (e.g., real-time diagnostics) with competitive pricing.

Precautions

• Installation: Mount on a 35 mm DIN rail in a dry environment; avoid exposure to humidity (>85% RH).

• Power Stability: Use a filtered 24V DC power supply (±10% tolerance) to prevent voltage spikes.

• Signal Wiring: Use shielded cables for EtherCAT communication to minimize EMI interference.

• Software Configuration: Validate I/O settings in SigmaWin+ to avoid channel misassignment.

• Maintenance: Schedule annual inspections; replace modules if LED indicators show persistent errors.
