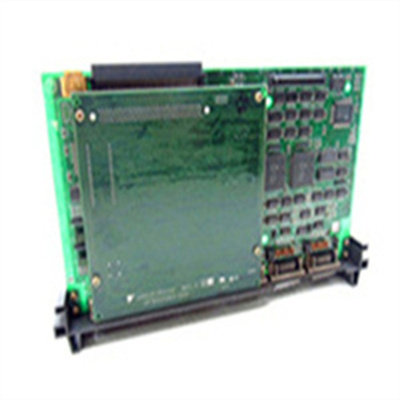

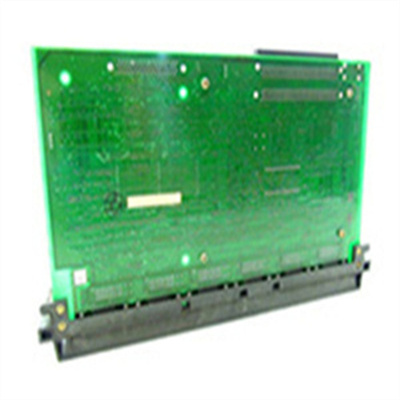

YASKAWA JANCD-MSV01B Product Introduction

JANCD-MSV01B is a high-performance servo controller module under Yaskawa Electric, designed specifically for the industrial automation field, suitable for high-precision motion control, high-speed response, and complex mechanical systems. This product combines servo drive and intelligent control technology, supports multiple voltage inputs and power ranges, and is widely used in mechanical processing, robotics, logistics equipment and other fields to improve system efficiency and stability.

Main features and advantages

High precision control and high-speed response

Adopting Yaskawa ∑ – V servo technology, the amplifier response speed is industry-leading, significantly reducing the setting time and ensuring the accuracy and dynamic performance of mechanical actions.

Support the design of medium inertia motors, increase the moment of inertia ratio by 1, reduce mechanical vibration through higher gain control, and optimize stopping accuracy.

High efficiency and low loss

The loss torque has been increased from 300% to 350%, reducing energy consumption and heat generation, and extending equipment lifespan.

Optimize motor parameter design, suppress energy loss, suitable for long-term high load operation scenarios.

Anti vibration and stability

Medium capacity models (such as SGMGV) have reduced their volume by 1 size and weight by about 20%. They adopt a new coupling design and have a standard anti vibration capacity of 5G, making them suitable for complex industrial environments.

Flexible adaptability

Supports multiple power supply modes including single-phase 100V (30-200W), single-phase 200V (30-400W), and three-phase 200V (0.45-15kW), compatible with absolute value encoders and braking function modules.

technical specifications

Parameter item specification description

Voltage range: single-phase 100V/200V, three-phase 200V

Power range 30W-15kW (three-phase)

Anti vibration capability 5G (standard)

The encoder supports absolute value encoder with brake/reducer options

Industrial grade protection with environmental adaptability, suitable for dust and vibration environments

application area

Mechanical processing equipment, such as CNC machine tools and engraving machines, achieve high-precision cutting and positioning.

Industrial robots: support multi axis collaborative control, suitable for complex actions such as assembly and welding.

Logistics and packaging system: Optimize conveyor belt speed and sorting accuracy to improve production efficiency.

Energy and environmental protection equipment: applied to variable frequency water supply and automation control units to reduce energy consumption.
