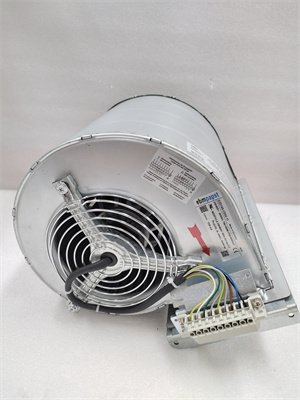

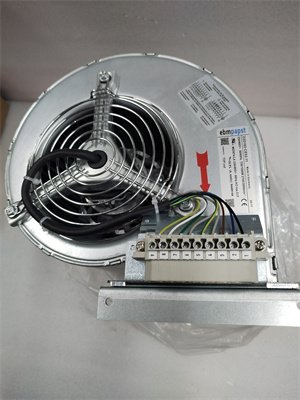

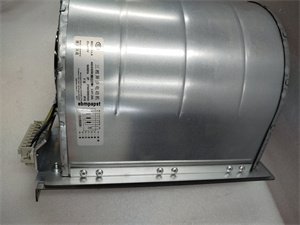

ABB D2D160-CE02-11 Industrial Centrifugal Cooling Fan
Manufacturer:ABB
Product Number:ABB D2D160-CE02-11
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB D2D160-CE02-11 is a high-performance centrifugal cooling fan designed for industrial applications, particularly for use with ABB ACS800 series inverters. This fan is part of ABB’s long-life fan series, offering a maintenance interval of up to 9 years. It replaces the previous D2D160-BE02-11 model and is backward compatible. The fan features improved aerodynamic performance and is designed to provide efficient cooling solutions for various industrial drives.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB D2D160-CE02-11 |
| Manufacturer | ABB |
| Product category | Industrial Centrifugal Cooling Fan |
| Input voltage | 230V / 400V AC |
| Power | 700W / 1055W |
| Frequency | 50Hz / 60Hz |
| Current | 1.9A / 2.82A |
| Operating temperature | -25°C to +90°C |
| Storage temperature | -40°C to +80°C |
| Humidity | 5% to 95% non-condensing |
| Protection class | IP20 |
| Dimensions | 160 mm (diameter) x 240 mm (height) |
| Weight | 11.1 kg |
| Motor type | M2D074-LA |
| Motor phase | 3-phase |
| Motor wiring | Delta (Δ) / Star (Y) |
| Rotation speed | 2700 – 3000 RPM |
| Rotation direction | Counterclockwise (viewed from rotor) |
| Insulation class | F-level |
| Motor mounting | Double-sided anti-vibration mounting |
| Motor bearings | Ball bearings |
| Motor protection | Thermal overload protector (TOP) |
| Cable exit | Available |
| Compliance | EN 60335-1, CE, CCC, CSA C22.2 No.100, UL 1004-1 |
Core Advantages and Technical Highlights
High Efficiency: The D2D160-CE02-11 offers efficient cooling with a power consumption of 700W at 230V and 1055W at 400V. It features a maximum airflow capacity, ensuring optimal cooling performance.
Robust Design: The fan is designed to operate reliably in harsh industrial environments, with an operating temperature range of -25°C to +90°C and a storage temperature range of -40°C to +80°C. It features a double-sided anti-vibration mounting and ball bearings for long-term durability.
Versatile Compatibility: The D2D160-CE02-11 is compatible with a wide range of ABB ACS800 series inverters, including models such as ACS800-14-0210-3, ACS800-14-0260-3, ACS800-14-0320-3, and more. It is also backward compatible with the previous D2D160-BE02-11 model.
Advanced Diagnostics: The fan includes a thermal overload protector (TOP) for enhanced safety and reliability. It also features a contact current of less than 0.75 mA, ensuring compliance with IEC 60990 standards.
Ease of Installation: The fan is designed for easy installation and integration into existing systems. It features a compact design and is available with a cable exit for convenient electrical connections.
Typical Application Scenarios
The ABB D2D160-CE02-11 is widely used in various industrial sectors, including:
-
Power Generation: Providing cooling for inverters and other critical equipment in power plants.
-
Oil and Gas: Ensuring efficient cooling in drilling operations, refineries, and pipelines.
-
Manufacturing: Supporting cooling needs in production lines to maintain optimal operating temperatures.
-
Chemical Processing: Managing heat dissipation in chemical reactors and processing units.
Installation Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB D2D160-CE02-11, ensure that the environment meets the specified requirements, including an operating temperature range of -25°C to +90°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.
Maintenance Suggestions
To maintain the ABB D2D160-CE02-11, perform regular inspections of the fan and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features.
Service and Guarantee Commitment
The ABB D2D160-CE02-11 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability.
