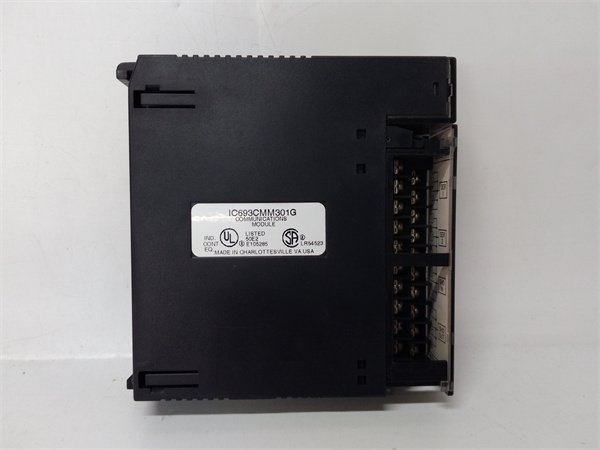

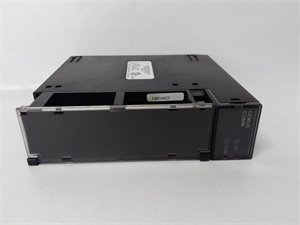

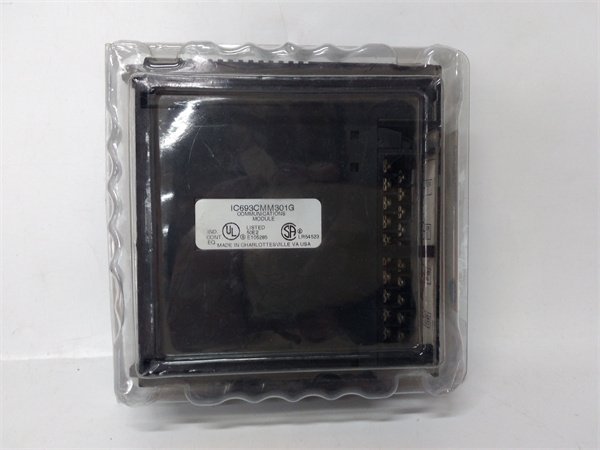

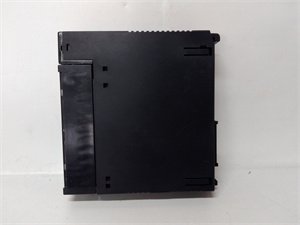

General Electric IC693CMM301 Genius Communications Module

The GE IC693CMM301 is a high – performance Genius communications module engineered for the GE Fanuc Series 90 – 30 programmable logic controllers (PLCs). As a key component in industrial control systems, it plays a pivotal role in enabling seamless data exchange and communication within complex automation setups.

This module is designed to facilitate “global data” communications. It allows a GE Fanuc Series 90 – 30 PLC to communicate with up to 7 additional devices connected via the Genius bus. Such global data communications involve the repeated and automatic transmission of data, which can be received by multiple devices sharing a common database. The IC693CMM301 can exchange data with a variety of devices, including other GE Series 90 – 30 and 90 – 70 PLCs, computers used for programming and configuration, and those with a PCIM card for data monitoring. By doing so, it enhances the connectivity and coordination among different elements of an industrial network, making it an essential part for achieving efficient automation.

Technical Specifications

Robust Data Exchange Capability

The GE IC693CMM301 can exchange up to 32 bytes or 256 bits of data in total. This substantial data – handling capacity ensures that it can support the transfer of crucial information in industrial processes. Whether it’s relaying sensor readings from multiple sources or sending control commands to various actuators, the module can handle the data volume efficiently, contributing to smooth operation of the overall system.

Easy Configuration

Lacking jumpers or DIP switches, the IC693CMM301 is configured either with a handheld programmer or appropriate system programming software. This approach simplifies the configuration process, reducing the chances of misconfiguration due to manual switch settings. It also allows for more precise and flexible configuration, catering to the specific requirements of different industrial applications.

Visual Operation Indication

Featuring two LEDs, the OK LED indicates that the module has successfully completed and passed its power – up test and is operating correctly. The COM LED shows that the module has been initialized by a Series 90 – 30 GE PLC and is actively receiving bus communications. In case of a high number of errors, the COM LED blinks, providing operators with an immediate visual cue about the module’s communication status. This visual feedback system helps in quick identification and resolution of issues, minimizing system downtime.

In manufacturing plants, the GE IC693CMM301 is widely used to connect different PLC – controlled machinery. For example, it can link the PLCs controlling conveyor belts, robotic arms, and assembly stations. By enabling seamless communication between these devices, it ensures that the production line operates in a coordinated manner. If a sensor on a conveyor belt detects a product’s position, the data can be quickly transmitted via the IC693CMM301 to the PLC controlling the robotic arm, which can then accurately pick and place the product.

In the energy sector, power plants use the IC693CMM301 to communicate between different control systems. It can transfer data between the PLCs monitoring the status of generators, turbines, and electrical distribution systems. This enables operators to have a comprehensive view of the power generation and distribution process, allowing for better control and quick response to any abnormalities.

The module also finds application in food and beverage production. Here, it can connect the PLCs controlling the filling, capping, and labeling machines. By facilitating real – time data exchange, it helps maintain the quality and consistency of the production process, ensuring that each product meets the required standards.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC693CMM301, ensure that the power to the PLC system is turned off. Check the compatibility of the module with the existing Series 90 – 30 PLC chassis and other connected devices. Familiarize yourself with the module’s configuration software or handheld programmer operation. Make sure the installation area is clean and free from dust and debris that could potentially affect the module’s performance.

Maintenance recommendations: Regularly inspect the GE IC693CMM301 for any signs of physical damage, such as cracks in the casing or loose connections. Monitor the status of the OK and COM LEDs. If the COM LED blinks frequently, it may indicate communication issues that need to be investigated. Check for any available firmware updates from GE and apply them as needed to ensure the module operates with the latest features and stability improvements. Keep the module clean to prevent dust buildup, which could lead to overheating.

Product Guarantee

GE, as a renowned manufacturer in the industrial automation field, has a reputation for producing high – quality products. Although the GE IC693CMM301 has been discontinued by the manufacturer, if you obtain a surplus or refurbished unit, it may come with a third – party warranty. For example, some suppliers offer a 1 – year warranty on their refurbished IC693CMM301 units. While GE’s direct support may be limited for this discontinued product, the wealth of technical documentation and the existing user community can still be valuable resources. These can help users troubleshoot issues and continue to use the module effectively in their industrial control systems, ensuring a certain level of reliability and performance even after the product has been phased out of production.
