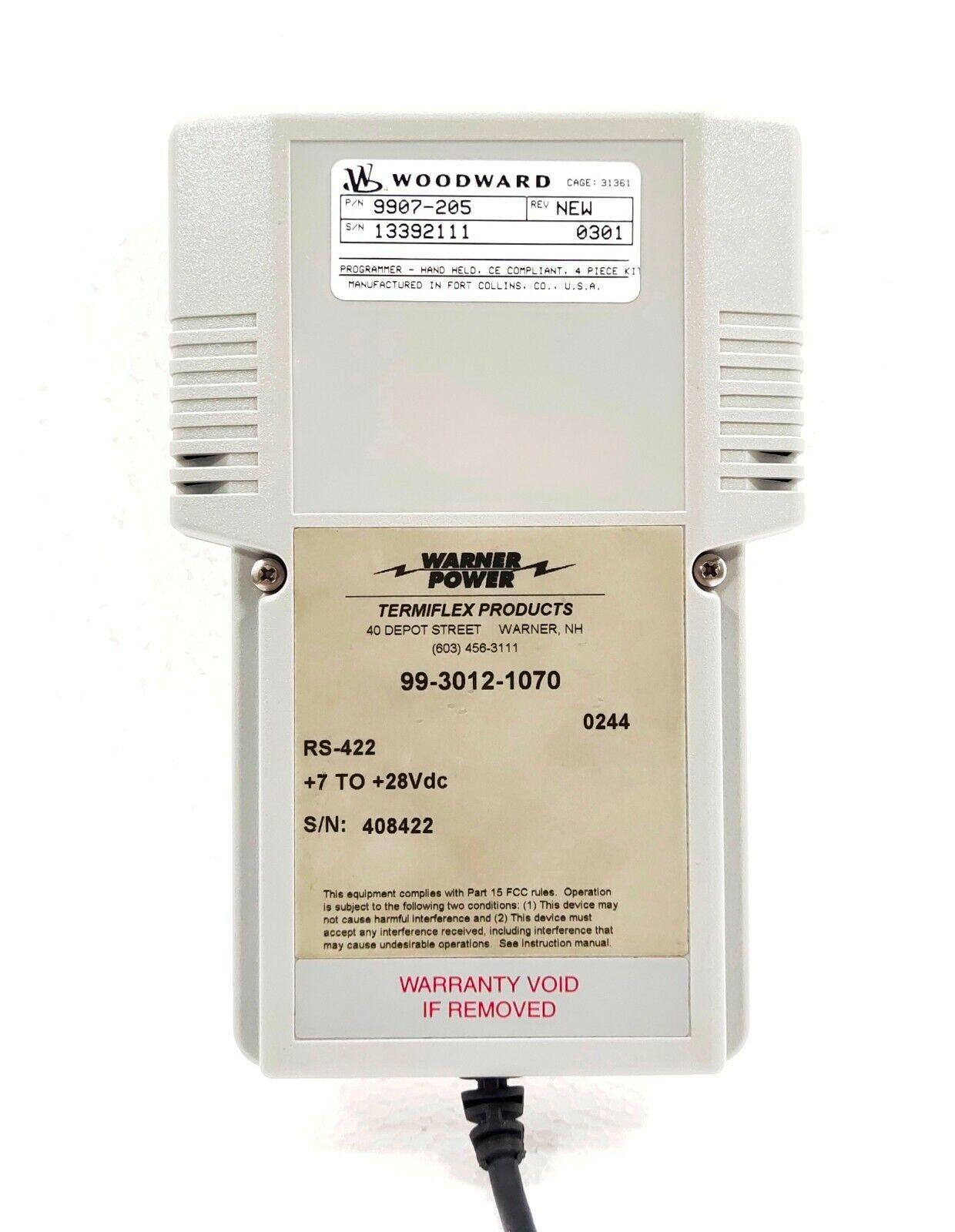

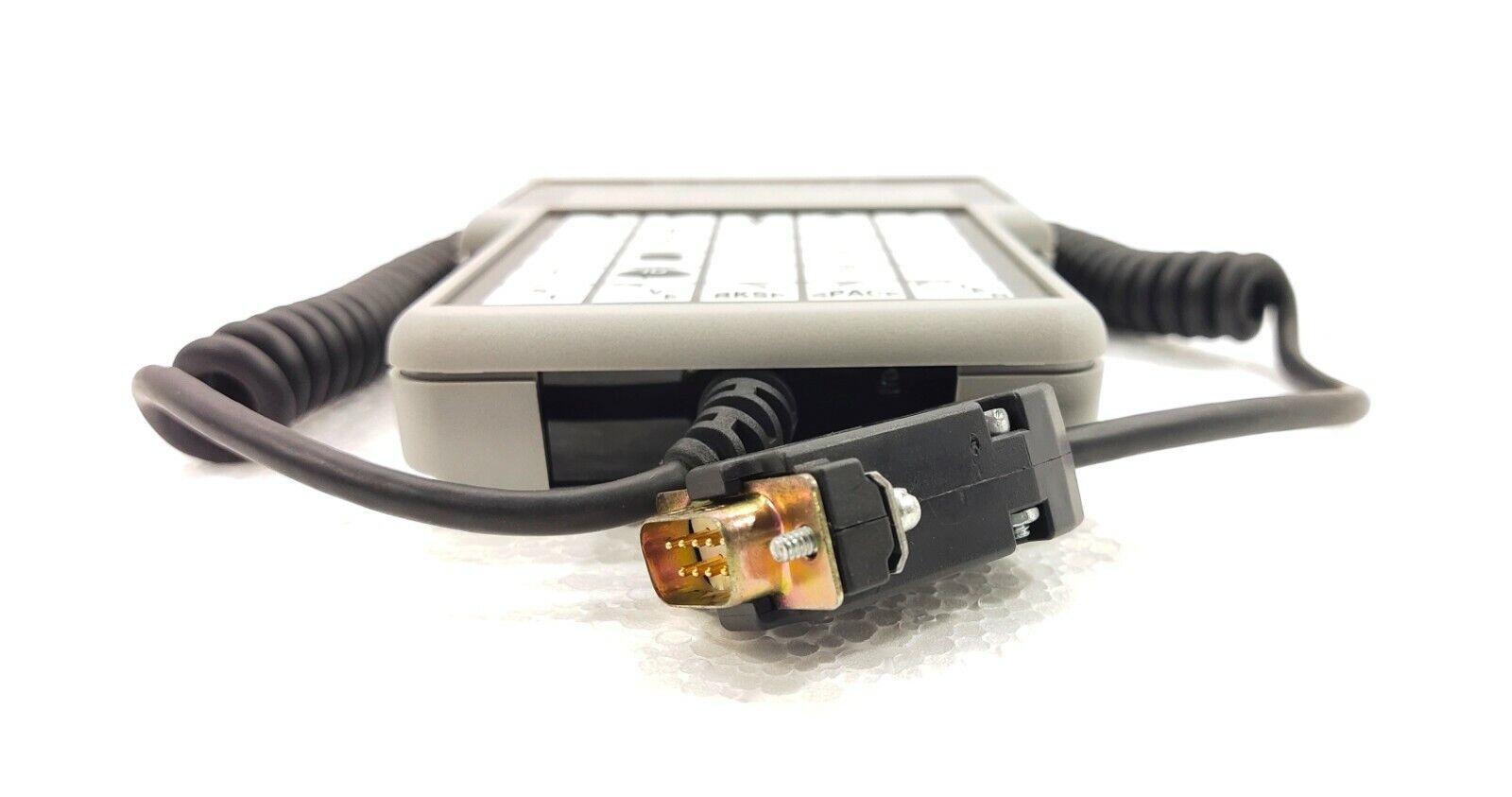

The Woodward 9907-205 is a handheld programmer belonging to the MSLC series (Master Synchronizer and Load Control) produced by Woodward Inc. This model offers a range of functions, including synchronization, utility load sensing, control over import/export load levels, power factor control, and master process control capabilities.

The 9907-205 serves as the MSLC Handheld Programmer module, empowering operators to monitor the generator’s standard parameters and conduct diagnostics on contact switches, analog input, and output ports. This functionality streamlines the installation and troubleshooting process, allowing users to configure control specifications before system activation.

During operation, vigilance for potential technical issues is essential. One such technical issue that may arise pertains to the remote load reference input. To ensure proper functionality, a bench test can be performed to check the remote load reference input. This test verifies the correctness of operation and calibration. Calibration of the remote input can be achieved by accessing the calibration menu and selecting option number six, setting the key to forty-nine.

9907-205 Technical Specifications

• Electrostatic Discharge: 15 kV
• Manufacturer: Woodward
• Max Nodes per Bus: 20 (+40 to +85 °C)
• Maximum Stub Length: 600 mm (0 to +70 °C)
• Series: MSLC
