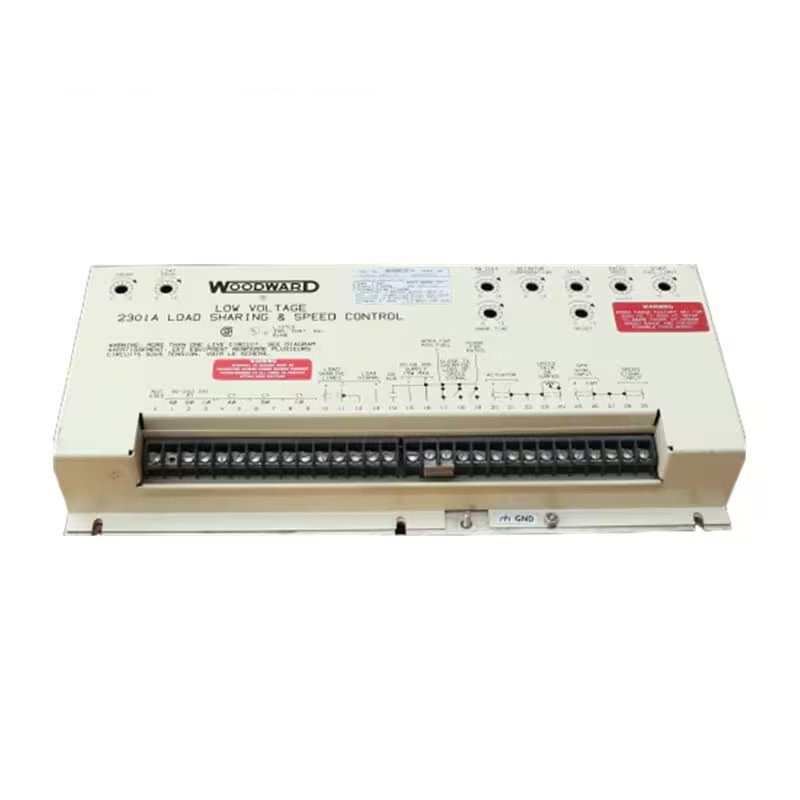

Woodward 2301A/9905-020 Advanced Electronic Control Unit

Woodward’s 2301A/9905-020 is an advanced electronic control unit. It specializes in low-voltage load sharing and speed control applications. This unit plays a crucial role in industrial and commercial systems that require precise regulation of multiple engines or pumps.

Key Features and Benefits

• Load Sharing: The unit ensures multiple prime movers share the load evenly. This optimization enhances efficiency and reduces wear and tear.
• Speed Control: It maintains a consistent output speed, even when load conditions vary.
• Reliability: The 2301A/9905-020 withstands harsh industrial environments. It provides years of dependable service.
• Flexibility: Users can configure it to meet a wide range of application requirements.
• Ease of Use: Its user-friendly interface and clear documentation simplify both setup and operation.

Technical Specifications

• Part Number: 9905-020
• Series: 2301A
• Power Supply: 20-40 VDC
• Actuator Current: 0-200 mA
• Actuation: Forward Acting
• Actuator Type: Single Actuator
• Operating Temperature: -40 to +85 °C (-40 to +185 °F)
• Dimensions: 15.25 in W x 7.125 in H x 2.5 in D
• Weight: 3 lbs 14 oz
• Standards: <= 15 W
• Speed Range: 2K-6K Hz FWD SINGLE 200 mAPT: 90-240 VAC

Applications

• Power Generation: Use it for load sharing and speed control in multiple generators at power plants.
• Pumps: Synchronize and control multiple pumps in water treatment plants and oil refineries.
• Compressors: Coordinate the operation of multiple compressors in air conditioning and refrigeration systems.
