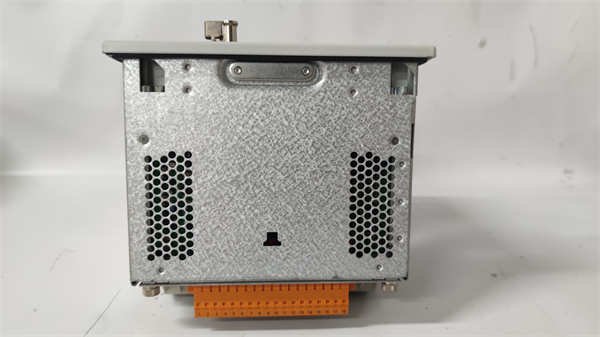

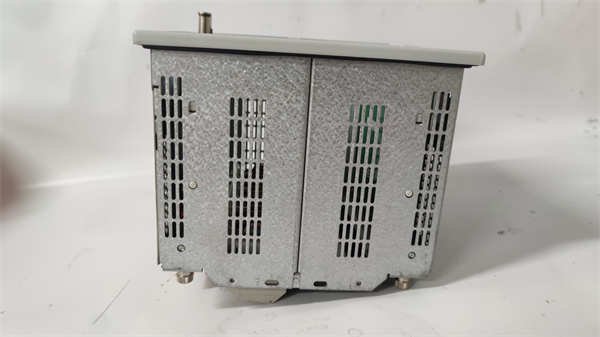

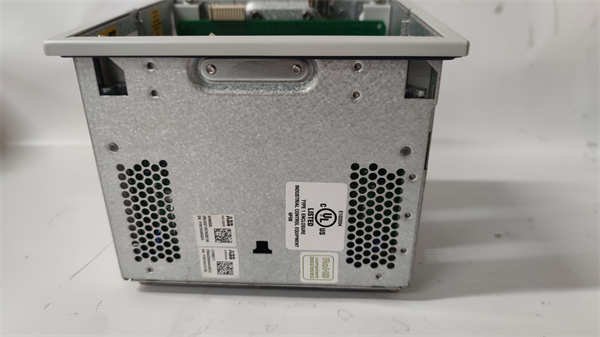

ABB REF615E_E HBFEAEAGABCCANC11E Digital Feeder Protection Relay
Manufacturer:ABB
Product Number:ABB REF615E_E HBFEAEAGABCCANC11E
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB REF615E_E HBFEAEAGABCCANC11E represents the next evolution in ABB’s Relion® 615 series of feeder protection relays, designed for mission-critical power distribution applications. This specific configuration (HBFEAEAGABCCANC11E) features enhanced environmental tolerance and cybersecurity features for demanding industrial installations.
As an Intelligent Electronic Device (IED), the REF615E_E provides comprehensive protection for medium-voltage feeders (up to 40.5kV) with advanced directional overcurrent and earth fault protection elements. The relay’s extended temperature range (-40°C to +70°C) makes it particularly suitable for outdoor installations and harsh industrial environments where conventional protection relays might fail. Its modular firmware architecture allows for future functional expansions without hardware modifications.
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | REF615E_E HBFEAEAGABCCANC11E |
| Manufacturer | ABB |
| Product Category | Digital Feeder Protection Relay (IED) |
| Protection Functions | Directional OC/EF, Arc Flash, Thermal Overload |
| Input Voltage | 48-300V DC / 100-240V AC (±20%) |
| Current Inputs | 1A/5A (software configurable) |
| Communication Protocols | IEC 61850 Ed.2, Modbus TCP/RTU, DNP3.0 |
| Operating Temperature | -40°C to +70°C (extended range) |
| Protection Degree | IP40 (front), IP20 (terminals) |
| Dimensions | 177 × 190 × 155 mm (6U) |
| Weight | 2.5 kg |
| Compliance Standards | IEC 60255, IEEE C37.90, UL 508, DNV GL |
Core Advantages and Technical Highlights
Advanced protection algorithms: The ABB REF615E_E HBFEAEAGABCCANC11E incorporates adaptive protection characteristics that automatically adjust to network conditions. The relay features:
Voltage-dependent overcurrent protection
Sensitive directional earth fault protection (IEDG)
Thermal overload protection with cooling time constants
Arc flash detection via external sensors (<5ms tripping)
Cybersecurity hardened design: This variant includes:
IEC 62351-compliant encrypted communications
Role-based access control (RBAC)
Secure boot functionality
Audit trail with tamper-evident logging
Industrial durability: The REF615E_E features:
Conformal coated PCBs for corrosive environments
5g vibration resistance (IEC 60255-21-1)
4kV surge immunity (IEC 61000-4-5)
DNV GL certification for marine applications

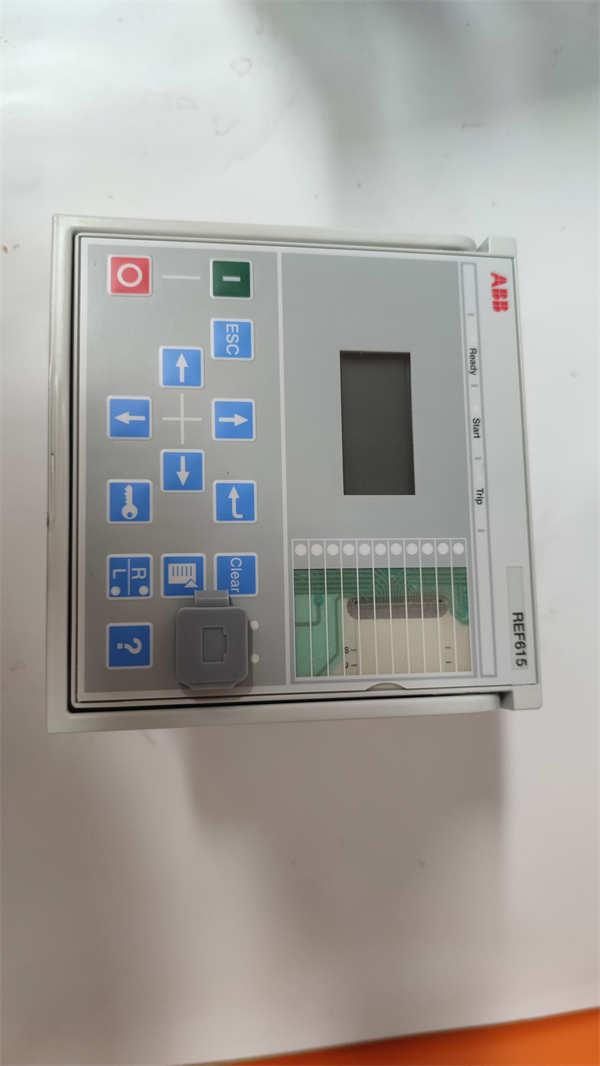

User-centric interface: The relay offers:
High-visibility sunlight-readable display
Intuitive single-line diagram interface
Local pushbutton control with password protection
USB port for local configuration
Typical Application Scenarios
The ABB REF615E_E HBFEAEAGABCCANC11E excels in demanding industrial power distribution:
Oil & Gas: Protects offshore platform feeders with DNV GL-certified hardware resistant to salt spray and constant vibration. The relay’s sensitive earth fault detection ensures safety in floating production storage and offloading (FPSO) units.
Mining Operations: Withstands extreme temperature variations in open-pit mining electrical distribution. The robust design handles high vibration from nearby heavy equipment while providing selective coordination for radial feeders.
Port Facilities: Marine-certified protection for quayside container crane power systems. The extended temperature range ensures reliability in coastal environments with salt-laden air.
Renewable Energy: Manages bidirectional power flow in solar/wind farm collector systems. Adaptive protection settings accommodate generation fluctuations while maintaining grid code compliance.
Installation Commissioning and Maintenance Instructions
Installation preparation: Mount the ABB REF615E_E HBFEAEAGABCCANC11E vertically with minimum 50mm clearance for ventilation. Use copper conductors (min. 2.5mm²) for CT connections and ensure proper grounding per IEC 61000. For arc flash detection, install sensors according to IEEE 1584 guidelines.
Commissioning steps:
Verify hardware compatibility with PCM600 V2.11+
Upload latest firmware package
Configure protection settings using template libraries
Perform primary injection testing
Validate communication mapping
Maintenance protocol:
Quarterly inspection of cooling vents
Annual verification of protection settings
3-year calibration check
5-year capacitor replacement
Continuous monitoring via ABB Ability™
Service and Guarantee Commitment
ABB provides:
84-month extended warranty option
24/7 global technical support (4hr response critical sites)
Lifetime firmware updates
Cybersecurity patch notifications
On-site commissioning assistance
Training programs (IEC 61850, cybersecurity)
Retrofit kits for legacy ABB relays
