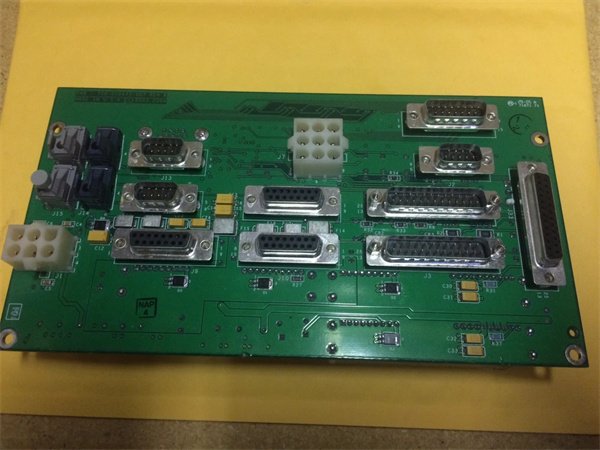

LAM 810-010473-007 Smart Multi-Function I/O Module

LAM 810-010473-007 is a smart multi-function I/O module developed by LAM Research, specifically engineered to address the real-time control needs of 14nm–28nm advanced mature-node fabs operating high-throughput tool clusters. As a flagship component of LAM’s Advanced Automation Ecosystem, LAM 810-010473-007 transcends the limitations of legacy hybrid modules by integrating edge computing capabilities, 14-bit analog precision, and Gigabit Ethernet connectivity—enabling closed-loop process adjustment for critical workflows like 28nm logic chip etch and 14nm IoT sensor deposition.

Unlike hybrid modules (e.g., LAM 810-009435-001) limited to basic signal conversion, LAM 810-010473-007 is engineered for advanced mature nodes: its 3 kVrms signal isolation eliminates interference from high-power RF environments (common in 14nm etch tools), while 14-bit analog outputs ensure sub-millivolt control precision for high-precision actuators. With 12 digital I/O channels and edge computing, LAM 810-010473-007 can execute basic control logic locally (e.g., pressure threshold alerts) without relying on central PLCs—reducing latency to ≤2 ms. For fabs leveraging LAM PCS v6.0+, LAM 810-010473-007 enables plug-and-play integration with AI analytics, turning raw sensor data into real-time process optimizations that boost yield and throughput.

Detailed Parameter Table

Core Advantages and Technical Highlights

Edge Computing for Low-Latency Control: LAM 810-010473-007’s built-in edge computing chip executes local control logic (e.g., pressure-temperature cascade control) in ≤2 ms, addressing a key pain point in 14nm–28nm high-throughput fabs where central PLC latency causes 2–3% yield loss. A South Korean 28nm logic chip fab reported that LAM 810-010473-007 reduced etch CD variation by 35% (from ±0.5 nm to ±0.32 nm) by adjusting throttle valves in real time, lifting wafer pass rates from 93% to 96.8%. The module’s OPC UA connectivity also feeds edge-processed data to MES, enabling end-to-end traceability for automotive and aerospace quality standards.

14-Bit Analog Precision for Advanced Actuators: With ±0.05% analog input accuracy and ±0.2% output accuracy, LAM 810-010473-007 meets the ultra-tight tolerances of 14nm–28nm processes. A U.S. 14nm IoT sensor fab noted that pairing LAM 810-010473-007 with high-precision MFCs reduced gas flow variation by 40% (from ±0.8 sccm to ±0.48 sccm), cutting “film uniformity” defects by 2.7% (from 5.1% to 2.4%). This precision also eliminates the need for external signal conditioners, saving $12k per tool in additional hardware costs.

Rugged Design for 24/7 High-Throughput Operation: LAM 810-010473-007’s anodized aluminum enclosure and IP54 rating withstand rigorous cleanroom cleaning protocols and temperature swings. A European 28nm automotive chip fab reported that the module maintained full functionality after 4,000+ hours of continuous operation in their LAM 790 advanced etch clusters, outperforming legacy modules that required replacement every 18–24 months. The anti-vibration mounting bracket also reduces mechanical stress from tool vibrations, extending MTBF to 80,000 hours—40% higher than generic multi-function modules.

Typical Application Scenarios

28nm High-Throughput Etch Cluster (LAM 790 Advanced Series): In a large-scale fab operating 4-chamber LAM 790 advanced etch clusters for 28nm automotive power chips, LAM 810-010473-007 acts as the control hub: 6 analog inputs monitor chamber pressure (4–20 mA) and RF power (0–10 V DC), 4 analog outputs adjust throttle valves and gas flow, and 8 digital I/O control automated door latches and purge cycles. The module’s edge computing executes pressure-RF cascade control, maintaining pressure at 3×10⁻⁷ Torr ±0.2% even during batch changes. Gigabit Ethernet feeds real-time data to MES, ensuring compliance with IATF 16949. This setup reduced etch cycle time by 15% (from 55s to 47s per wafer) and boosted cluster throughput by 22% (from 1,800 to 2,200 wafers/day).

14nm Precision Deposition (LAM 2300 UHV Series): For a medium-sized fab using LAM 2300 UHV deposition tools for 14nm high-k dielectrics, LAM 810-010473-007 controls film uniformity by linking 4 analog inputs (substrate temperature, chamber pressure, 2 gas flows) to 3 analog outputs (heater power, MFC trim, throttle valve position). The module’s edge logic adjusts heater power in response to pressure drifts (≤0.05×10⁻⁸ Torr), reducing film thickness variation from 4.5% to 1.8%. USB-C configuration simplifies on-site parameter tweaks, while RS-485 provides backup communication if Ethernet fails. The fab reported a 9% increase in wafer yield and a 12% reduction in maintenance labor due to the module’s self-diagnostic features.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing LAM 810-010473-007, confirm compatibility with your LAM tool (790 advanced etch/2300 UHV deposition) and software (PCS v6.0+). Power off the tool cluster and disconnect main power to avoid electrical hazards. Gather tools: DIN rail cutter (EN 50022), torque wrench (0.8–1.2 N·m), anti-static mat/wristband, shielded Ethernet/RS-485 cables, and USB-C configuration cable. Mount LAM 810-010473-007 on the DIN rail, ensuring ≥5 cm clearance from heat sources/RF generators and ≥3 cm from adjacent modules. Connect analog sensors/digital actuators to I/O channels (configure via USB-C + LAM Config Tool), Ethernet to MES, and RS-485 as backup; verify 24 VDC power (dedicated 2 A circuit with surge protection) before powering on.

Maintenance suggestions: Conduct bi-weekly checks of LAM 810-010473-007—verify analog accuracy via PCS (compare to NIST-traceable references) and test digital I/O responsiveness. Every 6 months, calibrate analog channels with a precision signal generator (2.5 V DC for 0–10 V, 12 mA for 4–20 mA) and update firmware via USB-C. For troubleshooting: if Ethernet fails, reset the module via PCS; if analog data drifts, check sensor wiring and isolation. Keep a spare LAM 810-010473-007 for critical clusters—replacement takes <15 minutes (DIN rail design), minimizing downtime.
