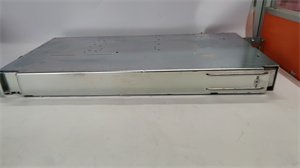

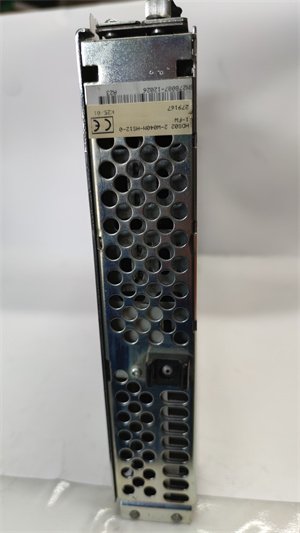

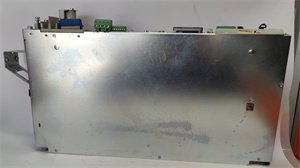

Rexroth HDS02.2-W040N-HS12-01-FW Drive Controller
Manufacturer:Rexroth
Product Number:Rexroth HDS02.2-W040N-HS12-01-FW
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Rexroth HDS02.2-W040N-HS12-01-FW is a high-performance drive controller designed for precise control of electric motors in various industrial applications. It is part of the HDS series by Bosch Rexroth Indramat, known for its robustness and reliability. This drive controller is suitable for both rotary and linear motors, providing precise and responsive control.
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | Rexroth HDS02.2-W040N-HS12-01-FW |
| Manufacturer | Bosch Rexroth |
| Product category | Drive Controller |
| Operating Voltage | 530-670 V AC |
| Rated Current | 40 A |
| Maximum Output Frequency | 1000 Hz |
| Communication Interface | SERCOS |
| Cooling Method | Built-in Internal Air Blower |
| Operating Temperature Range | 0°C to 45°C (nominal), up to 55°C (reduced performance) |
| Storage Temperature Range | -25°C to 70°C |
| Dimensions (W x H x D) | 50 mm x 498 mm x 308 mm |
| Weight | 6.5 kg |
| Certifications | UL, CE |
| I/O Channels | 2 x Analogue/Digital Inputs, 5 x Digital Inputs, 1 x Analogue Output, 2 x Relay Contact sets |
| Power Consumption | 20 W (control voltage) |
| Maximum Input Current | 37 A |
| Maximum Output Voltage | 500 V |
| IP Rating | IP10 |
Core Advantages and Technical Highlights
High Precision and Reliability:
The Rexroth HDS02.2-W040N-HS12-01-FW offers high-precision frequency control with ±0.1% accuracy, ensuring reliable performance in demanding industrial environments.
Robust Industrial Design:
The controller is designed to operate reliably within a wide temperature range (0°C to 45°C nominal, up to 55°C with reduced performance) and can withstand harsh industrial conditions.
Versatile Applications:
The Rexroth HDS02.2-W040N-HS12-01-FW is suitable for a wide range of applications, including manufacturing, energy, and material handling.
Easy Integration:
The controller features a SERCOS communication interface, ensuring seamless integration with existing systems.
Advanced Safety Features:
The controller includes safety features such as safe torque off (STO), ensuring enhanced safety in industrial environments.
Typical Application Scenarios
The Rexroth HDS02.2-W040N-HS12-01-FW is widely used in various industrial sectors:
Manufacturing: For precise control in assembly lines and machine tools.
Energy: For pump control in water treatment plants.
Material Handling: For conveyor speed control in automotive assembly lines.
Food and Beverage Production: For controlling motion equipment on production lines.
Installation Commissioning, and Maintenance Instructions
Installation Preparation:
Ensure the installation environment meets the specified temperature and humidity requirements. The controller should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (530-670 V AC) to avoid damage to the controller.
Maintenance Suggestions:
Regularly inspect the installation to ensure the controller is securely mounted and all connections are tight. Monitor the operational status of the controller to detect any signs of malfunction early. Conduct functional testing on the controller at least once a year to ensure optimal performance.
Service and Guarantee Commitment
Bosch Rexroth provides comprehensive support for the Rexroth HDS02.2-W040N-HS12-01-FW, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. Bosch Rexroth’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
