The PCD232A 3BHE02293R0101 module is an excitation machine control module provided by ABB, which plays a key role in the generator excitation system. The following is a detailed introduction about the module:

Basic parameters and specifications

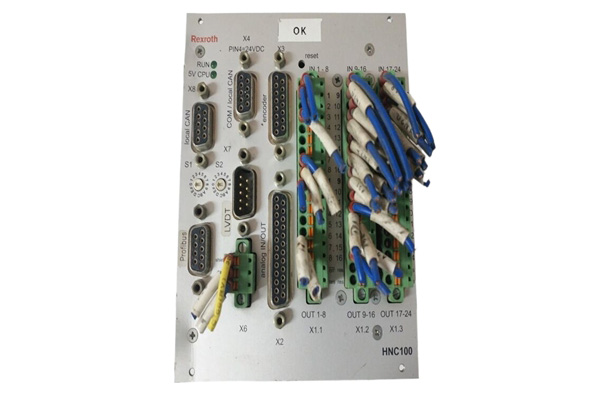

Model: SYHNC100-NIB-23/W-24-P-D-E23-A012

Order number: R900978416

Voltage: 24V

Current: 100-400A (please note that the current range may vary depending on the product batch or update)

Power: 220V was mentioned, but please note that the specific power may vary depending on the product batch or update

Dimensions: Net length 1400mm, net height 230mm, net width 820mm (specific dimensions may vary depending on product model or batch)

Weight: There are two types mentioned, 12kg and 2kg, which may be related to the product model or batch

Features and Functions

Modular redundancy structure: It has three identical sub circuits, each of which performs independent control to ensure high reliability and stability of the system. In addition, it also has a dedicated hardware/software architecture for “voting” on inputs and outputs, which can withstand harsh industrial environments.

Intelligent functions: The intelligent functions in the input and output modules can reduce the workload of the main processor. For example, the microprocessor of the input module will filter and repair the input and diagnose hardware faults on the module, while the microprocessor of the output module provides information for the voting of output data, checks the validity of the output status through the feedback loop voltage at the output terminal, and can diagnose field line problems.

On site installation and maintenance: Supports online module level installation and maintenance, does not interfere with on-site wiring, and daily maintenance can be carried out during system startup and operation without interrupting the control process.

High scalability: Supports multiple I/O modules and communication modules, can connect to various external devices such as Modbus hosts, Foxboro, and Honeywell distributed control systems (DCS), etc., improving the flexibility and scalability of the system. In addition, it can also support remote I/O modules up to 12 kilometers away from the host.

Customized configuration: With programmable control interfaces, it supports users to customize configuration and control according to specific application requirements.

Servo control: As a servo amplifier or inverter, it is mainly used to drive servo motors, achieve precise position, speed, and torque control, and is suitable for industrial automation applications that require high precision, high dynamic performance, and low noise, such as production lines, robot control, machine tools, etc.
