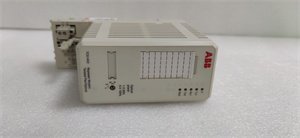

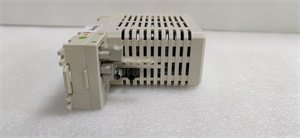

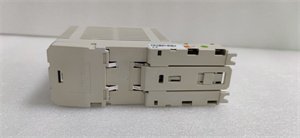

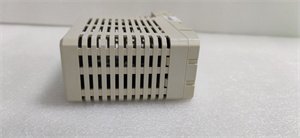

ABB TC514V2 3BSE013281R1 Temperature Controller

The ABB TC514V2 3BSE013281R1 is a sophisticated multi-loop temperature controller designed for precision thermal process control in industrial environments. Part of ABB’s Advant Controller 800 series, this versatile unit combines advanced control algorithms with flexible I/O configuration to handle complex temperature regulation tasks across various industrial applications.

With its universal input capability, the ABB TC514V2 3BSE013281R1 can interface with virtually any temperature sensor type, eliminating the need for multiple specialized controllers. Its compact design houses powerful control functionality typically found in larger systems, making it ideal for space-constrained installations where precise temperature management is critical.

Detailed Parameter Table

Core Advantages and Technical Highlights

Advanced control capabilities: The ABB TC514V2 3BSE013281R1 features adaptive PID control with auto-tuning functionality, ensuring optimal temperature regulation even for processes with variable dynamics. The integrated fuzzy logic capability handles non-linear processes effectively, reducing overshoot and improving stability.

Universal input flexibility: Supporting all major thermocouple types, RTDs, and standard analog signals, this controller simplifies system design and reduces spare parts inventory. Its automatic sensor type detection minimizes configuration errors during commissioning.

High-density design: Despite its compact footprint, the ABB TC514V2 3BSE013281R1 provides four control loops with independent setpoints and parameters. This multi-loop capability allows consolidation of control functions that would otherwise require multiple single-loop controllers.

Robust communication: The built-in Modbus RTU interface enables seamless integration with SCADA systems and other automation components. This facilitates remote monitoring, data logging, and integration into larger control strategies.

Typical Application Scenarios

The ABB TC514V2 3BSE013281R1 is widely employed in thermal process applications:

In plastic extrusion and injection molding, it precisely controls barrel zone temperatures, ensuring consistent melt quality and product dimensions. Its fast sampling rate maintains tight temperature bands critical for product quality.

For heat treatment furnaces in metal processing, the controller manages complex temperature profiles with ramp/soak capabilities. The multi-loop functionality allows simultaneous control of different furnace zones.

In food processing applications, the ABB TC514V2 3BSE013281R1 regulates cooking, pasteurization, and sterilization temperatures. Its universal inputs accommodate various sensor types used across different process stages.

Chemical reactor control benefits from the advanced PID algorithms that handle exothermic/endothermic reactions, while the redundant output configuration provides safety interlocks.

Installation Commissioning and Maintenance Instructions

Installation preparation: Prior to installing the ABB TC514V2 3BSE013281R1, ensure proper clearance for heat dissipation and accessibility for wiring. Verify power supply specifications and prepare appropriate sensor cables with proper shielding for noise immunity.

Maintenance suggestions: Regular calibration checks (annually recommended) maintain measurement accuracy. Monitor heat dissipation and ensure adequate ventilation around the unit. Keep firmware updated to benefit from performance enhancements and bug fixes. Document all parameter settings to facilitate quick recovery after power interruptions.

Service and Guarantee Commitment

ABB provides a standard 36-month warranty for the ABB TC514V2 3BSE013281R1, covering manufacturing defects and premature failures. Global technical support is available through ABB’s network of service centers, with options for on-site assistance in critical applications. The product’s modular design facilitates component-level repair, minimizing downtime. Comprehensive documentation including detailed application notes helps optimize implementation for specific process requirements.
