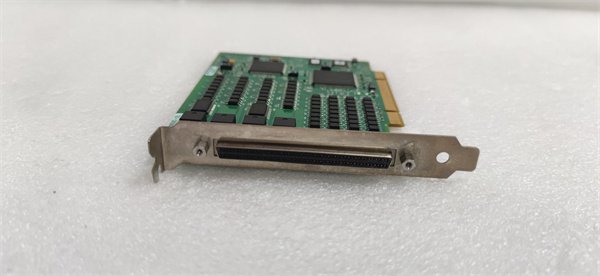

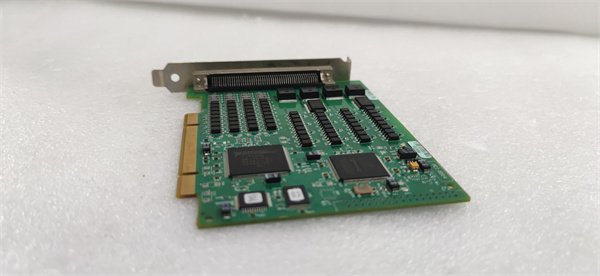

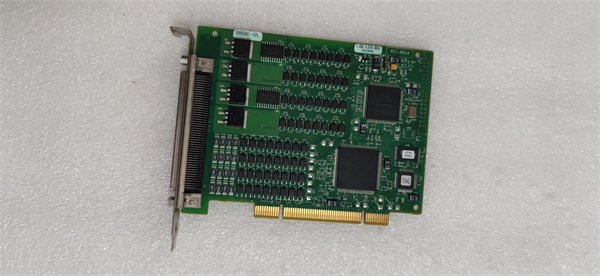

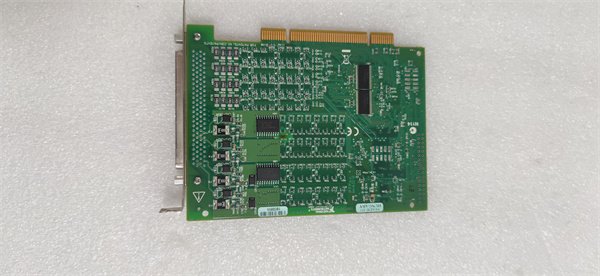

NI PCI-6514 Industrial Digital I/O Interface
Manufacturer:NI
Product Number:NI PCI-6514
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The NI PCI-6514 is a high-performance industrial digital I/O interface designed for applications in the power industry, petrochemical, and general automation. It features eight banks of isolated channels, providing 32 sink/source digital input channels and 32 source digital output channels. This device is equipped with programmable power-up states, allowing users to configure initial output states using software to ensure safe operation when connected to industrial actuators. In case of computer or application faults, the NI PCI-6514 can switch to a configurable safe output state using digital I/O watchdogs, ensuring detection and safe recovery from fault conditions. Additionally, it includes programmable input filters to eliminate glitches/spikes and provide debouncing for digital switches/relays.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | NI PCI-6514 |
| Manufacturer | National Instruments |
| Product Type | Industrial Digital I/O Interface |
| Digital Input Channels | 32 sink/source |
| Digital Output Channels | 32 source |
| Voltage Range | ±30 VDC |
| I/O Connector | 100-pin high-density SCSI connector |
| Power Requirements | +3.3 VDC (300 mA), +5 VDC (250 mA) |
| Dimensions | 5.54 in. × 4.47 in. |
| Weight | 2.5 oz. |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | -20 °C to 70 °C |
| Warranty | Three Year Warranty |
Isolated Channels: Eight banks of isolated channels ensure safe and reliable operation.
Programmable Power-Up States: Configure initial output states using software for safe operation.
Digital I/O Watchdogs: Switch to a safe output state in case of faults to ensure safe recovery.
Programmable Input Filters: Eliminate glitches and provide debouncing for digital switches/relays.
The NI PCI-6514 is ideal for applications in various industries, including:
Power Industry: For monitoring and control of power systems.
Petrochemical: For precise control and monitoring in petrochemical processes.
General Automation: For industrial automation tasks requiring reliable digital I/O.
Installation and Maintenance
Pre-installation preparation: Ensure you have the NI PCI-6514 device, a compatible PCI slot, and appropriate cables. Turn off the power and unplug the system. Install the device in the PCI slot and secure it with the provided screws. Connect the necessary cables and ensure all connections are secure.
Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the device using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the device in a dry place with relative humidity between 10% and 90% noncondensing.
Product Guarantee
The NI PCI-6514 is backed by a three-year warranty from National Instruments, ensuring the quality and reliability of the product.
