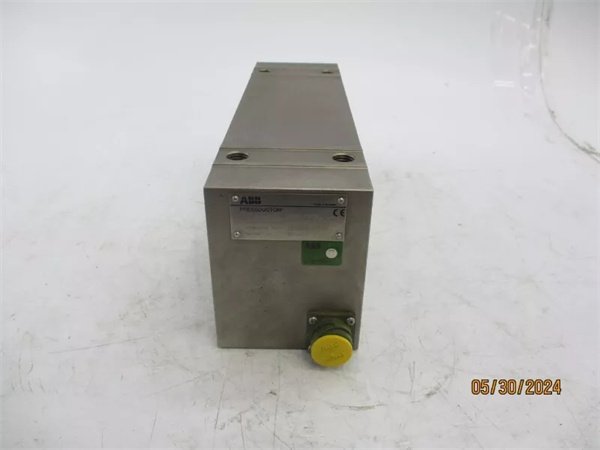

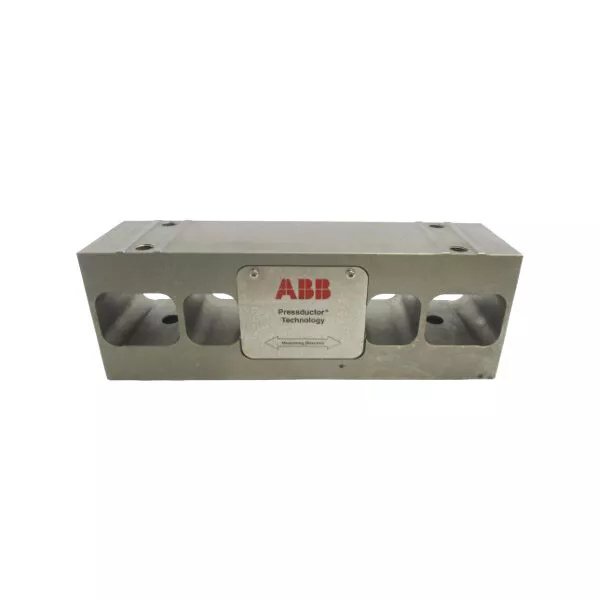

ABB PFTL101B 20KN 3BSE004203R1 Tension Load Cell

The ABB PFTL101B 20KN (part number: 3BSE004203R1) is a mechanical tension load cell designed for precise measurement of tensile forces in industrial applications. Belonging to ABB’s PFTL series, this load cell is engineered for durability, accuracy, and reliability in harsh environments, making it suitable for heavy-duty industries such as manufacturing, material handling, and process control.

Key Features

1. Design and Construction

   • Load Capacity: Rated for 20 kN (approximately 2,000 kg or 4,400 lbs), with a compact and robust design for direct tension measurement.
   • Material: Constructed from high-strength stainless steel, offering corrosion resistance and long-term stability in challenging conditions (e.g., moisture, dust, or chemical exposure).
   • Mechanical Interface: Features threaded ends (e.g., male/female threads) for easy integration into lifting systems, rigging, or tensioning mechanisms.

2. Technical Specifications

   Parameter	Description
   Model	PFTL101B
   Part Number	3BSE004203R1
   Product Type	Tension Load Cell (Axial Load Cell)
   Nominal Capacity	20 kN
   Accuracy Class	Typically meets 0.1% to 0.3% of rated load (depending on calibration).
   Output Signal	Analog (e.g., mV/V) or digital (via optional transmitters), compatible with ABB’s measurement systems.
   Environmental Rating	– Operating temperature: -30°C to +80°C,   – IP67/IP68 protection against dust and water ingress.
   Certifications	Compliance with international standards (e.g., OIML R60 for weighing applications, if applicable).

3. Functional Features

   • High Rigidity: Minimizes deformation under load for accurate and repeatable measurements.
   • Overload Protection: Designed to withstand temporary overloads (e.g., up to 150% of rated capacity) without permanent damage.
   • Hermetic Sealing: Prevents internal component degradation from environmental contaminants, ensuring long service life.

Common Applications

1. Lifting and Hoisting Systems

   • Monitoring cable tension in cranes, elevators, or overhead lifting equipment to prevent overloading and ensure safety.
   • Quality control in manufacturing lines for precise load measurement during assembly or testing.

2. Material Handling and Conveyors

   • Tension control in belt conveyors, wire rope systems, or textile production lines to maintain optimal process efficiency.
   • Preventing belt slippage or breakage by continuously measuring and adjusting tension.

3. Industrial Machinery and Equipment

   • Force measurement in presses, testing machines, or robotic systems for process optimization and fault detection.
   • Monitoring tension in wire/rope production, cable laying, or packaging equipment.

4. Renewable Energy and Infrastructure

   • Tension measurement in wind turbine mooring systems, solar tracker structures, or bridge stay cables for structural health monitoring.

Installation and Integration

1. Mechanical Installation

   • Mounted in-line with the load path (e.g., between a hook and cable, or within a tensioning mechanism).
   • Ensure proper alignment to avoid lateral or bending forces, which can introduce measurement errors.

2. Electrical Connection

   • Connects to a signal conditioner or data acquisition system (e.g., ABB’s PLCs or drives) via shielded cables to minimize electromagnetic interference (EMI).
   • Optional transmitters can convert the analog output to digital signals (e.g., 4–20 mA, Modbus RTU) for integration with SCADA or IoT platforms.

3. Calibration and Maintenance

   • Factory-calibrated for immediate use, with traceable calibration certificates available upon request.
   • Periodic recalibration recommended for critical applications to maintain accuracy over time.

Availability and Support

The PFTL101B 20KN 3BSE004203R1 is available through ABB’s authorized distributors or directly from ABB’s industrial automation division. Technical documentation, including datasheets, installation guides, and calibration reports, can be accessed via ABB’s official website. For custom configurations or application-specific support, contact ABB’s measurement and analytics team.
