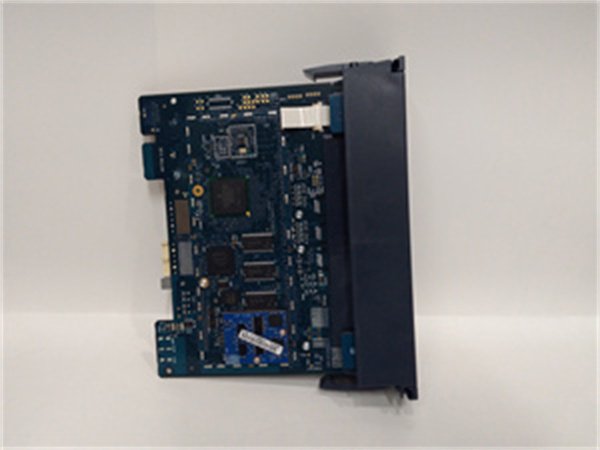

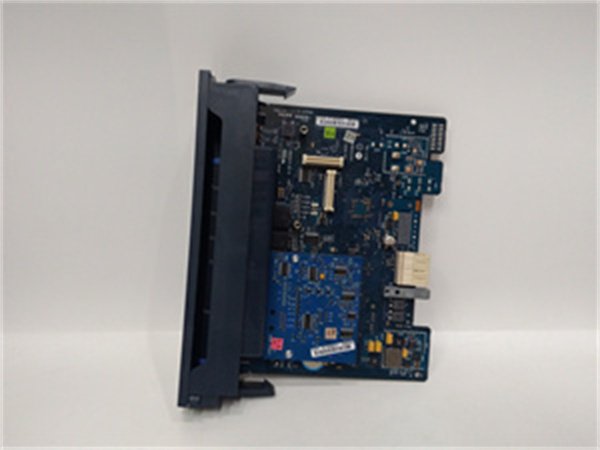

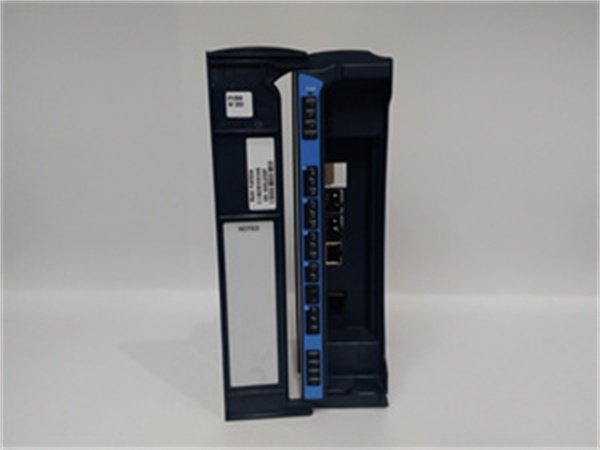

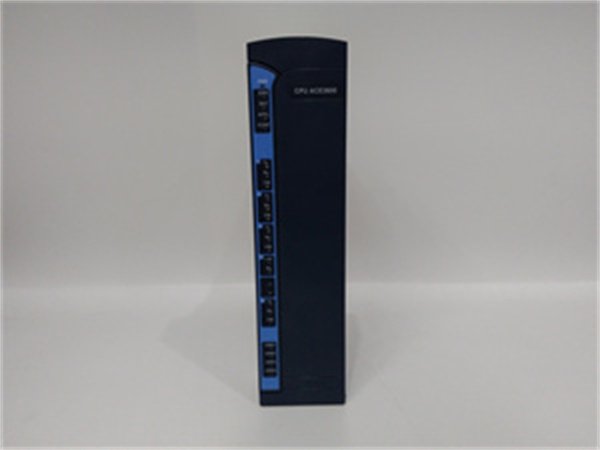

Motorola CPU3640 ACE3600 RTU CPU Module

The Motorola CPU3640 serves as the core processing unit of the Motorola ACE3600 Remote Telemetry Unit (RTU) series, engineered specifically for high-reliability remote monitoring and control in industrial environments. Built around the 32-bit Freescale PowerPC II MPC8270 microprocessor running at 200 MHz, the Motorola CPU3640 delivers exceptional data processing capabilities, enabling efficient execution of complex control algorithms and real-time data acquisition tasks critical for industrial operations.

Equipped with versatile communication interfaces and flexible expansion options, the Motorola CPU3640 seamlessly integrates with diverse field devices and supervisory systems. Its 10/100 Mbps Ethernet port and configurable RS232/RS485 serial ports ensure reliable connectivity, while two plug-in ports support customization with radio modems or additional communication modules. As the “brain” of the ACE3600 RTU, the Motorola CPU3640 plays a pivotal role in ensuring stable operation of critical infrastructure, facilitating timely data transmission and informed decision-making.

Detailed Parameter Table

Core Advantages and Technical Highlights

Powerful processing performance: The Motorola CPU3640 leverages the 200 MHz PowerPC II MPC8270 processor with built-in DMA and floating-point calculation support, delivering fast execution of control logic and real-time data processing. This ensures minimal latency in time-sensitive applications such as pipeline monitoring and power distribution. The generous memory configuration—including 16 MB Flash and 32 MB DRAM with dedicated user space—supports large application programs and extensive data storage requirements.

Flexible communication architecture: The Motorola CPU3640 features a comprehensive communication suite that adapts to diverse industrial network topologies. The 10/100 Mbps Ethernet port enables high-speed connection to SCADA systems, while the two configurable RS232/RS485 ports accommodate multi-drop sensor networks. The plug-in ports further enhance versatility, supporting radio modems for long-distance wireless communication or additional serial/Ethernet interfaces, making the Motorola CPU3640 suitable for both wired and wireless deployment scenarios.

Reliable harsh-environment operation: Designed to meet rigorous industrial standards, the Motorola CPU3640 operates within a wide temperature range of -40°C to 70°C and withstands 5%-95% non-condensing humidity. A 3V rechargeable lithium backup battery maintains the real-time clock (with max 2.5 sec/day drift) during power outages. Four diagnostic LEDs and port status indicators provide immediate visual feedback for quick troubleshooting, significantly improving system uptime and reducing maintenance costs.

Typical Application Scenarios

The Motorola CPU3640 is a trusted solution for critical infrastructure monitoring and control across multiple industries. In the oil and gas sector, it serves as the core of ACE3600 RTUs deployed along pipelines, processing data from pressure, flow, and temperature sensors to enable real-time leak detection and operational optimization—even in remote, unstaffed locations. Its robust communication capabilities ensure seamless data transmission to central control centers, minimizing the risk of environmental incidents and production downtime.

In water and wastewater management, the Motorola CPU3640 monitors pump stations, treatment facilities, and distribution networks. It processes inputs from level sensors, flow meters, and water quality analyzers, facilitating efficient resource allocation and regulatory compliance. For the power industry, the module integrates into distribution automation systems, enabling remote monitoring and control of substation equipment. By supporting real-time data exchange and remote operation, the Motorola CPU3640 reduces the need for costly on-site interventions and enhances the reliability of electrical grids.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing the Motorola CPU3640, ensure the ACE3600 chassis is powered off and properly grounded to prevent electrostatic discharge (ESD) damage. Verify the input voltage matches the 10.8-16V DC requirement and gather necessary tools: Phillips screwdriver, ESD wrist strap, and cable management supplies. Align the module with the chassis rails, gently insert until fully seated, and secure with front-panel screws. Connect communication cables—ensuring correct RS485 A/B wiring—and power cables, double-checking connections before powering on.

Maintenance suggestions: Regularly inspect the Motorola CPU3640’s diagnostic LEDs; steady green indicates normal operation, while red/flashing LEDs signal faults requiring attention. Replace the 3V backup battery every 2-3 years to maintain RTC accuracy. Keep the module and chassis free of dust and ensure adequate ventilation to prevent overheating. For communication issues, verify cable continuity and protocol settings (baud rate, parity, stop bits) match system configurations. Avoid hot-swapping the Motorola CPU3640 unless the chassis supports hot-swap functionality to prevent component damage.

Service and Guarantee Commitment

The Motorola CPU3640 is backed by Motorola’s industry-leading quality assurance. It comes with a 1-year warranty from the purchase date, covering manufacturing defects and faulty components. Our global technical support team provides 24/7 assistance via email and online portals, offering installation guidance, firmware updates, and troubleshooting for the Motorola CPU3640. We maintain strategically located spare parts warehouses to ensure prompt delivery of replacement modules, minimizing downtime for critical applications.

For extended support needs, customizable maintenance contracts are available, including scheduled inspections and priority technical service. Motorola is committed to delivering reliable products and exceptional customer care, ensuring the Motorola CPU3640 consistently meets the performance demands of your industrial automation systems for years to come.
