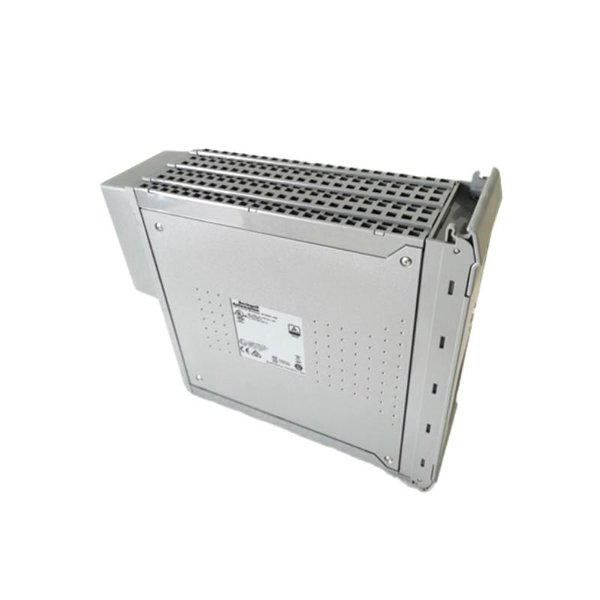

ICS Triplex T8310 Expander Processor Module
Item Number:T8310
Brand:ICS Triplex
Price:$1
Lead Time: In stock
Description:Expander Processor Module
Payment: T/T
Product Description
ICS Triplex T8310 Expander Processor Module is mainly installed in the two processor slots on the left of the expander chassis and is responsible for the interface connection between the expander chassis and the controller chassis. The module is based on the high-fault-tolerant HIFT TMR (High Integrity Fault Tolerant Triple Modular Redundant) architecture design.
Function & Features
- HIFT TMR technology: three independent channels run in parallel, and a single channel failure does not affect the overall function.
- 250 Mbps transmission rate: T8310 connects to the expansion interface module through the TC-301 hot link cable and the T8312 adapter unit.
|
Indicator Type |
LED State |
Visual Representation |
Status Meaning |
|
Health Status (3 LEDs) |
Steady Green |
● (Green) |
Channel operating normally |
|
Flashing Red |
✱ (Red) |
Fault detected in corresponding channel |
|
|
Active/Standby Mode |
Green (Active) |
● (Green) |
Module in active operational mode |
|
Steady Green (Standby) |
● (Green) |
Module in standby ready state |
|
|
TxRx Communication |
Green |
● (Green) |
Data receiving in progress |
|
Red |
● (Red) |
Data transmitting in progress |
|
|
Amber |
● (Amber) |
Simultaneous transmit/receive activity |
|
|
Off |
○ (Off) |
No communication activity or failure |
Specifications
|
Parameter |
Details |
| Model | T8310 |
|
Backplane (IMB) Supply |
20 Vdc to 32 Vdc |
|
Field Supply |
N/A |
|
Power Dissipation |
45 W (Backplane Supply) |
|
Module Location |
T8300 Expander Processor Slot |
|
50 V Basic Insulation, Module to Backplane Supply |
|
|
Fusing |
Not User Serviceable |
|
Expander Comms Max Distance |
- Using TC-301 copper cable: 30 m - Using T8314 Fibre TX/RX Units: 10 km |
