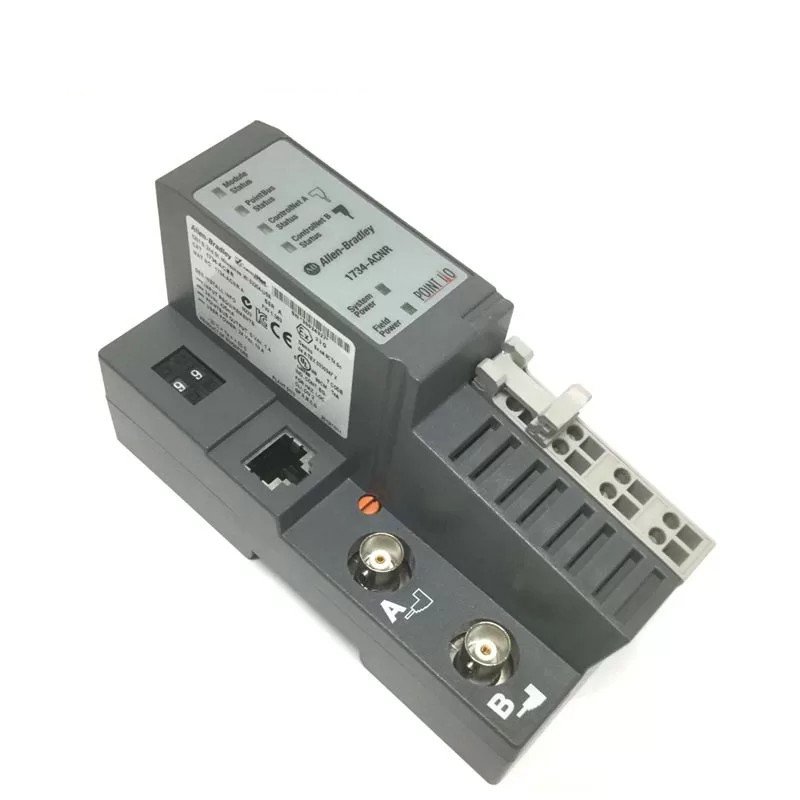

The Allen-Bradley 1734-ACNR is a versatile POINT I/O ControlNet Network Adapter, designed to integrate seamlessly with various industrial automation systems. It acts as a bridge between the ControlNet network and multiple I/O modules, facilitating efficient data exchange and control.

Key Features

• ControlNet Connectivity: Provides a direct link to the ControlNet network for real-time communication with other devices.
• I/O Expansion: Supports a broad range of POINT I/O modules, enhancing system input and output capabilities.
• Compact Design: Its small form factor ensures easy installation in confined spaces.
• Rugged Construction: Built to endure harsh industrial environments.
• Easy Configuration: Simple to set up and integrate into existing automation systems.

Technical Specifications

• Voltage: 24 VDC
• Inrush Current: 6 amps for 10 milliseconds
• Power Requirements: 425 milliamps
• Number of Modules: Connect up to 63 POINT I/O modules to a single ControlNet node.
• Connections: Supports up to 25 direct and 5 rack connections.

Applications

The 1734-ACNR is ideal for various industries, including:

• Manufacturing
• Automotive
• Packaging
• Material Handling
• Process Control
