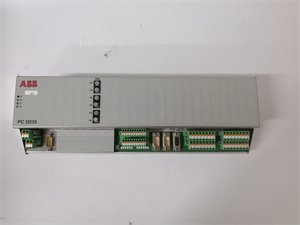

ABB 3BHE032025R0101 PCD235A101 Servo Drive Controller
Manufacturer:ABB
Product Number:3BHE032025R0101 PCD235A101
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB 3BHE032025R0101 and PCD235A101 are advanced servo drive modules designed for industrial motion control, belonging to ABB’s ACOPOSdrive family. Engineered for precision and reliability, these modules are ideal for applications requiring high-speed operation and torque management, such as robotics, CNC machining, and packaging systems. The 3BHE032025R0101 serves as a compact servo drive controller with integrated power supply, while the PCD235A101 acts as a modular I/O terminal module, enabling seamless integration with automation systems. Built with robust components, they support real-time communication and dynamic torque adjustment (0–15 Nm) for demanding industrial environments.
Product Specifications
| Parameter | 3BHE032025R0101 | PCD235A101 |
|---|---|---|
| Type | Servo Drive Controller | Modular I/O Terminal |
| Input Voltage | 48–600 V AC (3-phase) | 24 V DC (±10%) |
| Output Voltage | 0–400 V AC | N/A (signal conditioning) |
| Output Current | 15 A (continuous) | 5 A (per channel) |
| Power Rating | 5.5 kW | N/A |
| Control Type | Vector control (inductive/motor) | Digital/analog I/O |
| Communication | EtherCAT, CANopen | Profibus DP, Modbus RTU |
| Dimensions (W×H×D) | 150 × 200 × 120 mm | 35 × 100 × 50 mm |
| Weight | 3.2 kg | 0.3 kg |
| Protection Class | IP20 (optional IP65 with enclosure) | IP20 |
Advantages and Features
- Compact Design: Space-saving form factor (30% smaller than previous generations) for modular machine builds.
- High Precision: 16-bit encoder resolution and torque ripple reduction (≤5%) for smooth motion in high-speed applications (up to 8,000 RPM).
- Energy Efficiency: Regenerative braking (95% efficiency) and sleep mode (≤1 W standby) reduce energy consumption.
- Flexible I/O: PCD235A101 supports 8 digital inputs/outputs (24 V DC) and 2 analog inputs (0–10 V), enabling direct sensor/actuator integration.
Application Areas and Use Cases
Industries: Automotive manufacturing (robotics), semiconductor processing (precision handling), and food packaging (high-speed sorting).
Use Case: A German automotive plant integrated the 3BHE032025R0101 with PCD235A101 for robotic welding arms. The system achieved 99.8% positional accuracy (±0.05 mm) and reduced cycle time by 18% compared to legacy systems.
Competitor Comparison
| Feature | ABB 3BHE032025R0101 + PCD235A101 | Competitor (e.g., Siemens SINAMICS S120) |
|---|---|---|
| Response Time | 0.8 ms (torque update) | 1.2 ms |
| Torque Density | 4.7 Nm/kg | 3.5 Nm/kg |
| I/O Channels | 8 digital + 2 analog (expandable) | 6 digital (fixed) |
| Mounting Space | 30% smaller | Standard footprint |
Selection Recommendations
- System Integration: Pair with ABB’s ACOPOS 1010/1020 drives for full compatibility (e.g., shared DC bus architecture).
- I/O Requirements: Use PCD235A101 for basic sensor/actuator control; upgrade to PCD244A101 (previous model) for advanced analog processing.
- Environment: Opt for IP65 enclosures (optional for 3BHE032025R0101) in dusty/wet environments (e.g., food processing).
Precautions
- Wiring: Use shielded cables for encoder signals (≤100 m length) to prevent noise interference.
- Cooling: Ensure adequate airflow (2 m/s minimum) for continuous 15 A operation; avoid ambient temperatures >50°C.
- Software: Configure via ABB’s DriveStudio (v4.5+) for parameter optimization (e.g., tuning PID loops for specific loads).
