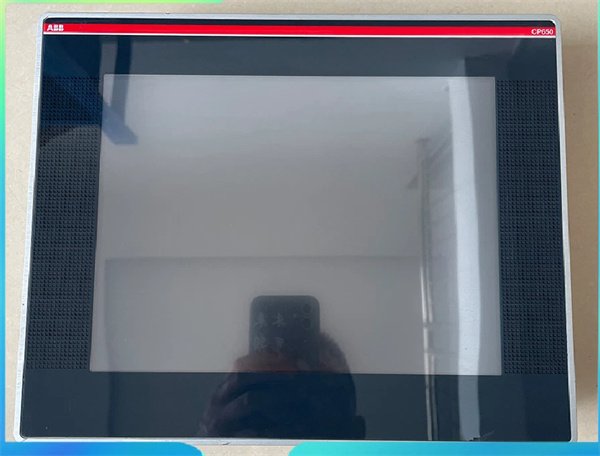

ABB CP650 1SAP550100R0001 Industrial HMI Touchscreen Control Panel

The ABB CP650 1SAP550100R0001 is a high-performance 10.4-inch color TFT touchscreen control panel designed for industrial automation applications. It serves as a human-machine interface (HMI) device, providing an intuitive and user-friendly interface for monitoring and controlling industrial processes. The CP650 features a high-resolution display (800 x 600 pixels) with 64K colors, ensuring clear visibility and precise control. It supports multiple communication protocols, including RS-232/422/485, Ethernet, CANopen, Profibus DP, and Modbus TCP, making it highly versatile and compatible with various industrial systems.

Detailed Parameter Table

Core Advantages and Technical Highlights

High-Resolution Display: The CP650 features a 10.4-inch TFT LCD with a resolution of 800 x 600 pixels and 64K colors, providing clear and detailed visual feedback for operators.

Versatile Communication Options: The panel supports a wide range of communication protocols, enabling seamless integration with PLCs, SCADA systems, and other industrial devices.

Robust Industrial Design: The CP650 is designed for harsh industrial environments, with an IP65 protection rating and an operating temperature range of -20°C to +50°C. Its compact size and lightweight construction (1.5 kg) make it easy to install and integrate into control panels.

User-Friendly Interface: The touchscreen interface is intuitive and easy to navigate, with customizable menus and buttons to suit specific application needs. The panel also includes multiple serial and Ethernet ports for flexible connectivity.

Advanced Diagnostics: Built-in diagnostic functions monitor communication link status and report faults via indicator lights or software logs, ensuring quick identification and resolution of issues.

Typical Application Scenarios

The ABB CP650 1SAP550100R0001 is widely used in various industrial sectors, including manufacturing, power generation, water and wastewater treatment, and HVAC systems. It is ideal for applications requiring precise control and monitoring of industrial processes, such as temperature, pressure, and flow control. The panel’s ability to operate in a wide temperature range and its compact design make it suitable for both indoor and outdoor installations.

Installation Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ABB CP650 1SAP550100R0001, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +50°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail or panel mount for secure installation.

Maintenance Suggestions

To maintain the ABB CP650 1SAP550100R0001, perform regular inspections of the panel and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance. Regularly update the firmware to benefit from the latest enhancements and security features.

Service and Guarantee Commitment

The ABB CP650 1SAP550100R0001 is backed by ABB’s commitment to quality and customer satisfaction. ABB offers a comprehensive warranty that covers manufacturing defects and ensures the product meets the highest standards of reliability. In addition to the warranty, ABB provides extensive after-sales support, including technical assistance and spare parts availability.
