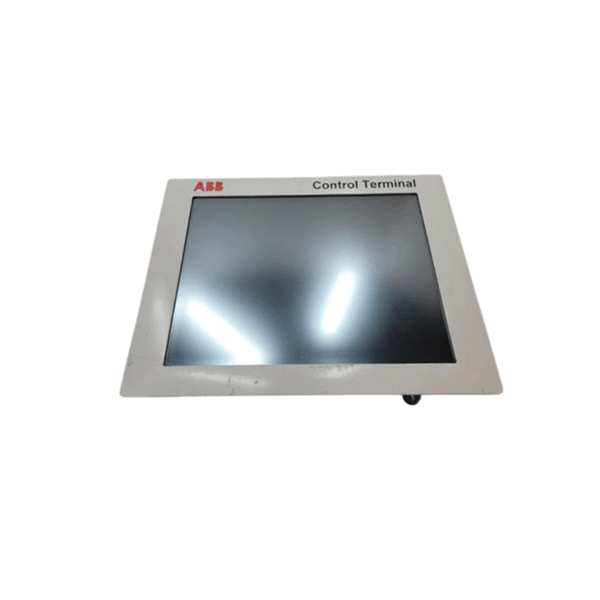

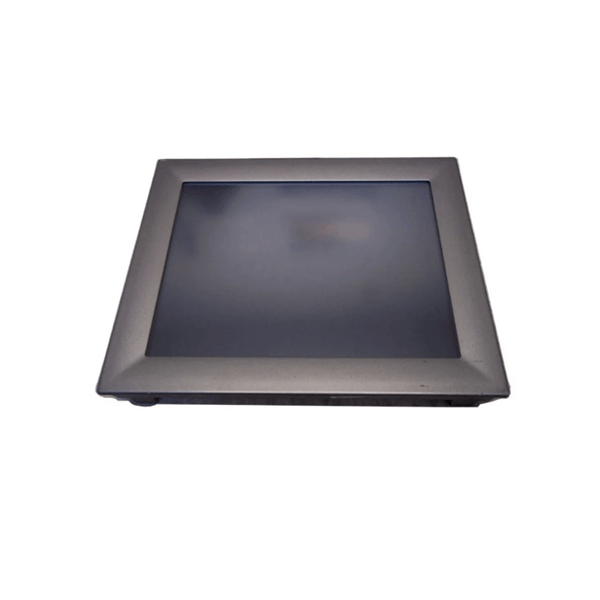

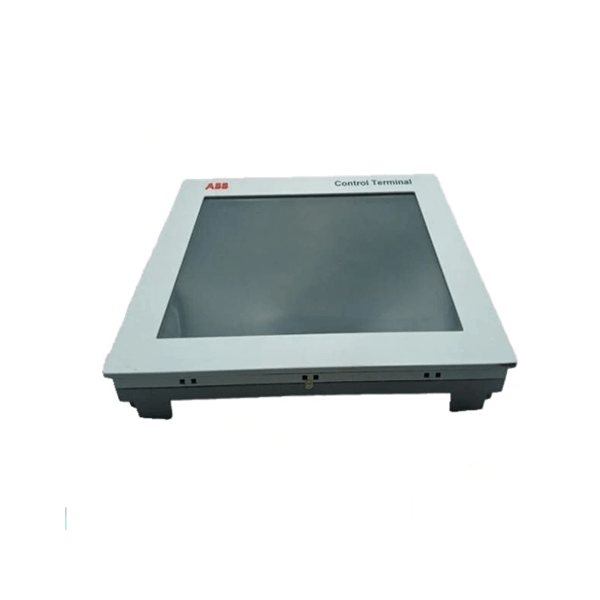

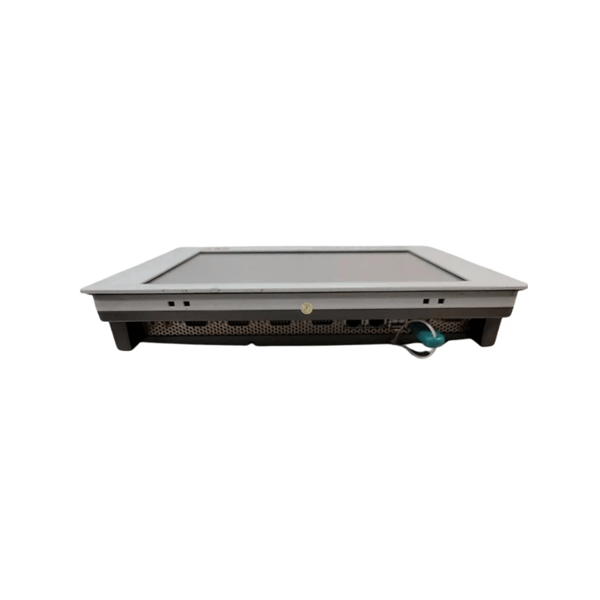

ABB TPC-1570H 3BHE031734R1112 Driver HD display

The ABB TPC-1570H 3BHE031734R1112 is an industrial-grade touchscreen control panel designed for high-performance Human-Machine Interface (HMI) applications within demanding automation environments. As part of ABB’s TPC series, this rugged panel computer combines a fanless design with a bright 15-inch TFT LCD touchscreen, offering reliable and intuitive interaction between operators and industrial control systems. Built for longevity and robust operation, the TPC-1570H is widely integrated into process control, factory automation, and power generation systems, particularly within ABB’s DCS platforms such as Symphony Plus and Freelance.

Product Advantages

• Rugged Industrial Design: Resistant to vibration, shock, and temperature fluctuations; ideal for harsh environments.

• Fanless Cooling System: Reduces mechanical failure, increases lifespan, and supports silent operation.

• High-Resolution Touchscreen: 15-inch TFT LCD with responsive touch capability for precise operator control.

• Versatile Connectivity: Multiple I/O ports including USB, Ethernet, RS-232/422/485 for wide compatibility.

• ABB System Integration: Seamless operation with ABB’s automation solutions such as AC800M, Freelance, and Symphony Plus.

• Mounting Flexibility: Panel-mounted design supports easy and stable installation in control cabinets.

• Energy Efficient: Low power consumption with high operational reliability.

• IP65 Front Protection: Ensures protection against dust and water, suitable for washdown or outdoor applications.

Technical Specifications

Applications

• Power Plants: Used in control rooms and field operator panels for turbine, generator, and substation monitoring.

• Process Automation: Ideal for chemical, oil & gas, and pharmaceutical facilities requiring visual process interfaces.

• Manufacturing: Deployed on factory floors for machine-level control, diagnostics, and maintenance access.

• DCS/SCADA Systems: Integrated into ABB systems such as Symphony Plus and Freelance for real-time operator visualization.

• Marine and Transportation: Used in engine rooms and navigation systems where vibration resistance is crucial.

• HVAC and Building Management: Monitors and controls building automation infrastructure.

Installation Instructions

1. Panel Cutout: Ensure a cutout matching the device’s panel dimensions (refer to datasheet for exact values).

2. Mounting: Use the panel mounting kit provided; insert the panel into the cutout and fasten using supplied clamps.

3. Power Connection: Connect to a stable 24 VDC power supply.

4. I/O Wiring: Connect Ethernet, serial ports, and USB as required for communication with PLCs, controllers, or sensors.

5. OS Setup: Pre-installed operating system should be configured to match your control architecture.

6. Commissioning: Power on the system and conduct functional tests via ABB’s control software tools.

Compatible / Associated Models

• AC800M Controller Series

• Freelance 800F Control System

• PM564-T PLC

• CP600 Series HMIs

• PM861AK02 Controller

• AC500-eCo Series
