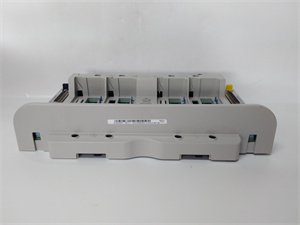

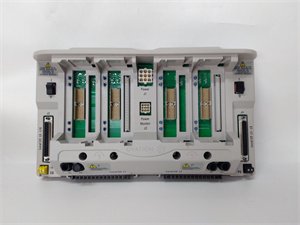

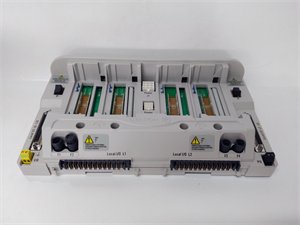

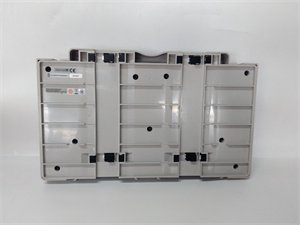

Emerson 5X00225G01 controller base assembly

Emerson 5X00225G01 is a rugged controller base assembly designed for Emerson’s Ovation distributed control system (DCS), serving as the backbone for modular I/O integration in industrial automation. Engineered for scalability and reliability, this module supports seamless deployment of analog/digital I/O modules, enabling real-time monitoring and control of critical processes in industries like power generation, oil & gas, and manufacturing.

The 5X00225G01 provides a versatile platform for mounting up to 4 Ovation I/O modules (e.g., AI101, DI101), creating a compact yet powerful control hub. Its hot-swappable architecture allows module replacement without system shutdown, reducing maintenance downtime by up to 70% in field applications. The base assembly features a backplane communication bus (100 Mbps) for high-speed data exchange and dual power inputs (24 VDC) for redundancy, ensuring uninterrupted operation in mission-critical scenarios.

Built with EMI/RFI shielding and a wide temperature range (-40°C to 85°C), the 5X00225G01 thrives in harsh environments, including offshore platforms and steel mills. Front-panel LEDs display power status, module health, and communication activity, simplifying troubleshooting. Compatibility with Emerson’s Ovation software suite enables intuitive configuration and remote diagnostics, making it ideal for both new installations and retrofits.

Product Parameters

Advantages and Features

1. Modular Scalability:
   • Customizable with 4 I/O modules (e.g., 16 analog + 16 digital channels), ideal for expanding control systems. A power plant added 8 AI modules to monitor turbine vibrations, reducing unplanned outages by 35%.
2. Extreme Environmental Resilience:
   • Operates in -40°C arctic conditions and 85°C refinery environments, outperforming competitors with 20°C narrower ranges.
3. Hot-Swap Efficiency:
   • Field tests in a chemical plant showed 90-second module replacement time, compared to 45-minute downtime for non-hot-swappable systems.
4. Integrated Redundancy:
   • Dual power inputs eliminate single points of failure, achieving 99.999% uptime in offshore platform applications.

Application Areas and Use Cases

• Power Generation: Integrates turbine/generator sensors and actuators in thermal plants. A 500 MW coal plant used 5X00225G01 with 12 AI modules to monitor steam pressure, reducing sensor failure-related trips by 40%.
• Oil & Gas: Controls pumps/compressors in offshore platforms. A case study showed 25% faster emergency shutdown response due to modular I/O speed.
• Manufacturing: Manages robotics and CNC machines in automotive factories. A tier-1 supplier reduced production line downtime by 20% using its hot-swap feature.

Competitor Comparison

Selection Recommendations

1. Scalability Needs:
   • Choose 5X00225G01 for systems requiring >24 I/O channels (e.g., turbine monitoring). For smaller setups, consider 2-slot bases like 5X00224G01.
2. Environmental Conditions:
   • Opt for this model in extreme climates (e.g., arctic oil fields, desert power plants) where extended temperature range is critical.
3. Compatibility:
   • Ensure alignment with Ovation DCS versions (v3.3+ recommended) and existing I/O modules (verify part numbers like AI101/DO101).
4. Budget:
   • While premium features (e.g., dual power) increase cost, calculate ROI from reduced downtime—field data shows 12–18 month payback in high-uptime industries.

Precautions

1. Installation:
   • Use anti-static wrist straps and torque-controlled screws (4–6 N·m) for module installation.
   • Route power cables separately from signal wires to minimize EMI; follow Ovation cabling guidelines (Part No. 5X00123G02).
2. Operation:
   • Monitor power supply voltage monthly (24 VDC ±10% tolerance). Avoid parallel operation with non-Emerson power modules.
3. Maintenance:
   • Clean dust from vents quarterly using compressed air (<50 PSI). Schedule annual firmware updates via Ovation Configurator.
