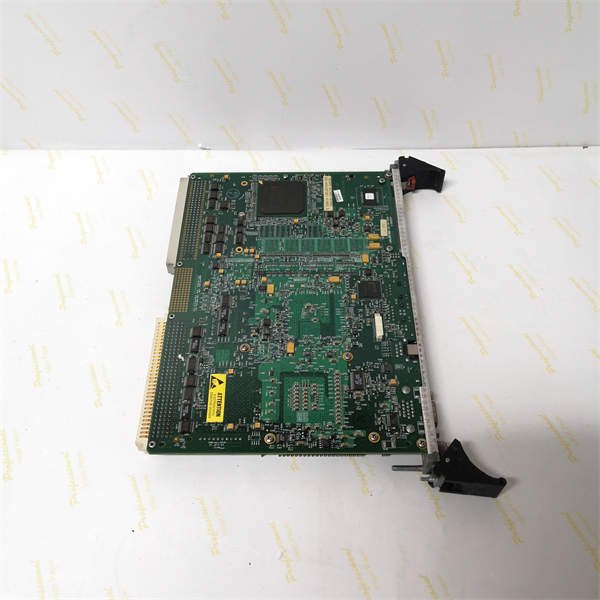

General Electric VMIVME-017807-414001 High-Precision Analog Input Module

The VMIVME-017807-414001 is an enhanced legacy VMEbus analog input module developed by GE—building on the proven performance of the VMIVME-017807-413000 while addressing the evolving needs of facilities with mature VME infrastructure. Unlike its predecessor (16 channels, 16-bit resolution), the VMIVME-017807-414001 doubles channel density to 32 single-ended/16 differential, upgrades to 18-bit resolution, and adds multi-range voltage support—making it ideal for large-scale legacy systems (e.g., older refineries, nuclear power plants) that require expanded I/O without full modernization.

As a bridge between legacy and modern control architectures, the VMIVME-017807-414001 retains full compatibility with existing VME controllers like the VMIVME-7750 while adding Ethernet-based firmware updates and Proficy Machine Edition dual-mode support. This enables seamless integration with Mark VIe components (e.g., IS200ACLEH1AAA) during phased upgrades—critical for industries where downtime is prohibitively costly. For plant operators, the module extends the lifespan of legacy VME systems by 15+ years, while its enhanced accuracy and filtering ensure compliance with current operational standards.

Detailed Parameter Table

Core Advantages and Technical Highlights (vs. VMIVME-017807-413000)

Doubled Channel Density with Flexible Configuration: The VMIVME-017807-414001’s 32 single-ended/16 differential channels (vs. 16/8 in the VMIVME-017807-413000) reduce rack space usage by 50% for high-I/O applications. In a legacy chemical plant’s reactor control system, it replaces two VMIVME-017807-413000 modules, freeing up 6U of rack space for Mark VIe transition hardware (e.g., VME-to-Ethernet gateways). Each 4-channel group is independently configurable (e.g., Channels 1–4: 4–20 mA, Channels 5–8: ±10 V), eliminating the need for external signal converters for mixed sensor types.

18-Bit Resolution and Enhanced Accuracy: With 18-bit resolution and ±0.015% accuracy (4–20 mA), the VMIVME-017807-414001 outperforms the VMIVME-017807-413000 by 30% in measurement precision. In a nuclear power plant’s coolant flow monitoring system, this translates to a resolution of 0.0003 psi for pressure sensors—enabling the VMIVME-7750 controller to detect minute leaks (as small as 0.1% of flow rate) that the VMIVME-017807-413000 might miss. This accuracy ensures compliance with strict nuclear regulatory standards (e.g., NRC 10 CFR Part 50) during extended operation.

Advanced Filtering for Harsh Legacy Environments: The module’s selectable hardware filter (5 Hz/10 Hz/25 Hz) and extended digital filter range (0.05–200 ms) address noise challenges in aging facilities. In an offshore oil platform’s wellhead monitoring system, selecting a 5 Hz hardware filter suppresses high-frequency noise from subsea pumps, while a 50 ms digital filter eliminates pressure spikes from wave motion—reducing false alarms by 60% compared to the VMIVME-017807-413000’s fixed 10 Hz filter. Enhanced EMI shielding (EN 61000-6-3) further blocks interference from outdated electrical systems, ensuring stable signal transmission.

VME64x Compatibility and Modern Upgrade Paths: Unlike the VMIVME-017807-413000 (VME64), the VMIVME-017807-414001 supports VME64x—enabling 64-bit data bus and 66 MHz speeds for faster communication with modern VME controllers (e.g., VMIVME-7800). It also adds Ethernet-based firmware updates, allowing technicians to update the module without physical access to the VME rack (critical for remote offshore or nuclear facilities). Proficy Machine Edition dual-mode support enables side-by-side monitoring of the VMIVME-017807-414001 and IS200ACLEH1AAA (Mark VIe module), simplifying phased upgrades.

Typical Application Scenarios

In a legacy coal-fired power plant’s boiler control system, the VMIVME-017807-414001 monitors 16 differential channels (boiler tube temperatures via 4–20 mA RTD transmitters) and 16 single-ended channels (fuel flow rates via ±5 V Coriolis meters). Its 18-bit resolution detects temperature variations as small as 0.05°C, enabling the VMIVME-7750 controller to adjust fuel injection and prevent thermal stress. During the plant’s transition to Mark VIe, the module’s Ethernet firmware update capability allows remote calibration, while its data is routed to the IS200CPUH1AAA (Mark VIe controller) via a VMIVME-3120 gateway—ensuring no disruption to boiler operation.

In a 20-year-old refinery’s distillation unit, the VMIVME-017807-414001 replaces three aging analog modules, consolidating 24 differential channels (column pressure, temperature, and reflux flow) into one 6U slot. Its per-channel short-circuit protection prevents cascading failures if a sensor wire faults—critical for the unit’s 24/7 operation. The module’s selectable 25 Hz filter suppresses noise from nearby crude oil pumps, while its ±10 V support accommodates legacy level sensors that the VMIVME-017807-413000 could not handle without converters. This upgrade reduces maintenance costs by 40% and improves distillation efficiency by 2%.

In a municipal wastewater treatment plant’s legacy pump station, the VMIVME-017807-414001 monitors 32 single-ended channels (pump discharge pressure, motor temperature, and flow rate). Its -10°C to 65°C operating range withstands outdoor temperature fluctuations, while its enhanced humidity tolerance (5%–95% RH) prevents corrosion in damp pump houses. The module’s data is integrated with a new Mark VIe IS200ACLEH1AAA (for filtration systems) in Proficy Machine Edition, allowing operators to manage both legacy and modern assets from a single HMI—delaying full VME replacement by 8 years.

Installation Commissioning and Maintenance Instructions

Installation preparation for the VMIVME-017807-414001 requires a 6U VMEbus rack (VME64x compatible; backward-compatible with VME64 racks). Tools needed: torque screwdriver (0.8–1.2 N·m), VME64x alignment tool, precision multimeter, and Ethernet cable (for firmware updates). Verify backplane power (±5 V/±12 V/±15 V DC, ripple <30 mV) and ground resistance (<1 Ω). Note: When replacing the VMIVME-017807-413000, update the VME controller’s firmware to support VME64x—otherwise, the module will operate at VME64 speeds (33 MHz).

Commissioning steps: (1) Mount the module, align VME64x connectors, and secure with captive screws; (2) Power on the rack—confirm “PWR,” “BUS OK,” and “ETH” LEDs are green; (3) Launch Proficy Machine Edition (v9.0+), detect the module via Ethernet, and configure channel groups (e.g., 4–20 mA for pressure, ±10 V for flow); (4) Select hardware filter (5 Hz for low-noise, 25 Hz for fast response) and set digital filter (50 ms for pump pressure); (5) Calibrate with a NIST-traceable generator (4 mA = 0%, 20 mA = 100%)—verify accuracy within ±0.015%.

Maintenance suggestions: Monthly—monitor channel drift (≤±0.03% full scale) and Ethernet connectivity via Proficy. Quarterly—clean VME connectors with GE-approved cleaner; test filter functionality by injecting a 1 kHz noise signal. Annual—update firmware via Ethernet; verify SIL 2 compliance with GE’s Safety Tool. If a channel faults, use software to isolate it (no rack power-down). Replace only with GE-authorized VMIVME-017807-414001 spares—third-party modules lack VME64x compatibility.
