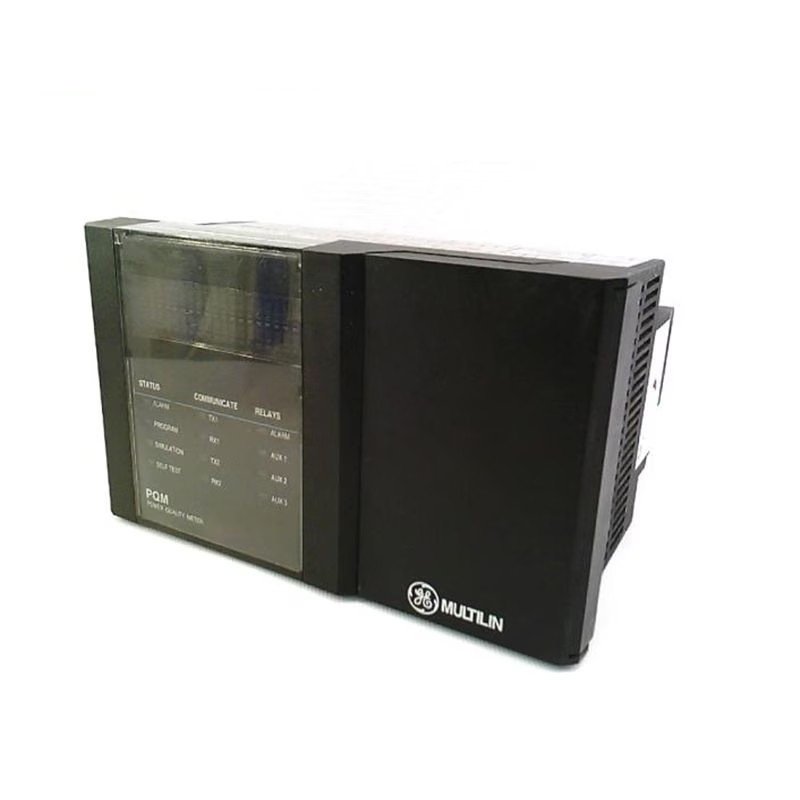

GE Fanuc PQM-T20-C-A Power Quality Meter

The GE Fanuc PQM-T20-C-A is a versatile power quality meter designed to monitor, analyze, and ensure the proper functioning of electrical systems. With its precise measurement capabilities, the meter provides real-time insights into power quality, including voltage, current, power factors, and harmonics. It is engineered for industrial applications where monitoring and data logging are critical for system optimization and fault detection.

Technical Specifications

• Product Type: Power Quality Monitoring Module
• Manufacturer: GE Fanuc
• Voltage Input: 90-600V (L-L), 50/60Hz
• Current Input: 0.1-20A, 50/60Hz
• Measurement Parameters:
  • Voltage
  • Current
  • Power Factor
  • Frequency
  • Active Power
  • Reactive Power
  • Apparent Power
  • Energy (kWh)
  • Total Harmonic Distortion (THD)
  • Total Demand Distortion (TDD)
  • Unbalance
• Accuracy: 0.5S
• Communication Interface:
  • RS485 Modbus RTU
  • Modbus TCP/IP
• Display: Backlit LCD display for clear visibility
• Dimensions: 96 mm x 96 mm x 75 mm
• Weight: 3.24 lbs
• Power Consumption: 20 VA
• Analog Input: 4 to 20 mA
• Data Logging: Logs up to 10,000 events
• Voltage Compatibility: 20 to 60VDC, 20 to 48VAC
• Frequency: 50Hz and 60Hz
• Harmonic Analysis: Up to the 50th harmonic
